VTS541KA363CA - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki, CARB (SN: 313000000 - 313999999) (2013)

36" Vantage S-Series Stand-On Mower, Kawasaki, CARB

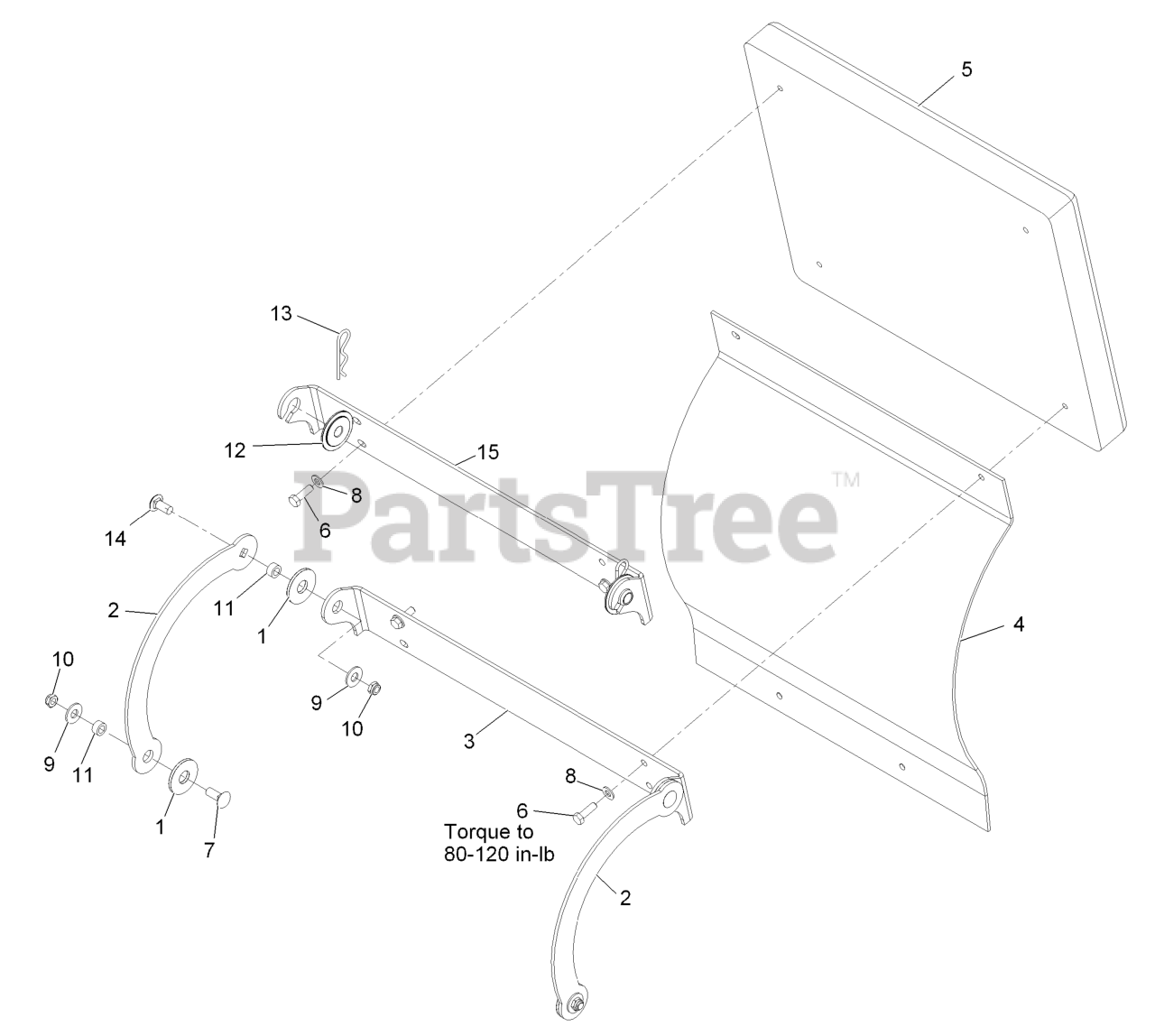

VTS541KA363CA - Exmark 36" Vantage S-Series Stand-On Mower, Kawasaki, CARB (SN: 313000000 - 313999999) (2013) > Parts Diagrams (24) > Cushion Assembly No. 116-1803

  • Title
114-0463

1

Washer-Friction, Composite

Part# 114-0463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

114-1915-03

2

Link-Pad

Part# 114-1915-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.00

116-2061-03

3

Hinge-Pad

Part# 116-2061-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.37

116-3406

4

Shield-Rear

Part# 116-3406 (Superseded to 126-0362)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.48

116-1790

5

Pad,Grey Cushion

Part# 116-1790

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $211.32

116-0648

6

Screw-Hh 5/16-18 X 1 W/Patch

Part# 116-0648

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

3231-2

7

Bolt-Carriage 3/8-16 X 1

Part# 3231-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.50

3256-23

8

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

3256-4

9

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

3296-59

10

Nut-Nyloc 3/8-16 Thin

Part# 3296-59 (Superseded to 121-4600)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

111044

11

Bushing

Part# 111044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

116-2886

12

Slide-Bushing

Part# 116-2886

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.77

3290-355

13

Pin-Hair

Part# 3290-355

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.53

3231-27

14

Bolt-Carriage 3/8-16 X 7/8

Part# 3231-27

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.63

116-2757-03

15

Hinge-Pad

Part# 116-2757-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.72
