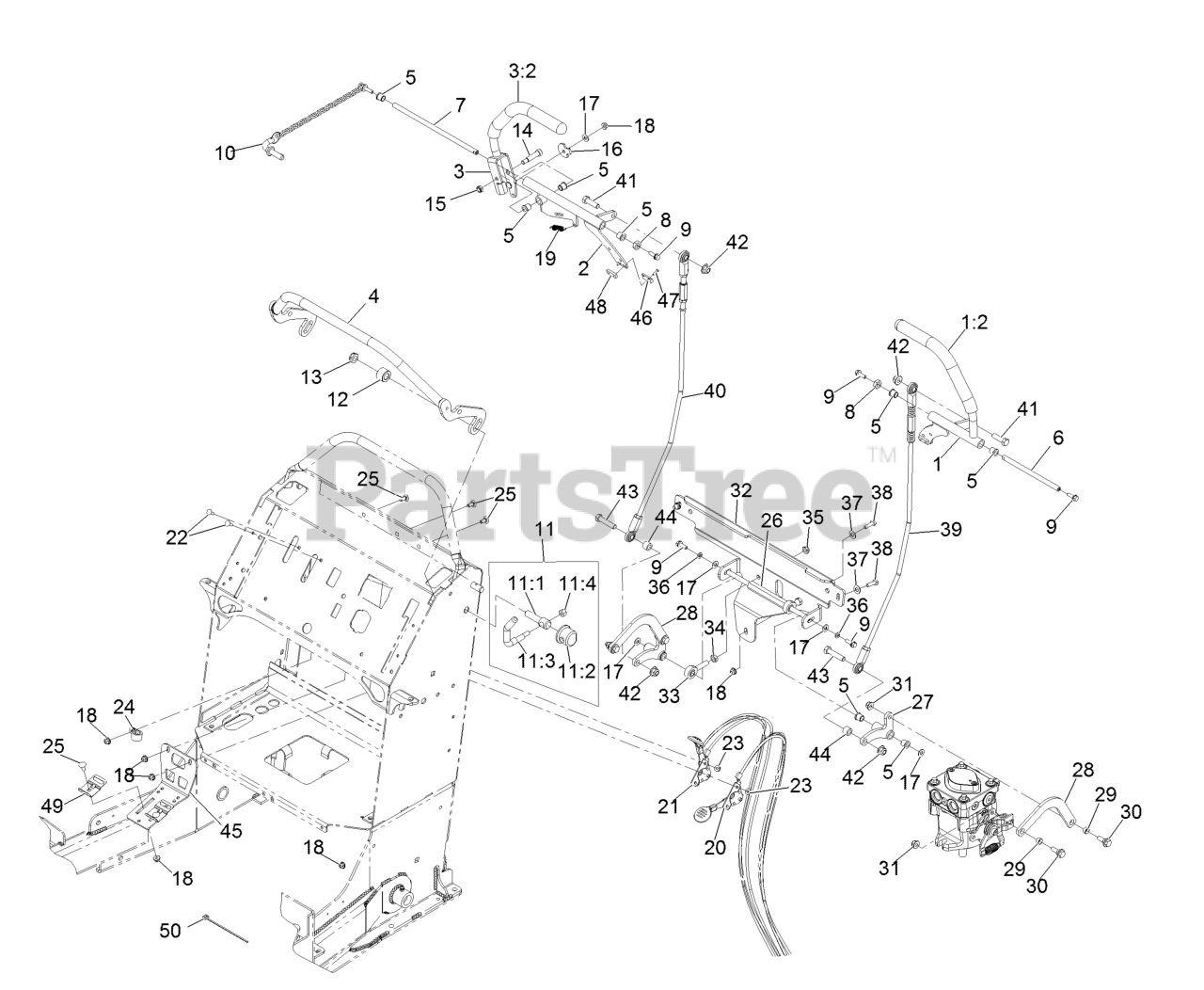

VTS651KA484 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX651V (SN: 313000000 - 313999999) (2013) > Parts Diagrams (22) > Control Assembly

  • Title
116-4970

1

Lever Asm, Lh

Part# 116-4970

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $84.02

116-2357

1:2

Grip-Handle, Control

Part# 116-2357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.71

116-4972-03

2

Motion Control Asm-Rh

Part# 116-4972-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $70.95

116-2356

3

Lever Asm, Rh

Part# 116-2356

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $81.53

116-2357

3:2

Grip-Handle, Control

Part# 116-2357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.71

116-6985-03

4

Tube Asm, Front Speed Control [

Part# 116-6985-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $92.77

103-9928

5

Bearing

Part# 103-9928

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.64

116-4978

6

Shaft-Pivot, Motion Control

Part# 116-4978

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.57

116-4979

7

Shaft-Pivot, Motion Control

Part# 116-4979

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.57

116-4198

8

Spacer-Drive Lever Shaft

Part# 116-4198

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.98

117-8304

9

Screw-Hex Flange 1/4-20 X 3/4

Part# 117-8304

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.50

114-0409

10

Hoc Pin Asm

Part# 114-0409

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.71

107-1664

11

Lever Asm

Part# 107-1664

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.83

106-3239

11:1

Screw-Lock

Part# 106-3239

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.92

107-1644

11:2

Cap-Lock

Part# 107-1644

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.45

106-3241

11:3

Lever-Lock

Part# 106-3241 (Superseded to 107-1664)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $53.83

3296-29

11:4

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

116-2319

12

Spacer-Clamp

Part# 116-2319

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.10

3296-45

13

Nut-Nyloc 1/2-13 Thin

Part# 3296-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

114-0239

14

Screw-Shoulder 5/16-18 X 1/2

Part# 114-0239

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.45

3296-47

15

Nut-Nyloc 5/16-18 Thin

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.49

114-0268

16

Cam-Lever

Part# 114-0268

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

3256-22

17

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

104-7201

18

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.10

114-0249

19

Spring-Extension

Part# 114-0249

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.11

116-4276

20

Control-Throttle

Part# 116-4276

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.69

116-4277

21

Control-Choke

Part# 116-4277

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.03

1-807533

22

Bolt-Carriage #10-24 X 5/8

Part# 1-807533

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

32128-17

23

Nut-Lock, Flange

Part# 32128-17

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

2412-87

24

Clamp-Cable

Part# 2412-87

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.30

3229-11

25

Bolt-Carriage 1/4-20 X 5/8

Part# 3229-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

116-3119

26

Shaft-Bellcrank Pivot

Part# 116-3119

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.94

116-4975

27

Bellcrank-Control, Motion

Part# 116-4975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.04

116-4973

28

Link-Bellcrank, Pump

Part# 116-4973

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.89

116-4976

29

Bushing-Sleeve

Part# 116-4976

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.95

116-2670

30

Screw-Shoulder Hhf 5/16-18 X .96

Part# 116-2670

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.36

104-8300

31

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

116-3202-03

32

Bracket-Bellcrank

Part# 116-3202-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $76.60

1-613204

33

Balljoint

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.90

3220-3

34

Nut-Jam 3/8-24

Part# 3220-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

3296-5

35

Nut-Nyloc 3/8-24 Thin

Part# 3296-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.87

3253-3

36

Washer-Lock 1/4

Part# 3253-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.11

3256-23

37

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

321-5

38

Screw-Hh 1/4-20 X 7/8

Part# 321-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

116-4936

39

Linkage-Tracking Control, Lh

Part# 116-4936

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $106.45

116-4937

40

Linkage-Tracking Control, Rh

Part# 116-4937

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $106.45

323-7

41

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

104-8301

42

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

323-9

43

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

52-2480

44

Spacer-Wheel

Part# 52-2480

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.24

116-4572

45

Bracket, Reed Switch

Part# 116-4572

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.05

116-2832

46

Actuator-Switch, Reed

Part# 116-2832

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.32

116-3330

47

Screw-Hh #4-40 X 1/2 W/Nylon

Part# 116-3330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

116-3227

48

Plate-Tapped

Part# 116-3227

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.71

116-4573

49

Clamp, Reed Switch

Part# 116-4573

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00

3290-378

50

Tie-Cable

Part# 3290-378

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74
