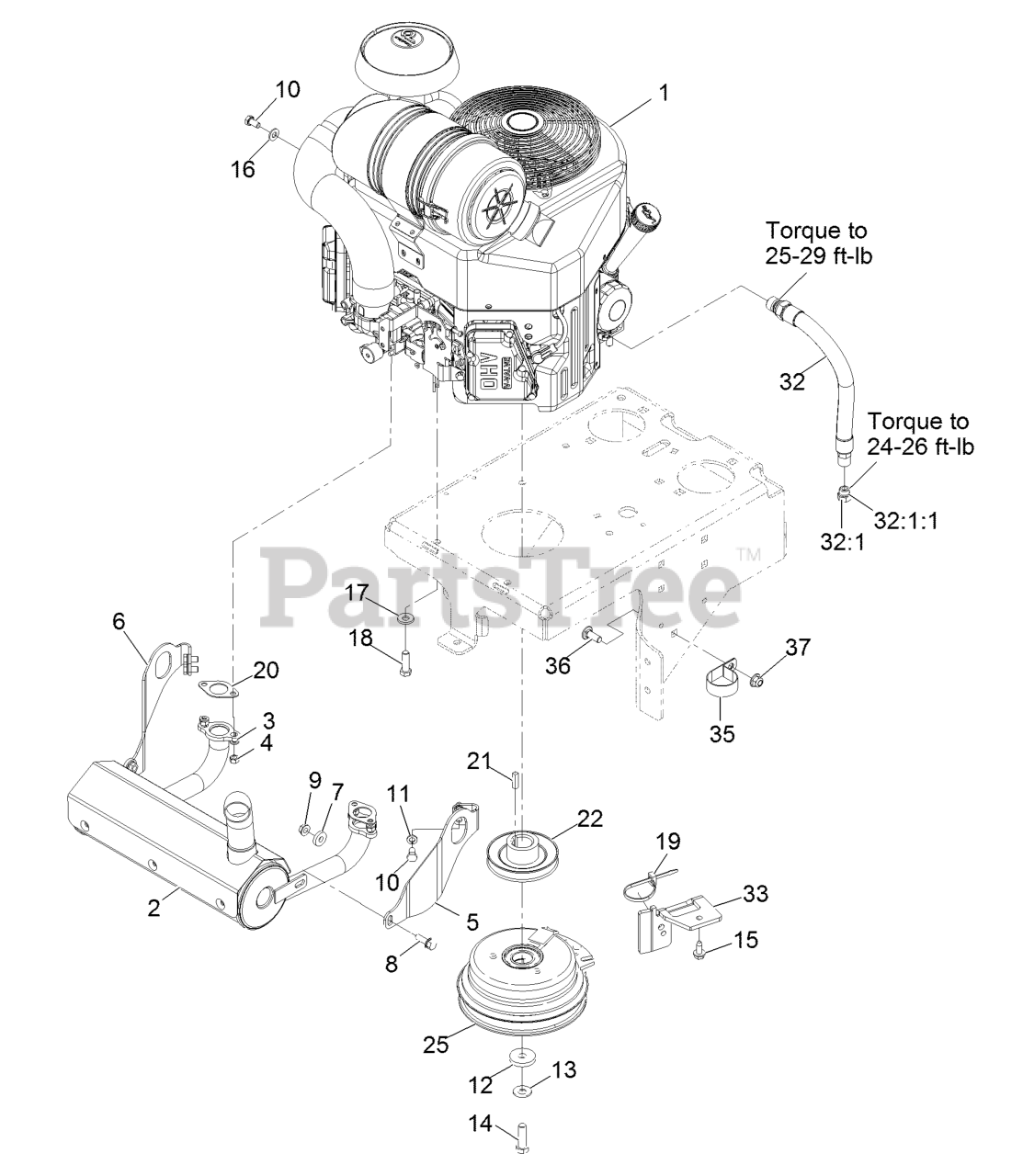

VTS651KA484 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX651V (SN: 313000000 - 313999999) (2013) > Parts Diagrams (22) > Engine Assembly

  • Title
Engine Kawasaki

1

Engine Kawasaki

Part# Engine Kawasaki

Not available

116-8747

2

Muffler, Kawasaki, 22-26

Part# 116-8747

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $297.66

114-3550

3

Washer-Lock, Spring

Part# 114-3550

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

114-3549

4

Nut-M8

Part# 114-3549

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.71

116-2353

5

Bracket-Muffler Mount, Lh

Part# 116-2353

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.26

116-2354

6

Bracket-Muffler Mount, Rh

Part# 116-2354

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.26

104-7658

7

Spacer

Part# 104-7658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.92

3234-29

8

Screw-Hh Flg 5/16-18 X 1

Part# 3234-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.25

32128-25

9

Nut-Hex 5/16-18 Side Lock

Part# 32128-25

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.49

33114-016

10

Screw-Hh M8-1.25 X 16mm

Part# 33114-016

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.48

3253-4

11

Washer-Lock 5/16

Part# 3253-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.68

107-4136

12

Washer

Part# 107-4136

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.34

1-603610

13

Washer-Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

3212-6

14

Screw-Hh 7/16-20 X 1 1/2

Part# 3212-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.80

32144-70

15

Screw-Hwh 5/16-18 X 3/4 Tf

Part# 32144-70

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

33094-00

16

Washer

Part# 33094-00

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.13

98-5975

17

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

323-7

18

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

3290-378

19

Tie-Cable

Part# 3290-378

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-653313

20

Gasket-Exhaust

Part# 1-653313

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

1-807259

21

Key-Machine 1/4 X 1/4 X 1

Part# 1-807259

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.52

116-3882

22

Pulley

Part# 116-3882

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.87

116-8517

25

Clutch-200 Ft-Lb, 1.125 Bore - No D Driv

Part# 116-8517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $475.97

116-4924

32

Asm-Hose Oil Drain W/Plug

Part# 116-4924

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.90

353-508

32:1

Plug-W/O-Ring

Part# 353-508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.32

237-42

32:1:1

O-Ring

Part# 237-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

116-3811-01

33

Bracket-Anchor, Clutch

Part# 116-3811-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.40

2412-147

35

Clamp

Part# 2412-147

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.90

3231-22

36

Bolt-Carriage 3/8-16 X 1

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

104-8301

37

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98
