VTS651KA484 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX651V (SN: 313000000 - 313999999) (2013)

48" Vantage S-Series Stand-On Mower, Kawasaki FX651V

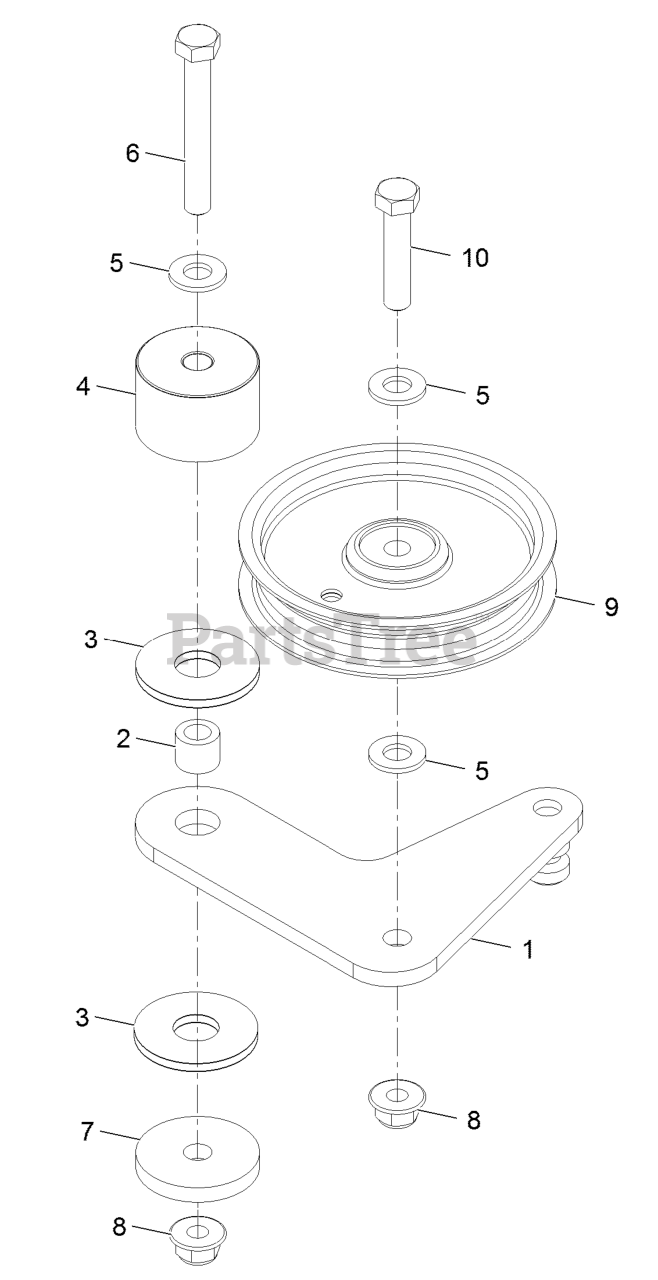

VTS651KA484 - Exmark 48" Vantage S-Series Stand-On Mower, Kawasaki FX651V (SN: 313000000 - 313999999) (2013) > Parts Diagrams (22) > Pump Idler Assembly No. 117-7685

  • Title
117-7684

1

Idler Plate Asm

Part# 117-7684

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.03

1-413088

2

Spacer

Part# 1-413088

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.54

114-0463

3

Washer-Friction, Composite

Part# 114-0463

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

116-7599

4

Hub, Idler

Part# 116-7599

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.00

3256-24

5

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

323-13

6

Screw-Hh 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

110-9981

7

Washer-Plain

Part# 110-9981 (Superseded to 110-9981)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.00

104-8301

8

Nut-Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.98

93-1622

9

Pulley-Idler

Part# 93-1622

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.80

323-9

10

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00
