VTS740EKC60400 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler ECV740 (SN: 315000000 - 315999999) (2015) Main Frame Assembly Parts Diagram

60" Vantage S-Series Stand-On Mower, Kohler ECV740

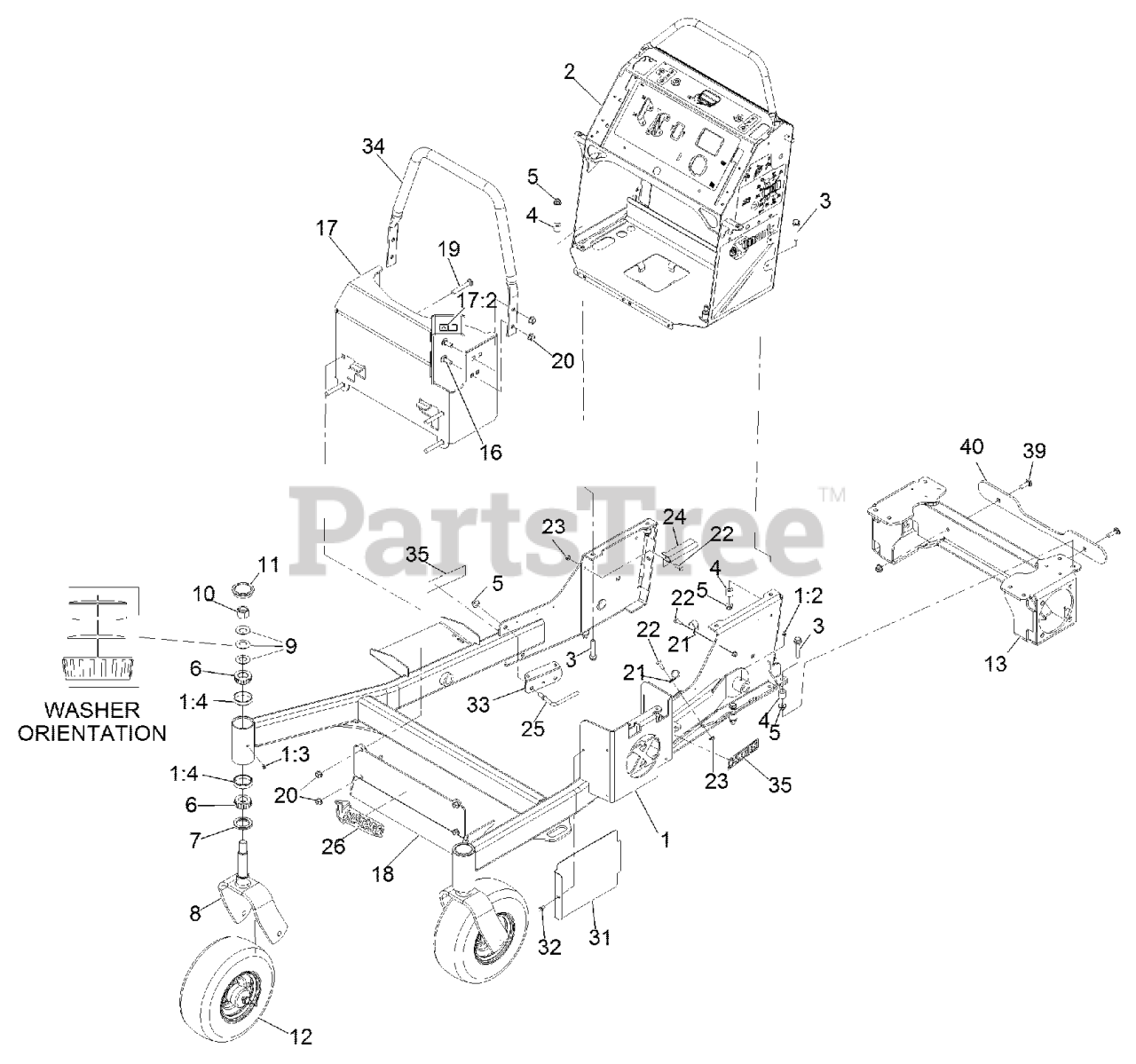

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-6028

FRONT FRAME ASM

$2481.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:3

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

1:4

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 20+

0

2

Exmark 116-5024

CONTROL TOWER ASM-EFI
(Superseded to 135-0136)

$1281.99

$

Usually ships in 3-6 days

0

3

Exmark 108-3742

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 121-1760

SPACER

$2.49

$

Usually ships in 3-6 days

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

7

Exmark 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

8

Exmark 121-7988-01

FORK-CASTER

$201.99

$

In Stock, Qty 19

0

9

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

11

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

12

Exmark 112-3810

WHEEL/TIRE AND BEARING AS

$218.99

$

In Stock, Qty 6

0

13

Exmark 116-9557-03

WELD, MOTOR FRAME

$309.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

17

Exmark 126-5015

ASM, MUFFLER GUARD W/ DEC

$255.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

18

Exmark 116-6036-01

PANEL-GUARD

$81.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 13

0

20

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-3456

BRACKET-HOSE, FUEL

$14.99

$

Usually ships in 3-6 days

0

25

Exmark 116-3382

GUIDE-HOSE, SUPPORT

$

$

Not available

26

Exmark 116-3137

DECAL-VANTAGE LOGO

$12.99

$

Usually ships in 3-6 days

0

31

Exmark 116-6981-01

SHIELD-HEAT, TALL

$36.99

$

Usually ships in 3-6 days

0

32

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 116-6997-01

GUARD-HOSE

$13.99

$

Usually ships in 3-6 days

0

34

Exmark 116-8152-03

TUBE-GUARD

$49.99

$

Usually ships in 3-6 days

0

35

Exmark 116-3884

DECAL-S-SERIES

$8.49

$

In Stock, only 2 left!

0

39

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

40

Exmark 126-1364-03

PLATE, BUMPER SPACER

$36.99

$

Usually ships in 3-6 days

0
