VTS740PKC52400 - Exmark 52" Vantage S-Series Stand-On Mower, Kohler PCV740 (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

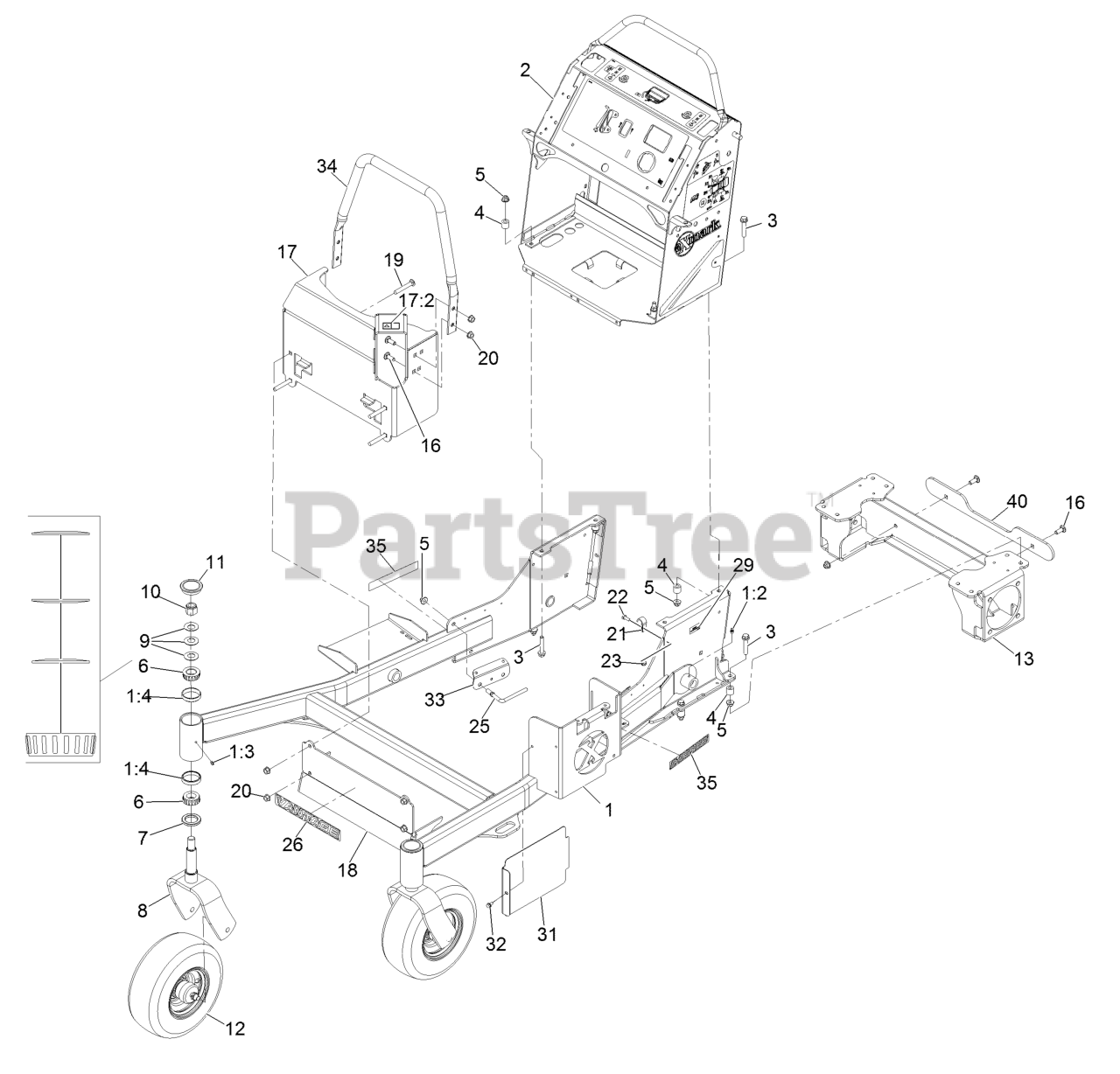

52" Vantage S-Series Stand-On Mower, Kohler PCV740

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-7045

Front Frame ASM

$1718.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-5

Zerk 1/4-28 Str Thrd Forming

$3.49

$

In Stock, Qty 20+

0

1:3

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 20+

0

1:4

Exmark 1-543508

Cup-Bearing Tapered Roller

$7.99

$

In Stock, Qty 20+

0

2

Exmark 135-0136

ASM-Control Tower

$1117.99

$

Usually ships in 3-6 days

0

3

Exmark 108-3742

Screw-HH Flg 3/8-16 X 2

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 121-1760

Spacer

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

7

Exmark 116-5647

Seal-Grease

$5.49

$

In Stock, Qty 20+

0

8

Exmark 121-7988-01

Fork-Caster

$152.99

$

In Stock, Qty 12

0

9

Exmark 1-633508

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3296-51

Nut-Nyloc 3/4-10

$6.49

$

In Stock, Qty 20+

0

11

Exmark 103-4882

Cap-Grease

$7.99

$

In Stock, Qty 20+

0

12

Exmark 112-3810

Wheel/Tire And Bearing ASM

$210.99

$

In Stock, only 3 left!

0

13

Exmark 116-9557-03

Weld, Motor Frame [black]

$263.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

17

Exmark 126-5015

ASM, Muffler Guard W/ Decal

$210.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

18

Exmark 116-3113-01

Panel-Guard

$108.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-31

Bolt-Carriage 3/8-16 X 2 1/2

$6.99

$

In Stock, Qty 20+

0

20

Exmark 32128-21

Nut-3/8-16 Flanged Side Lock

$0.99

$

In Stock, Qty 20+

0

21

Exmark 2412-87

Clamp-Cable

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

25

Exmark 116-3382

Guide-Hose, Support

$21.99

$

Usually ships in 3-6 days

0

26

Exmark 126-7200

Decal-Vantage Logo

$7.49

$

Usually ships in 3-6 days

0

29

Exmark 126-4345

Decal-Patent

$1.99

$

Usually ships in 3-6 days

0

31

Exmark 116-6981-01

Shield-Heat, Tall

$31.99

$

Usually ships in 3-6 days

0

32

Exmark 32144-4

Screw-HWH 1/4-20 X 1/2 Taptite

$1.49

$

In Stock, Qty 20+

0

33

Exmark 116-6997-01

Guard-Hose

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 116-8152-03

Tube-Guard

$43.99

$

Usually ships in 3-6 days

0

35

Exmark 126-6572

Decal-S-Series

$2.99

$

In Stock, only 2 left!

0

40

Exmark 126-1364-03

Plate, Bumper Spacer

$28.99

$

Usually ships in 3-6 days
