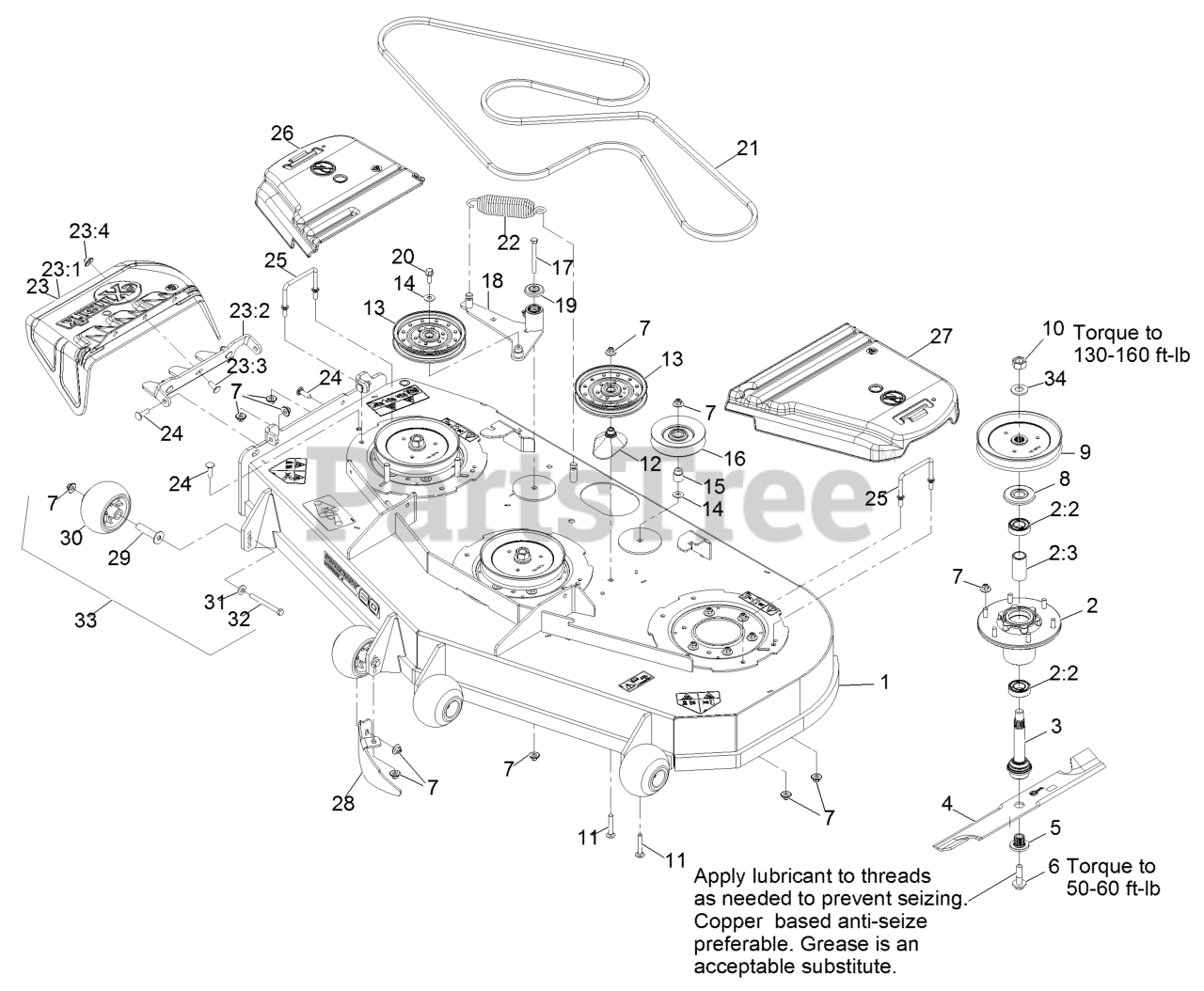

VTS740PKC60400 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler PCV740 (SN: 316000000 - 399999999) (2016) > Parts Diagrams (20) > Deck Assembly

  • Title
116-5029

1

Deck ASM-604

Part# 116-5029

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2515.39

116-3344

2

ASM-Cutter Hsg With Bearings

Part# 116-3344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $123.55

116-0720

2:2

Bearing-Ball

Part# 116-0720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.90

116-3312

2:3

Spacer-Bearing

Part# 116-3312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

116-3341

3

ASM-Spindle And Seal

Part# 116-3341

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.47

103-6383

4

Blade, Solid

Part# 103-6383 (Superseded to 103-6383-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.68

116-5174

4

Blade-Extreme 2, 20.50"

Part# 116-5174

OEM Warranty Repair Part for Exmark

Currently unavailable

103-6403

4

Blade, Notched

Part# 103-6403 (Superseded to 103-6403-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.46

103-6393

4

Blade, Mulching

Part# 103-6393 (Superseded to 103-6393-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.24

103-6388

4

Blade, Low Lift

Part# 103-6388 (Superseded to 103-6388-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $28.13

103-3037

5

Bushing, Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

109-9220

6

Screw-Sems 1/2-20 X 2.19

Part# 109-9220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

109-6658

7

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

116-1286

8

Guard,Bearing Top .989

Part# 116-1286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.86

116-0676

9

Sheave,Blade Drive 7.25

Part# 116-0676

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.60

116-7306

10

Nut-Hex

Part# 116-7306

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3231-7

11

Bolt-Carriage 3/8-16 X 2 1/4

Part# 3231-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.57

109-2872

12

Spacer-Pulley

Part# 109-2872

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.99

116-4667

13

Idler-Pulley, Flat

Part# 116-4667 (Superseded to 126-7685)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.72

3256-4

14

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

1-633456

15

Bushing, Idler

Part# 1-633456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

1-603805

16

Pulley-Idler

Part# 1-603805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.59

323-15

17

Screw-HH 3/8-16 X 3 1/2

Part# 323-15

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.53

116-6045

18

Deck Idler ASM

Part# 116-6045

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.22

103-2916

19

Guard-Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

3234-11

20

Screw-HH Flg 3/8-16 X 1

Part# 3234-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.41

99-4627

21

V-Belt

Part# 99-4627

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $149.26

116-6317

22

Spring-Extension

Part# 116-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.55

109-7188

23

ASM,Discharge Chute

Part# 109-7188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $77.31

109-2738

23:1

Chute, Discharge

Part# 109-2738

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.10

109-8675-01

23:2

Bracket,Discharge Chute

Part# 109-8675-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.29

3231-22

23:3

Bolt-Carriage 3/8-16 X 1

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.72

109-6658

23:4

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

3231-28

24

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.42

109-6982

25

Wireform-Cover

Part# 109-6982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.17

116-0094

26

Cover-Belt, RH

Part# 116-0094

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $62.40

109-6938

27

Cover-Belt, LH

Part# 109-6938

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $69.73

116-5614-01

28

Dogleg - Lz60

Part# 116-5614-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.47

116-8131

29

Axle, Roller

Part# 116-8131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.88

103-8415

30

Roller-Anti-Scalp

Part# 103-8415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.57

98-5975

31

Washer-Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

116-9362

32

Screw-HH 3/8-16 X 3 3/4 Gr 8

Part# 116-9362

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.93

116-9981

33

Kit, Anti-Scalp Roller

Part# 116-9981

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.36

103-2802

34

Washer-Spring Disc 3/4

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37
