VTS740PKC60400 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler PCV740 (SN: 316000000 - 399999999) (2016) LPG Fuel Assembly Parts Diagram

60" Vantage S-Series Stand-On Mower, Kohler PCV740

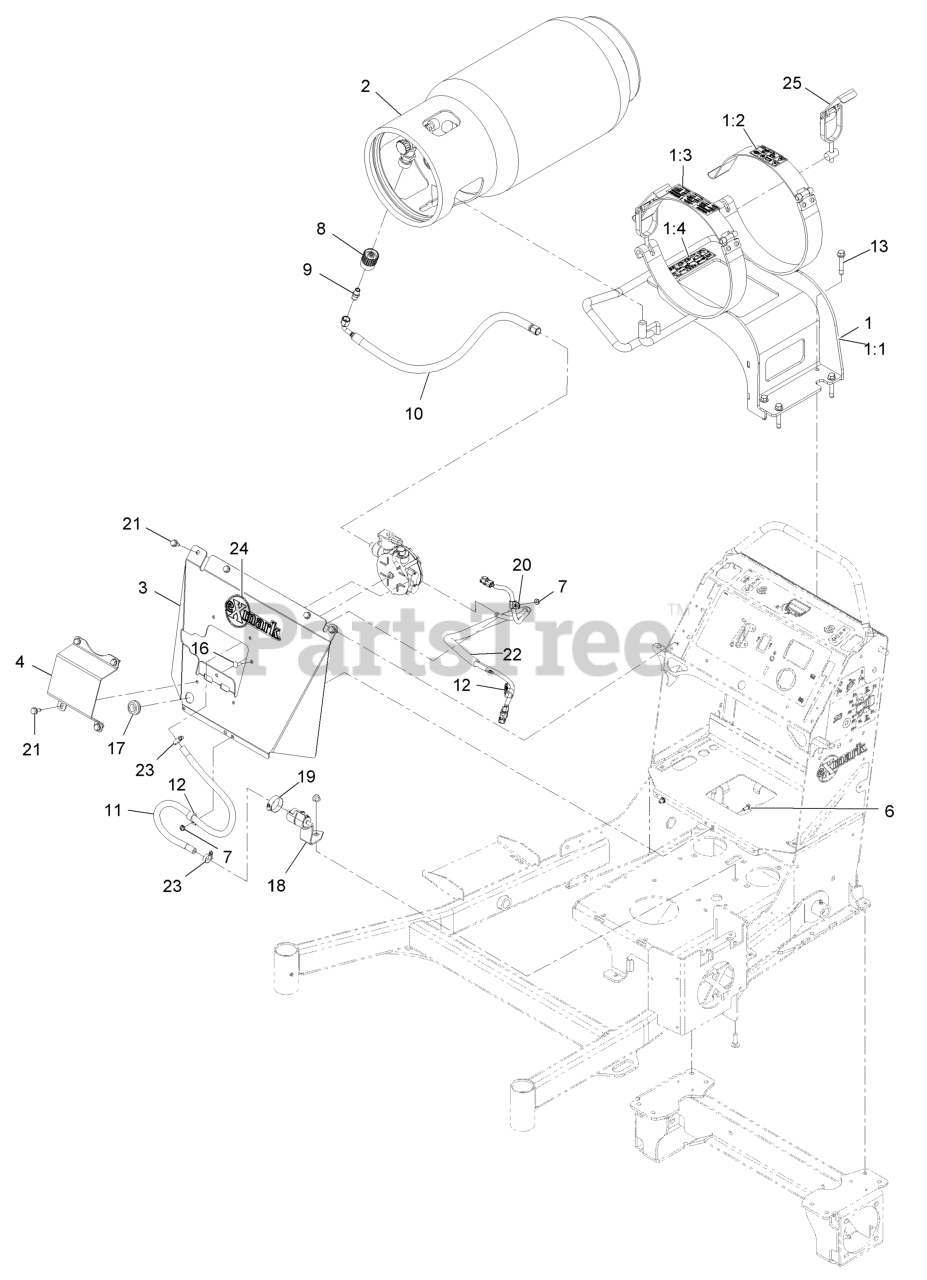

LPG Fuel Assembly Parts Diagram

  • Title

1

Exmark 126-4414

ASM, LP TANK MOUNT W/ DEC

$

$

Not available

1:1

Exmark 126-4228-03

BRACKET-LPG TANK

$1280.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-3275

Decal-LPG Warning

$11.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-3276

Decal-LPG Horiz Tank Spec

$6.99

$

Usually ships in 3-6 days

0

1:4

Exmark 126-3277

Decal-LPG Fuel Tank Replacement

$8.49

$

Usually ships in 3-6 days

0

2

Exmark 126-4506

TANK, LP - 33.5 LB.HORIZO

$582.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4888-03

PANEL, FRONT

$153.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4889-03

GUARD, REGULATOR

$59.99

$

Usually ships in 3-6 days

0

6

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

7

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-1073

CONNECTOR-LPG TANK, LH TH

$177.99

$

Usually ships in 3-6 days

0

9

Exmark 116-1155

FITTING-STR

$33.99

$

Usually ships in 3-6 days

0

10

Exmark 126-4236

ASM-HOSE, LPG

$139.99

$

Usually ships in 3-6 days

0

11

Exmark 126-4561

HOSE, FUEL

$

$

Not available

12

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

13

Exmark 126-2956

SCREW-HHF W/ PATCH

$6.99

$

In Stock, Qty 7

0

16

Exmark 3229-28

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 117-2781

GROMMET

$8.49

$

Usually ships in 3-6 days

0

18

Exmark 126-4569-03

BRACKET, FILTER

$30.99

$

Usually ships in 3-6 days

0

19

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

20

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, only 2 left!

0

21

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 7

0

22

Exmark 126-4573

ASM, VENT HOSE AND HARNES

$195.99

$

Usually ships in 3-6 days

0

23

Exmark 97-1271

CLAMP-HOSE

$4.49

$

In Stock, only 2 left!

0

24

Exmark 126-6877

DECAL, EXMARK LOGO

$8.49

$

In Stock, only 1 left!

0

25

Exmark 126-5052

LATCH, LP TANK

$

$

Not available
