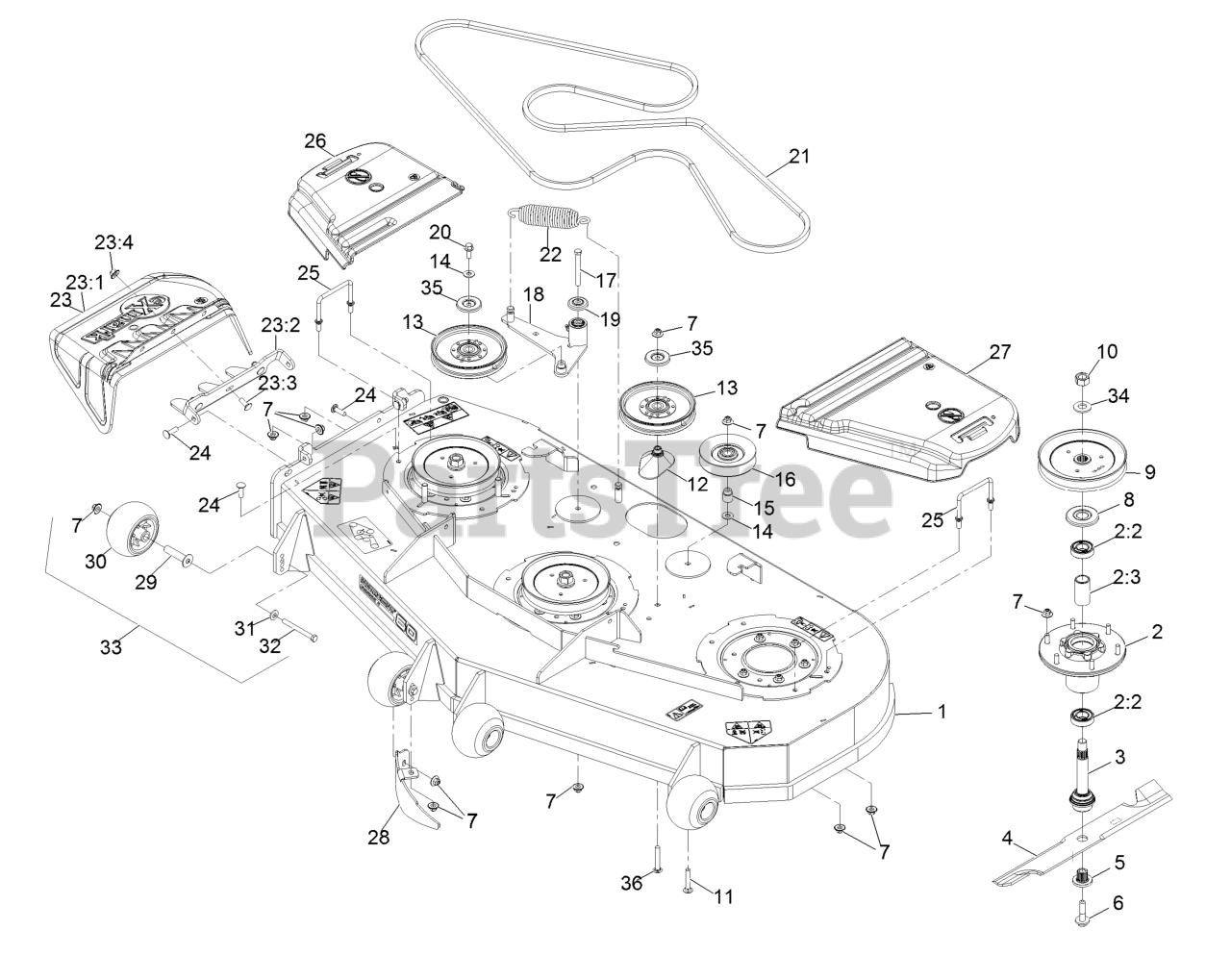

VTS740PKC60400 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler PCV740 (SN: 402082300 - 404314158) (2018) > Parts Diagrams (20) > Deck Assembly

  • Title
116-5029

1

Deck ASM-604

Part# 116-5029

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2373.00

116-3344

2

ASM-Cutter Hsg With Bearings

Part# 116-3344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $116.57

116-0720

2:2

Bearing-Ball

Part# 116-0720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.94

116-3312

2:3

Spacer-Bearing

Part# 116-3312

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.91

116-3341

3

ASM-Spindle And Seal

Part# 116-3341

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $61.77

103-6383

4

Blade, Solid

Part# 103-6383 (Superseded to 103-6383-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.23

116-5174

4

Blade-Extreme 2, 20.50"

Part# 116-5174

OEM Warranty Repair Part for Exmark

Currently unavailable

103-6403

4

Blade, Notched

Part# 103-6403 (Superseded to 103-6403-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.08

103-6393

4

Blade, Mulching

Part# 103-6393 (Superseded to 103-6393-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.92

103-6388

4

Blade, Low Lift

Part# 103-6388 (Superseded to 103-6388-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.54

103-3037

5

Bushing, Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.14

109-9220

6

Screw,Sems (1/2-20 X 2.19,GR5)

Part# 109-9220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.76

109-6658

7

Nut-Flange, NI

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

116-1286

8

Guard,Bearing Top .989

Part# 116-1286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

116-0676

9

Sheave,Blade Drive 7.25

Part# 116-0676

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $49.63

116-7306

10

Nut-Hex

Part# 116-7306

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

3231-7

11

Screw-CARR

Part# 3231-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.26

109-2872

12

Spacer-Pulley

Part# 109-2872

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.03

126-7685

13

Idler-Pulley

Part# 126-7685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $45.01

3256-4

14

Washer-Flat

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

1-633456

15

Bushing, Idler

Part# 1-633456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.44

1-603805

16

Pulley-Idler

Part# 1-603805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $39.23

323-15

17

Screw-HH

Part# 323-15

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.44

116-6045

18

Deck Idler ASM

Part# 116-6045

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $99.26

103-2916

19

Guard-Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.63

3234-11

20

Screw-HHF

Part# 3234-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.22

99-4627

21

V-Belt

Part# 99-4627

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $140.81

116-6317

22

Spring-Extension

Part# 116-6317

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.39

109-7188

23

ASM,Discharge Chute

Part# 109-7188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $72.94

109-2738

23:1

Chute, Discharge

Part# 109-2738

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $51.05

109-8675-01

23:2

Bracket,Discharge Chute

Part# 109-8675-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.13

3231-22

23:3

Screw-CARR

Part# 3231-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.56

109-6658

23:4

Nut-Flange, NI

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

3231-28

24

Screw-CARR

Part# 3231-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

109-6982

25

Wireform-Cover

Part# 109-6982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.71

116-0094

26

Cover-Belt, RH

Part# 116-0094

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $58.86

109-6938

27

Cover-Belt, LH

Part# 109-6938

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.78

116-5614-01

28

Dogleg - Lz60

Part# 116-5614-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.95

116-8131

29

Axle, Roller

Part# 116-8131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.37

103-8415

30

Roller-Anti-Scalp

Part# 103-8415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

98-5975

31

Washer-Belleville

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

116-9362

32

Screw-HH

Part# 116-9362

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

116-9981

33

Kit, Anti-Scalp Roller

Part# 116-9981

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.08

103-2802

34

Washer

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.18

126-8043

35

Shield-Dust

Part# 126-8043

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

3231-44

36

Screw-CARR

Part# 3231-44

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87
