VTS740PKC60400 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler PCV740 (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

60" Vantage S-Series Stand-On Mower, Kohler PCV740

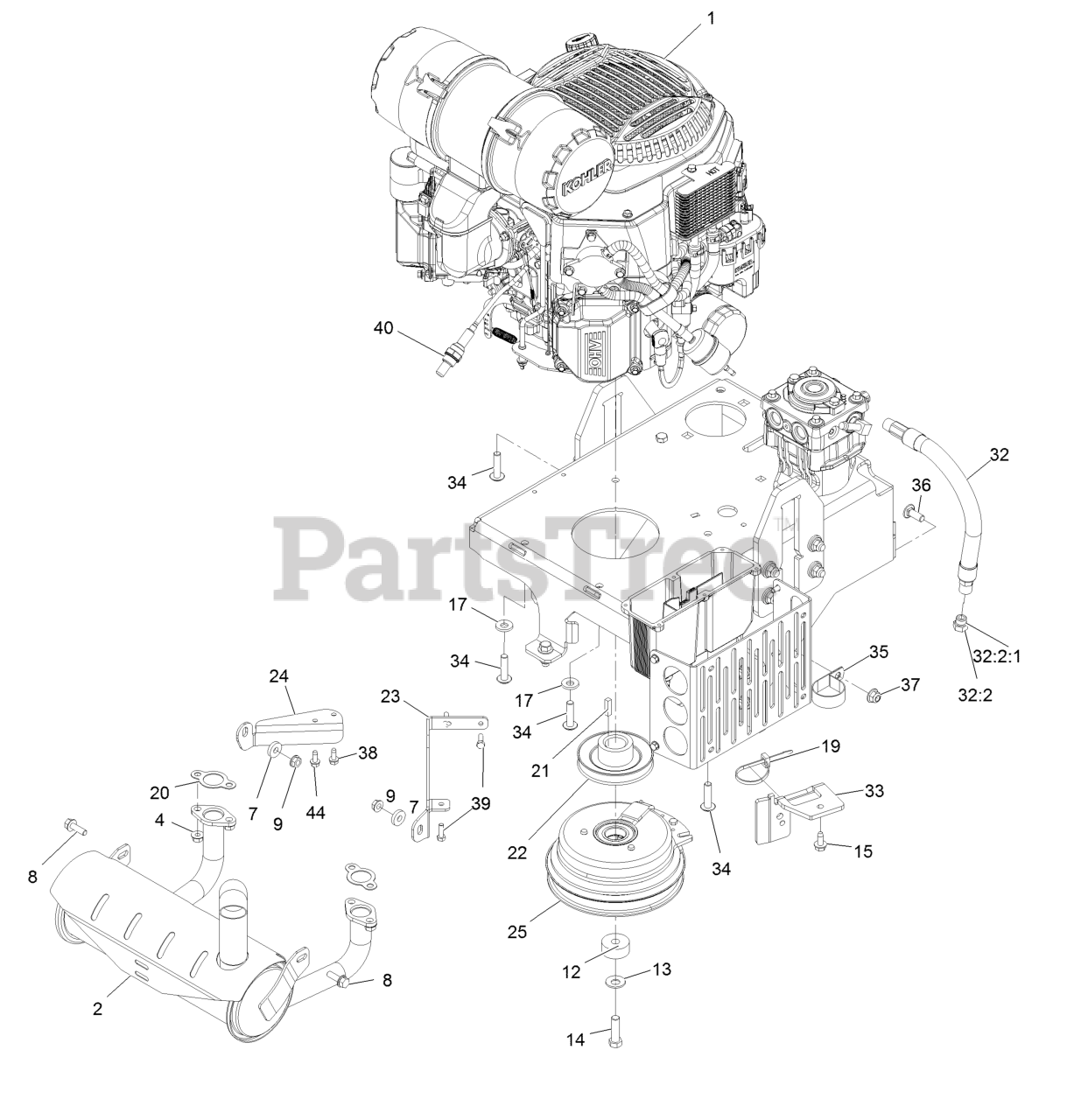

Engine Assembly Parts Diagram

  • Title

1

Engine, Kohler Pcv 740 - 3020

$

$

Not available

2

Exmark 135-2578

Muffler-Kohler Efi

$346.99

$

In Stock, only 1 left!

0

4

Exmark 68-9400

Nut-Flange

$2.99

$

In Stock, only 1 left!

0

7

Exmark 104-7658

Spacer

$1.49

$

In Stock, only 1 left!

0

8

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 20+

0

9

Exmark 32128-25

Nut-Hex 5/16-18 Side Lock

$3.99

$

In Stock, Qty 5

0

12

Exmark 103-0152

Keeper-Clutch

$14.99

$

In Stock, only 2 left!

0

13

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 5

0

14

Exmark 3212-6

Screw-HH 7/16-20 X 1 1/2

$2.49

$

In Stock, Qty 5

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

17

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

19

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 10

0

20

Exmark 110-6697

Gasket-Exhaust

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.49

$

In Stock, only 2 left!

0

22

Exmark 116-3882

Pulley

$125.99

$

Usually ships in 3-6 days

0

23

Exmark 127-1903

Bracket-Muffler, LH

$39.99

$

Usually ships in 3-6 days

0

24

Exmark 127-1904

Bracket-Muffler, RH

$28.99

$

Usually ships in 3-6 days

0

25

Exmark 116-8517

Clutch-200 Ft-Lb, 1.125 Bore - No D Driv

$693.99

$

Usually ships in 3-6 days

0

32

Exmark 116-5108

Oil Drain Hose ASM

$42.99

$

In Stock, only 1 left!

0

32:2

Exmark 353-508

Plug-W/O-Ring

$9.49

$

In Stock, only 2 left!

0

32:2:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

0

33

Exmark 116-3811-01

Bracket-Anchor, Clutch

$43.99

$

Usually ships in 3-6 days

0

34

Exmark 126-0983

Screw-BHTF

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 2412-147

Clamp

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

37

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

38

Exmark 116-5722

Screw-HWHTF

$1.99

$

Usually ships in 3-6 days

0

39

Exmark 116-4295

Screw-HH M6-1 X 20Mm W/Patch

$5.49

$

In Stock, only 3 left!

0

40

Exmark 116-5395

Sensor-Oxygen

$270.99

$

Usually ships in 3-6 days

0

44

Exmark 116-5722

Screw-HWHTF

$1.99

$

Usually ships in 3-6 days

0
