VTS740PKC60400 - Exmark 60" Vantage S-Series Stand-On Mower, Kohler PCV740 (SN: 402082300 - 404314158) (2018) Ground Drive Assembly Parts Diagram

60" Vantage S-Series Stand-On Mower, Kohler PCV740

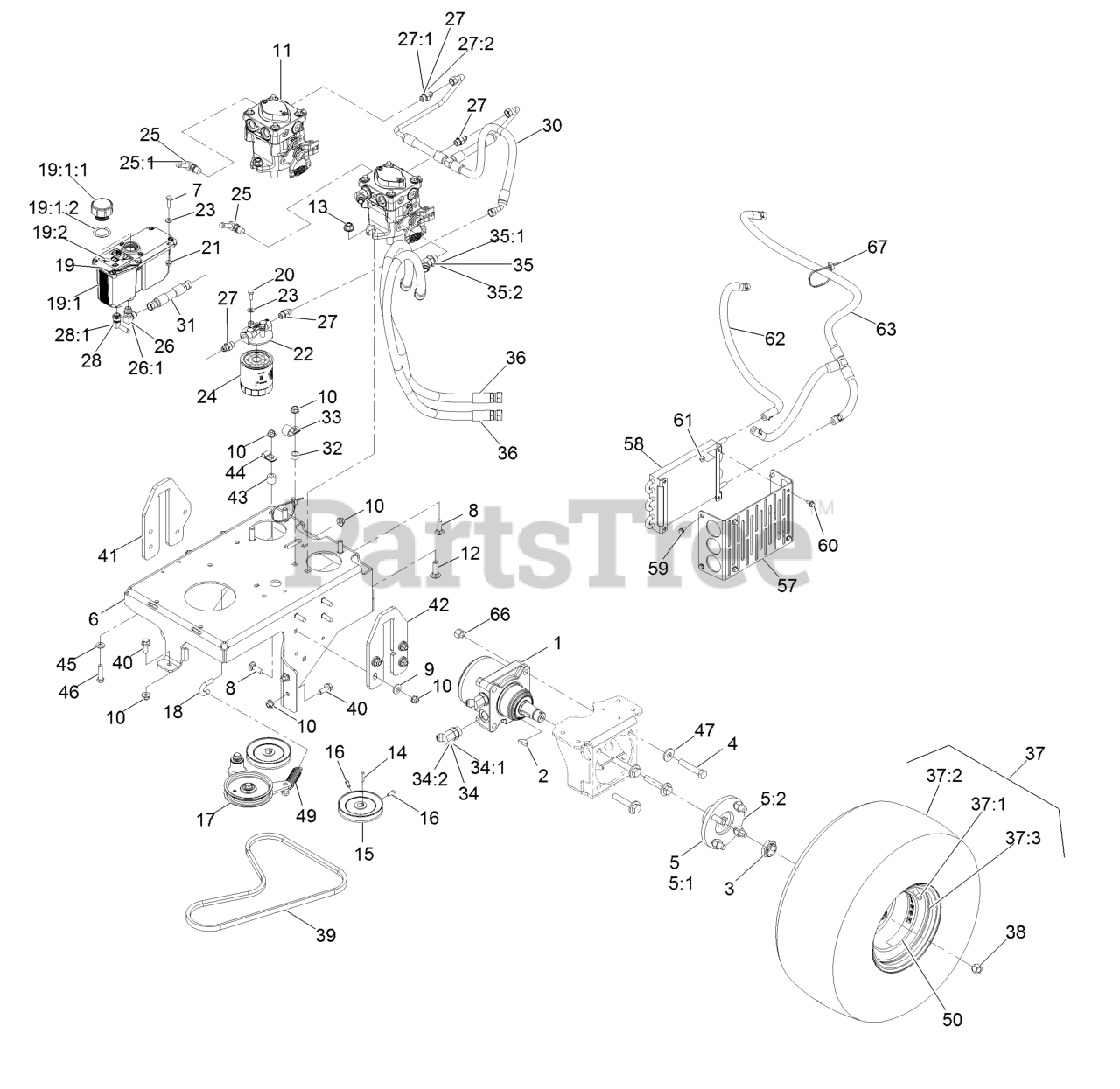

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 126-0524

Motor-Wheel

$1296.99

$

Usually ships in 3-6 days

0

2

Exmark 3257-8

Key-Woodruff

$5.49

$

In Stock, Qty 9

0

3

Exmark 116-1399

Locknut

$14.99

$

In Stock, only 3 left!

0

4

Exmark 325-11

Screw-HH 1/2-13 X 2 3/4

$2.99

$

In Stock, Qty 12

0

5

Exmark 18-3209

Wheel Hub / Stud ASM

$175.99

$

Usually ships in 3-6 days

0

5:1

Exmark 10-6870-03

Hub-Wheel

$151.99

$

Usually ships in 3-6 days

0

5:2

Exmark 10-6830

Stud-Type, Drive

$5.49

$

In Stock, Qty 10

0

6

Exmark 116-8525-01

Base, Engine [red]

$344.99

$

Usually ships in 3-6 days

0

7

Exmark 321-6

Screw-HH 1/4-20 X 1

$0.99

$

In Stock, Qty 20+

0

8

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

10

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-2572

Pump - Hydraulic

$1314.99

$

Usually ships in 3-6 days

0

12

Exmark 3232-3

Bolt-Carriage 7/16-14 X 1 1/2

$3.49

$

In Stock, Qty 7

0

13

Exmark 114-8417

Nut-HF, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 1-807272

Key-5Mm X 5Mm X 25Mm

$5.99

$

In Stock, Qty 10

0

15

Exmark 105-5648

Pulley-Pump

$125.99

$

Usually ships in 3-6 days

0

16

Exmark 3241-5

Setscrew-SQH 1/4-20 X 5/8

$2.49

$

Usually ships in 3-6 days

0

17

Exmark 116-9980

Pump Idler ASM

$171.99

$

Usually ships in 3-6 days

0

18

Exmark 116-8526

Anchor, Spring

$15.99

$

In Stock, only 1 left!

0

19

Exmark 116-2066

Reservoir ASM

$193.99

$

Usually ships in 3-6 days

0

19:1

Reservoir-HYD

$

$

Not available

19:1:1

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, Qty 20+

0

19:1:2

Exmark 103-1949

Gasket-Cap
(Superseded to 142-2792)

$1.49

$

In Stock, only 2 left!

0

19:2

Exmark 115-4212

Decal-Warning

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

21

Exmark 32128-32

Nut-Hex 1/4-20 Side Lock

$2.99

$

In Stock, Qty 16

0

22

Exmark 104-7836

Filter-Head

$18.99

$

In Stock, Qty 5

0

23

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

24

Exmark 109-4180

Element, Oil Filter

$47.99

$

In Stock, Qty 20+

0

25

Exmark 100-4887

Fitting-Elbow, 90

$28.99

$

In Stock, only 2 left!

0

25:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

26

Exmark 103-1802

Fitting-Elbow, 90 DEG

$22.99

$

In Stock, Qty 5

0

26:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

27

Exmark 103-2156

Adapter-Straight

$41.99

$

In Stock, only 4 left!

0

27:1

Exmark 1-603921

O-Ring-SAE #6
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

27:2

Exmark 103-1020

O-Ring-37 Flare #6

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 103-1807

Fitting-Barbed, 45 DEG

$27.99

$

Usually ships in 3-6 days

0

28:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

30

Exmark 116-2650

Hose Assembly - Charge

$138.99

$

Usually ships in 3-6 days

0

31

Exmark 116-2604

HYD Hose ASM

$23.99

$

Usually ships in 3-6 days

0

32

Exmark 100-1401

Spacer-Slide, Spring

$7.99

$

Usually ships in 3-6 days

0

33

Exmark 1-633396

Clip-Loom 5/8

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 1-523222

Fitting-HYD, 45 DEG

$61.99

$

Usually ships in 3-6 days

0

34:1

Exmark 1-603919

O-Ring-SAE #10

$3.49

$

In Stock, Qty 20+

0

34:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-523221

Fitting-HYD, 45 DEG

$47.99

$

Usually ships in 3-6 days

0

35:1

Exmark 1-603920

O-Ring-SAE #8

$3.49

$

In Stock, Qty 20+

0

35:2

Exmark 1-603992

O-Ring-37 Flare #8

$2.99

$

In Stock, Qty 20+

0

36

Exmark 116-6902

HYD Hose ASM

$120.99

$

In Stock, only 2 left!

0

37

Exmark 120-6465

Wheel/Tire ASM

$305.99

$

Usually ships in 3-6 days

0

37:1

Exmark 116-4605

Rim-8 Inch

$108.99

$

Usually ships in 3-6 days

0

37:2

Exmark 120-6466

Tire

$149.99

$

In Stock, only 2 left!

0

37:3

Exmark 232-27

Stem-Valve

$

$

Not available

38

Exmark 242-50

Nut-Lug 1/2-20

$1.99

$

In Stock, Qty 20+

0

39

Exmark 114567

Belt-V
(Superseded to 114567-SL)

$34.99

$

Usually ships in 3-6 days

0

40

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

41

Exmark 116-4922

Plate-Lift, RH

$78.99

$

Usually ships in 3-6 days

0

42

Exmark 116-3546

Plate, Lift LH

$79.99

$

Usually ships in 3-6 days

0

43

Exmark 121-1760

Spacer

$2.99

$

Usually ships in 3-6 days

0

44

Exmark 116-3362

Clip-Tube

$5.49

$

Usually ships in 3-6 days

0

45

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

46

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 20+

0

49

Exmark 1-653331

Spring

$12.99

$

In Stock, Qty 9

0

50

Exmark 126-2055

Decal-Torque, Wheel Hub Lug

$6.49

$

In Stock, Qty 15

0

57

Exmark 116-7497-01

Bracket, Cooler Mounting

$86.99

$

Usually ships in 3-6 days

0

58

Exmark 116-7274

Cooler-Oil
(Superseded to 135-6112)

$376.99

$

Usually ships in 3-6 days

0

59

Exmark 32144-4

Screw-HWH 1/4-20 X 1/2 Taptite

$1.49

$

In Stock, Qty 20+

0

60

Exmark 3234-13

Screw-HHF

$1.49

$

In Stock, only 4 left!

0

61

Exmark 32149-2

Nut-Keps

$2.99

$

In Stock, Qty 20+

0

62

Exmark 116-7338

Hose-Hydraulic

$29.99

$

Usually ships in 3-6 days

0

63

Exmark 116-7613

Hose ASM-HYD LP 3/8

$59.99

$

In Stock, only 1 left!

0

66

Exmark 3296-23

Nut-Nyloc 1/2-13

$1.49

$

In Stock, Qty 20+

0

67

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 14

0
