VTX730EKC524 - Exmark 52" Vantage X-Series Stand-On Mower, Kohler ECV730 EFI (SN: 313000000 - 313999999) (2013) Main Frame Assembly Parts Diagram

52" Vantage X-Series Stand-On Mower, Kohler ECV730 EFI

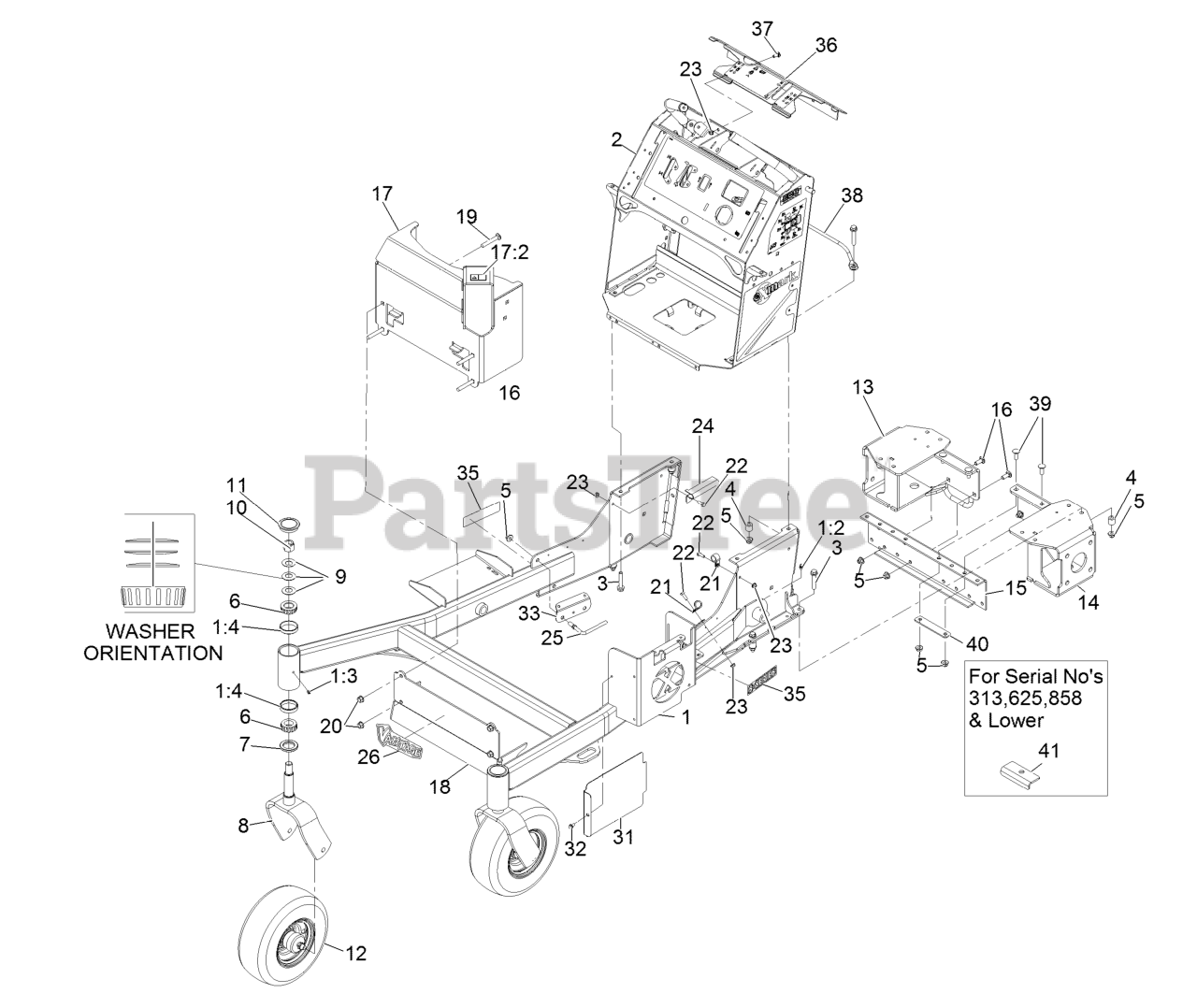

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-7045

FRONT FRAME ASM

$1718.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

1:3

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

1:4

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 20+

0

2

Exmark 116-9201

TOWER ASSEMBLY

$

$

Not available

3

Exmark 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 121-1760

SPACER

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

7

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

8

Exmark 103-8618-01

FORK-CASTER

$128.99

$

In Stock, Qty 13

0

9

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

11

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

12

Exmark 112-3810

WHEEL/TIRE AND BEARING AS

$210.99

$

In Stock, only 3 left!

0

13

Exmark 119-7222-03

RH MOTOR MOUNT ASM

$328.99

$

Usually ships in 3-6 days

0

14

Exmark 119-7220-03

LH MOTOR MOUNT ASM

$

$

Not available

15

Exmark 119-7224-03

MOUNT-MOTOR, CENTER

$

$

Not available

16

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

17

Exmark 116-6373

126-5015
(Superseded to 126-5015)

$210.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

18

Exmark 116-3113-01

PANEL-GUARD

$108.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

20

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-3456

BRACKET-HOSE, FUEL

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 116-3382

GUIDE-HOSE, SUPPORT

$21.99

$

Usually ships in 3-6 days

0

26

Exmark 116-3137

DECAL-VANTAGE LOGO

$11.99

$

In Stock, only 3 left!

0

31

Exmark 116-6981-01

SHIELD-HEAT, TALL

$31.99

$

Usually ships in 3-6 days

0

32

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 116-6997-01

GUARD-HOSE

$12.99

$

Usually ships in 3-6 days

0

35

Exmark 116-3883

DECAL-X-SERIES

$7.49

$

In Stock, only 2 left!

0

36

Exmark 116-8859

CONTROL PANEL W/DECALS

$52.99

$

Usually ships in 3-6 days

0

37

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

38

Exmark 116-7688

ROD, GUARD

$20.99

$

Usually ships in 3-6 days

0

39

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

40

Exmark 126-0337

SPACER, UP STOP

$

$

Not available

41

Exmark 126-0341

Spacer-Up Stop

$

$

Currently unavailable
