VTX740EKC60400 - Exmark 60" Vantage X-Series Stand-On Mower, Kohler ECV740 (SN: 316000000 - 399999999) (2016) Engine Assembly Parts Diagram

60" Vantage X-Series Stand-On Mower, Kohler ECV740

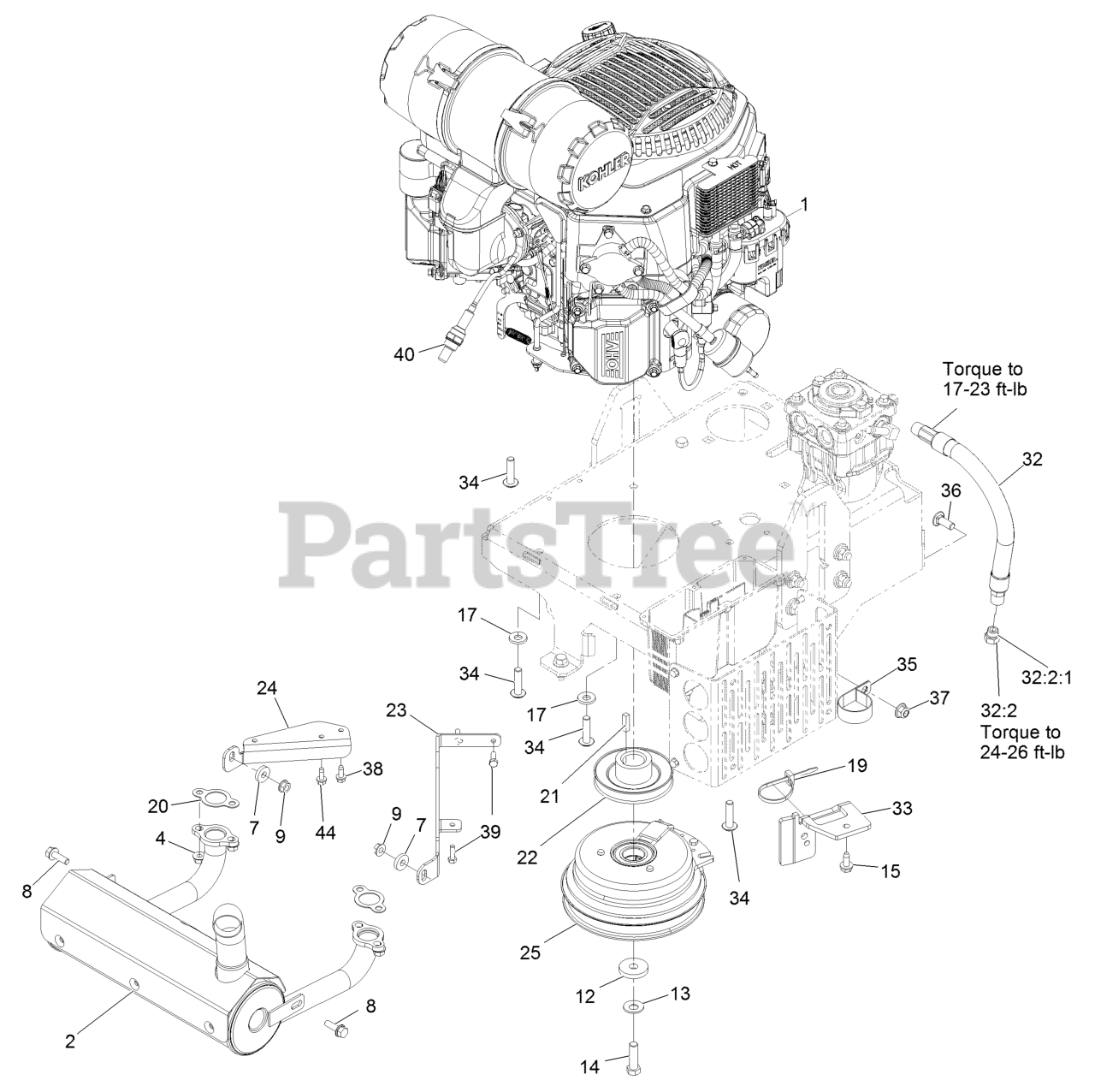

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Ecv740

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

2

Exmark 116-8748

135-2666
(Superseded to 135-2666)

$460.99

$

In Stock, only 1 left!

0

4

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 2 left!

0

7

Exmark 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

9

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, only 3 left!

0

12

Exmark 107-4136

WASHER
(Superseded to 1-543610)

$6.99

$

In Stock, Qty 11

0

13

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

14

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, Qty 9

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

17

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

20

Exmark 110-6697

GASKET-EXHAUST

$

$

Not available

21

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

22

Exmark 116-3882

PULLEY

$125.99

$

Usually ships in 3-6 days

0

23

Exmark 126-0071

MOUNT, MUFFLER-LT

$33.99

$

In Stock, only 1 left!

0

24

Exmark 126-0072

MOUNT, MUFFLER-RT

$21.99

$

Usually ships in 3-6 days

0

25

Exmark 116-8517

CLUTCH-200 FT-LB, 1.125 B

$691.99

$

Usually ships in 3-6 days

0

32

Exmark 116-5108

OIL DRAIN HOSE ASM

$41.99

$

In Stock, only 2 left!

0

32:2

Exmark 353-508

PLUG-HH

$8.99

$

In Stock, only 3 left!

0

32:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

33

Exmark 116-3811-01

BRACKET-ANCHOR, CLUTCH

$43.99

$

Usually ships in 3-6 days

0

34

Exmark 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 116-5722

SCREW-HWHTF

$1.99

$

Usually ships in 3-6 days

0

39

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

In Stock, only 3 left!

0

40

Exmark 116-5395

SENSOR-OXYGEN

$221.99

$

Usually ships in 3-6 days

0

44

Exmark 116-5722

SCREW-HWHTF

$1.99

$

Usually ships in 3-6 days

0
