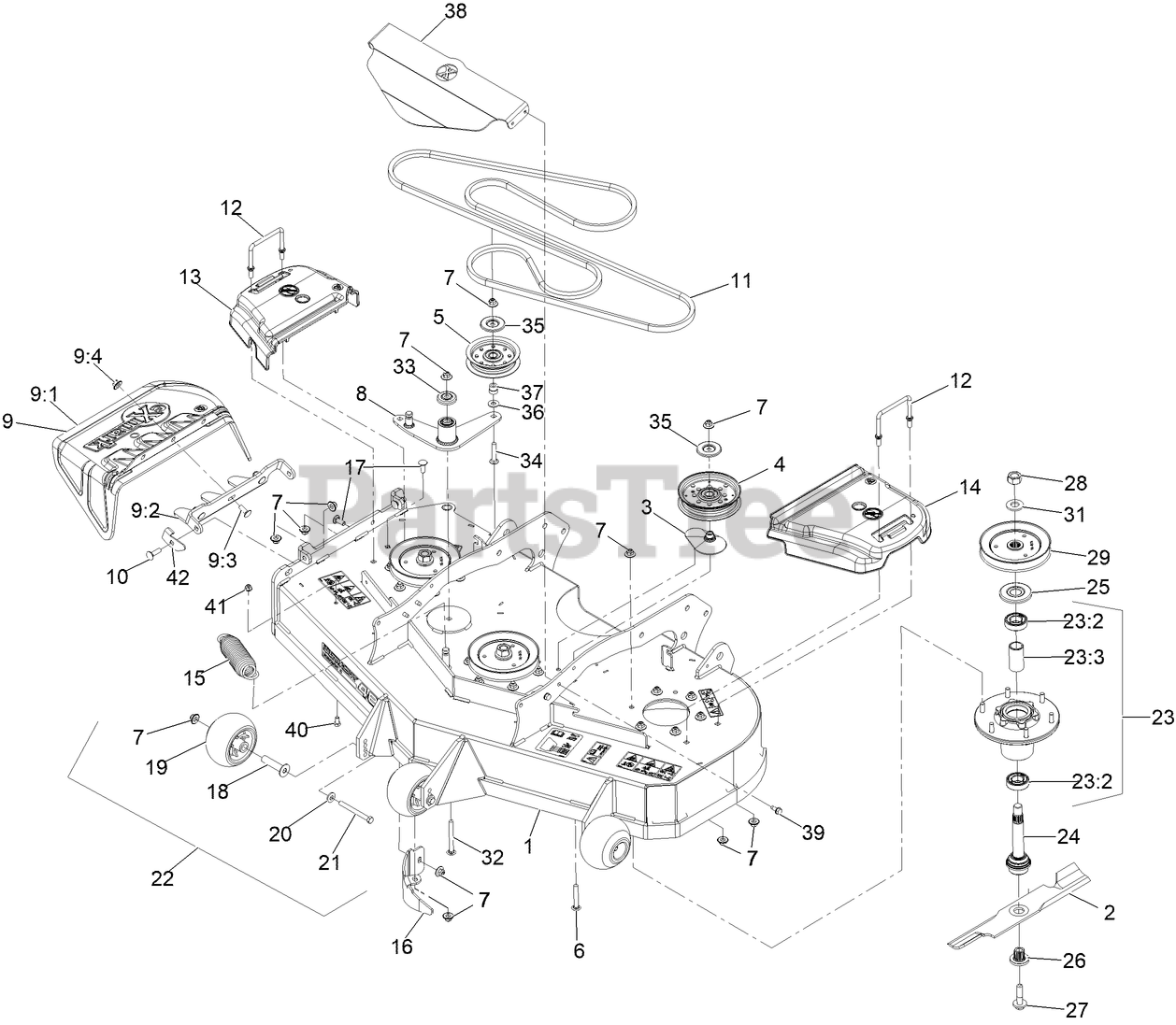

VXS740AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler ECV740 (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

48" Vertex S-Series Stand-On Mower, Kohler ECV740

Deck Assembly Parts Diagram

  • Title

1

Exmark 142-5074

ASM-DECK W/DECALS 484

$2476.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6381

USE 103-6381-S
(Superseded to 103-6381-S)

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

0

2

Exmark 103-6386

USE 103-6386-S
(Superseded to 103-6386-S)

Note: Optional Equipment

$30.99

$

In Stock, Qty 7

0

2

Exmark 103-6391

USE 103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$31.99

$

In Stock, Qty 20+

0

2

Exmark 103-6401

USE 103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 20+

0

2

Exmark 116-5177

USE 116-5177-S
(Superseded to 116-5177-S)

Note: Optional Equipment

$31.99

$

In Stock, Qty 20+

0

3

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 19

0

4

Exmark 126-9187

PULLEY-IDLER, FLAT

$62.99

$

In Stock, Qty 20+

0

5

Exmark 116-3626

132-4718
(Superseded to 132-4718)

$34.99

$

In Stock, Qty 20+

0

6

Exmark 3231-44

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-3806

IDLER ARM ASM W/BEARINGS

$242.99

$

Usually ships in 3-6 days

0

9

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, Qty 11

0

9:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 6

0

9:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

9:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 12

0

9:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 142-8172

BELT-B147.4

$161.99

$

In Stock, Qty 7

0

12

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 8

0

13

Exmark 109-6935

COVER-BELT, RH

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 109-6936

COVER-BELT, LH

$37.99

$

Usually ships in 3-6 days

0

15

Exmark 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 20+

0

16

Exmark 116-5995-01

BAFFLE-DOGLEG,LZS LZX VT48

$62.99

$

Usually ships in 3-6 days

0

17

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 12

0

18

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 20+

0

19

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

20

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

21

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

22

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$53.99

$

In Stock, Qty 20+

0

23

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 20+

0

23:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

23:3

Exmark 116-3312

SPACER-BEARING

$9.99

$

In Stock, Qty 15

0

24

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 20+

0

25

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

26

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

27

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

28

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

29

Exmark 116-0674

SHEAVE,BLADE DRIVE 5.90

$76.99

$

In Stock, Qty 7

0

31

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

32

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

33

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 7

0

34

Exmark 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

35

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

36

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

37

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, Qty 5

0

38

Exmark 142-6764-01

Guard-Front Deck

$51.99

$

Usually ships in 3-6 days

0

39

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 8

0

40

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

42

Exmark 135-0064

STOP-DISCHARGE CHUTE

$9.99

$

Usually ships in 3-6 days

0
