VXS750AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler EZT750 (SN: 416150475 - 417930745) (Rev A) (2024) Fuel Assembly Parts Diagram

48" Vertex S-Series Stand-On Mower, Kohler EZT750

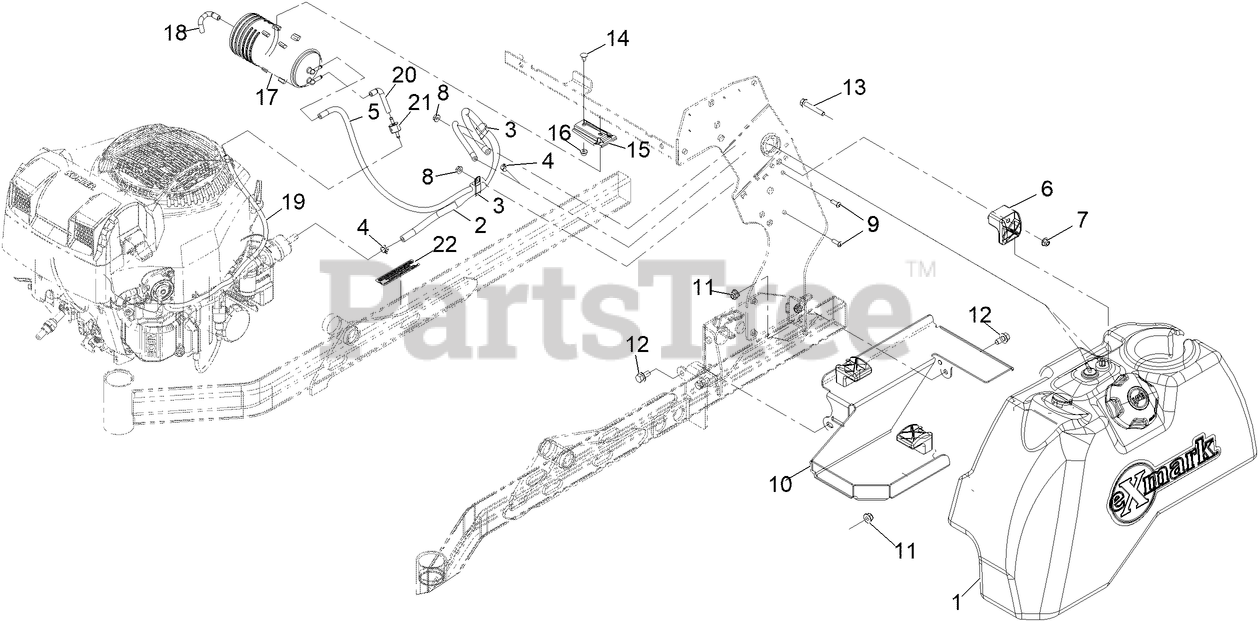

Fuel Assembly Parts Diagram

  • Title

1

Exmark 142-6113

ASM, FUEL TANK 8 GAL

$699.99

$

Usually ships in 3-6 days

0

2

Exmark 110-1872

HOSE-FUEL

$36.99

$

Usually ships in 3-6 days

0

3

Exmark 119-8153

CLAMP-R, DOUBLE TUBE

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

5

Exmark 51-3212RT07

Hose-Fuel

$

$

Currently unavailable

6

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

8

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

9

Exmark 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 8

0

10

Exmark 142-5959-03

Bracket, Fuel Tank

$97.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3234-1

Screw-HH Flg 3/8-16 X 3/4

$1.99

$

In Stock, Qty 14

0

13

Exmark 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

14

Exmark 116-5611

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Exmark 117-1221

CANISTER-CARBON, 800CC

$82.99

$

In Stock, only 1 left!

0

18

Exmark 119-8502

HOSE-VENT, FORMED

$6.99

$

Usually ships in 3-6 days

0

19

Exmark 138-8837

Hose, Emissions

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 116-2233

HOSE-VENT, FORMED

$8.99

$

Usually ships in 3-6 days

0

21

Exmark 133-8499

VALVE-CHECK, VACUUM

$16.99

$

In Stock, only 2 left!

0

22

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0
