Exmark VXS750AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler EZT750 (SN: 417930746 & Above) (Rev A) (2025) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 146-1899-03

CROSS SHAFT-DECKLIFT-REAR [BLACK]

$516.99

$

Usually ships in 0 days

2

Exmark 146-1271

ASM-DECK STRUT W/BUSHINGS

$52.99

$

Usually ships in 3-6 days

2:1

Exmark 146-1252

ASM-Deck Strut

$

Currently unavailable 

2:2

Exmark 142-5095

BUSHING-IGUS FLNG .75X1

$5.99

$

In Stock, Qty 5

2:3

Exmark 146-1251

Bushing

$

Currently unavailable 

3

Exmark 121-2111

SCREW-HH

$34.99

$

Usually ships in 3-6 days

4

Exmark 142-8396

NUT-FLNG 5/8-18 CTRLOCK GR G

$3.99

$

Usually ships in 3-6 days

5

Exmark 142-6519

ASM-DECK STRUT PIN

$28.99

$

Usually ships in 3-6 days

6

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

8

Exmark 142-7944-03

Weld-Arm-Decklift-Front-RH

$127.99

$

Usually ships in 3-6 days

9

Exmark 142-7939

TRUNION-DECK LIFT

$24.99

$

Usually ships in 3-6 days

10

Exmark 146-3072

LINK-DECKLIFT

$25.99

$

Usually ships in 3-6 days

11

Exmark 142-7940

SPACER-DECKLIFT

$6.49

$

In Stock, Qty 5

12

Exmark 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 16

13

Exmark 142-7945-03

Weld-Arm-Decklift-Front-LH

$127.99

$

Usually ships in 3-6 days

14

Exmark 135-3954

SPACER

$16.99

$

Usually ships in 3-6 days

15

Exmark 146-1724-03

LINK-DECKLIFT-RH

$197.99

$

Usually ships in 0 days

16

Exmark 130-6481

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

17

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

18

Exmark 116-0886

SPRING-EXTENSION

$149.99

$

In Stock, only 1 left!

19

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, Qty 8

20

Exmark 146-1725-03

LINK-DECKLIFT-LH

$197.99

$

Usually ships in 0 days

21

Exmark 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 5

22

Exmark 142-9150

Plate-Inner-HOC

$137.99

$

Usually ships in 3-6 days

23

Exmark 142-8589-03

Plate-Outer-HOC

$137.99

$

Usually ships in 3-6 days

24

Exmark 146-5176

SUPPORT-HOC SHAFT

$20.99

$

Usually ships in 0 days

26

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 5

27

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

28

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

29

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 15

30

Exmark 62-1330

BOLT-SHOULDER

$12.99

$

In Stock, only 2 left!

31

Exmark 142-6679-03

GRIP-HANDLE-DECKLIFT

$90.99

$

Usually ships in 3-6 days

32

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

33

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 16

34

Exmark 142-6720

SPACER-HOC

$2.49

$

Usually ships in 3-6 days

35

Exmark 103-0357

WASHER

$2.99

$

Usually ships in 3-6 days

36

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

37

Exmark 142-6805

DECAL-HEIGHT OF CUT

$17.99

$

Usually ships in 3-6 days

38

Exmark 142-7290

PAWL-DECKLIFT

$8.99

$

Usually ships in 3-6 days

39

Exmark 146-1897

PLUNGER-TOP

$109.99

$

Usually ships in 0 days

40

Exmark 142-7365

SPRING-COMPRESSION

$1.99

$

Usually ships in 3-6 days

41

Exmark 142-7437

SCREW-SHOULDER-CAP

$9.99

$

Usually ships in 3-6 days

42

Exmark 117-1031

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

43

Exmark 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

45

Exmark 142-8673

Pawl-Lock-Decklift

$124.99

$

Usually ships in 3-6 days

46

Exmark 142-9151

Plate-Doubler-HOC-Lock

$51.99

$

Usually ships in 3-6 days

47

Exmark 114-8629

BOLT-SHOULDER

$20.99

$

In Stock, only 2 left!

48

Exmark 146-1896

SPACER

$9.99

$

Usually ships in 0 days

49

Exmark 119-1065

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

50

Exmark 110-9458

SPRING-EXTENSION

$3.99

$

In Stock, Qty 6

51

Exmark 121-6991

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

52

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

53

Exmark 142-8897

SPACER 1.13 O.D. X .81 I.D. X 2.05L

$24.99

$

In Stock, only 2 left!

54

Exmark 2412-126

R-Clamp

$3.49

$

Usually ships in 3-6 days

55

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

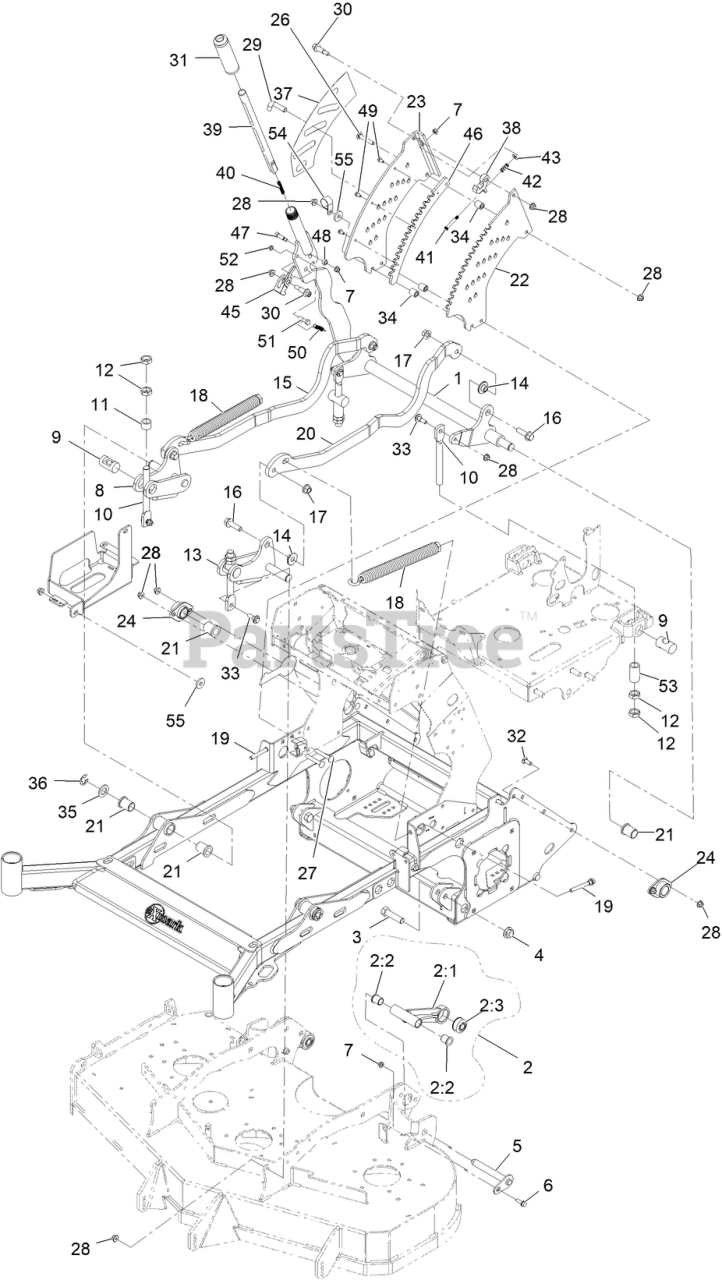

VXS750AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler EZT750 (SN: 417930746 & Above) (Rev A) (2025) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
