VXS750AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler EZT750 (SN: 417930746 & Above) (Rev A) (2025) Electrical Assembly Parts Diagram

48" Vertex S-Series Stand-On Mower, Kohler EZT750

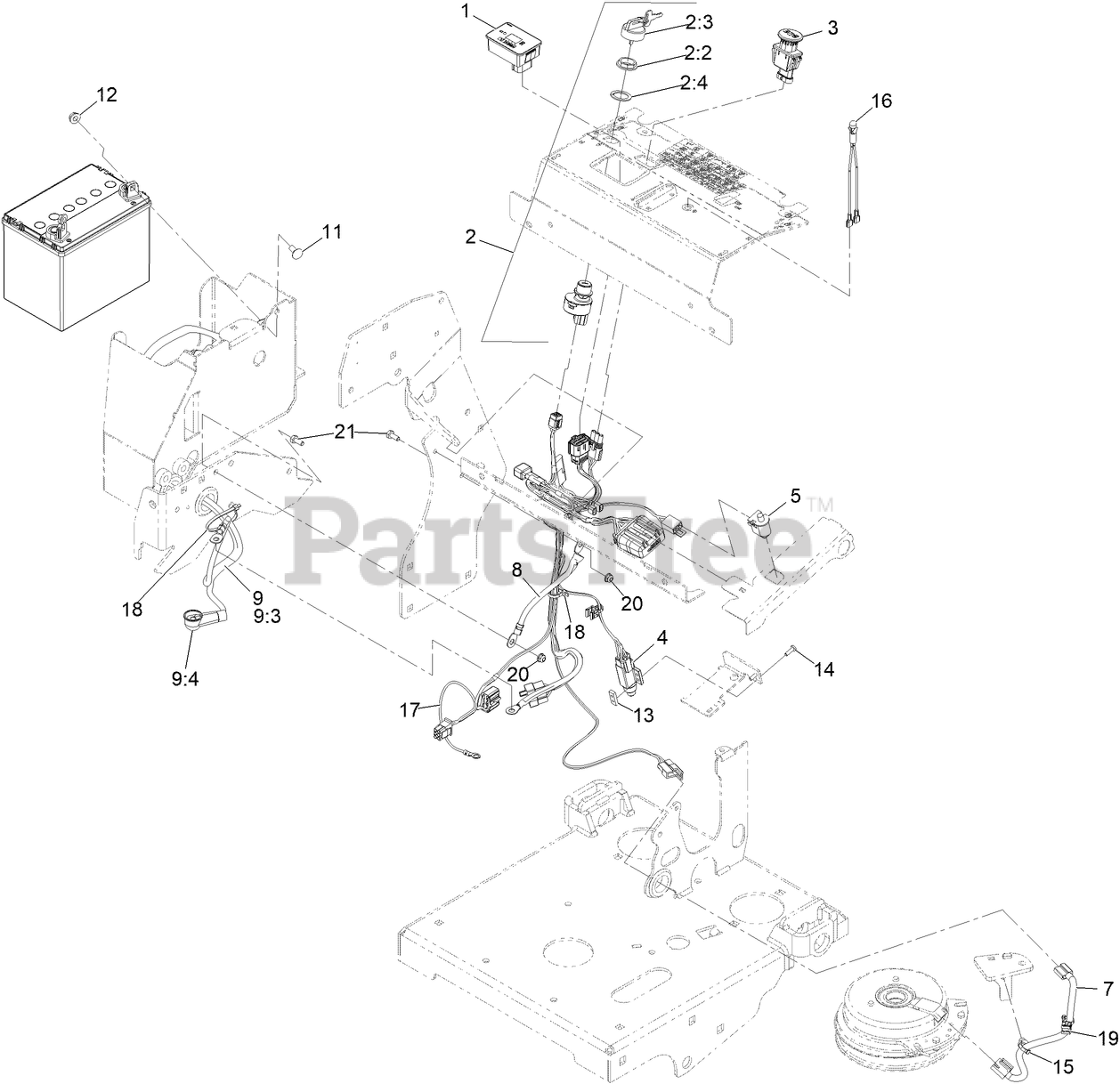

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-7401

MODULE-HOUR METER

$167.99

$

Usually ships in 3-6 days

0

2

Exmark 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 15

0

2:2

Exmark 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 2 left!

0

2:3

Exmark 106-5270

IGNITION KEY SET

$23.99

$

In Stock, Qty 14

0

2:4

Exmark 108-8659

WASHER-BACKUP

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6187

SWITCH-PTO, SEALED

$58.99

$

In Stock, Qty 9

0

4

Exmark 99-7407

USE 107-0340
(Superseded to 107-0340)

$61.99

$

Usually ships in 3-6 days

0

5

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

7

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 142-6462

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$386.99

$

Usually ships in 3-6 days

0

9

Exmark 142-6765

HARNESS-BATTERY

$79.99

$

Usually ships in 3-6 days

0

9:3

Exmark 32180-008

Insulator-Lug, Red

$5.99

$

Usually ships in 0 days

0

9:4

Exmark AU21001545

Boot-Battery, Red

$

$

Currently unavailable

11

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 12

0

14

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 5

0

16

Exmark 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, only 4 left!

0

17

Exmark 142-8461

Harness-Indicator Light, EFI

$74.99

$

Usually ships in 3-6 days

0

18

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

19

Exmark 32180-078

Clip-Edge

$5.99

$

Usually ships in 3-6 days

0

20

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
