VXS750AKC48400 - Exmark 48" Vertex S-Series Stand-On Mower, Kohler EZT750 (SN: 417930746 & Above) (Rev A) (2025) Engine Assembly Parts Diagram

48" Vertex S-Series Stand-On Mower, Kohler EZT750

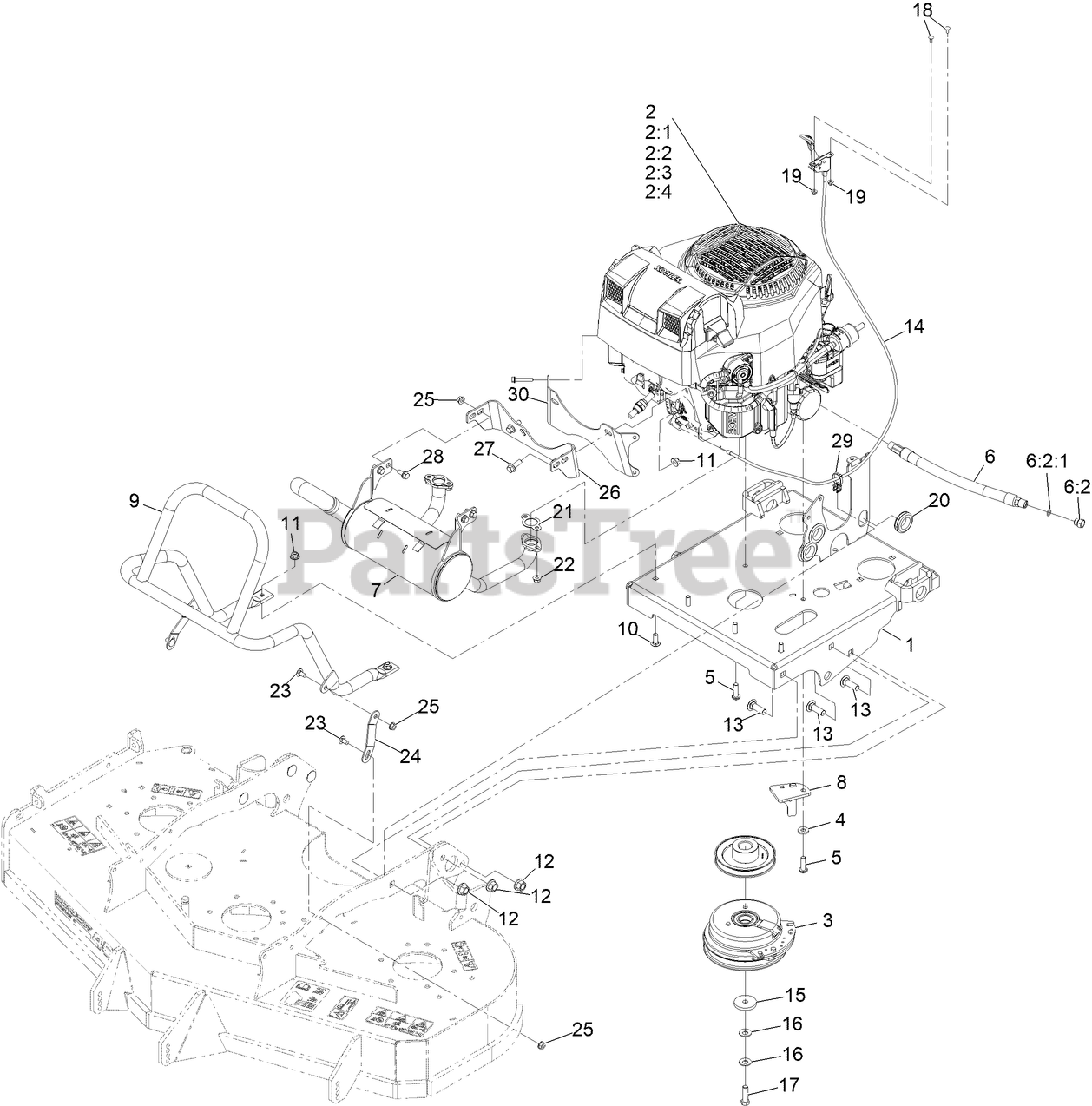

Engine Assembly Parts Diagram

  • Title

1

Exmark 146-3104-01

ASM-ENGINE DECK

$502.99

$

Usually ships in 0 days

0

2

Engine-Kohler Ek-Ezt750-3030

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

2:1

Element Pre-Cleaner

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

2:2

Kohler 16 083 01-S Engine Air Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

2:3

Filter-Oil

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

2:4

Kohler 24 050 13-S Fuel Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

3

Exmark 146-3887

Clutch, Cms-175

$433.99

$

In Stock, only 2 left!

0

4

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

5

Exmark 146-2944

Screw-PH-T45

$

$

Currently unavailable

6

Exmark 116-5108

OIL DRAIN HOSE ASM

$42.99

$

In Stock, only 1 left!

0

6:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

6:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Exmark 146-4016

MUFFLER- KOHLER EFI

$334.99

$

Usually ships in 0 days

0

8

Exmark 142-6567

ASM-CLUTCH ANCHOR

$20.99

$

Usually ships in 3-6 days

0

9

Exmark 142-6783-03

Tube-Guard Muffler

$181.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 14

0

13

Exmark 3233-2

Screw-CARR

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 116-4919

CONTROL,THROTTLE

$45.99

$

In Stock, only 2 left!

0

15

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 5

0

16

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

17

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, only 1 left!

0

18

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

19

Exmark 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 108-3723

GROMMET

$8.99

$

Usually ships in 3-6 days

0

21

Exmark 110-6697

GASKET-EXHAUST

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!

0

23

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

24

Exmark 142-7748-03

Strap, Muffler Guard

$6.49

$

Usually ships in 3-6 days

0

25

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

26

Exmark 132-1168

BRACKET-MUFFLER

$43.99

$

In Stock, only 1 left!

0

27

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

28

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

29

Exmark 32180-082

Clip-Edge W/Tie, Perpendicular

$6.99

$

Usually ships in 3-6 days

0

30

Exmark 131-7400

Bracket-Muffler

$143.99

$

Usually ships in 3-6 days

0
