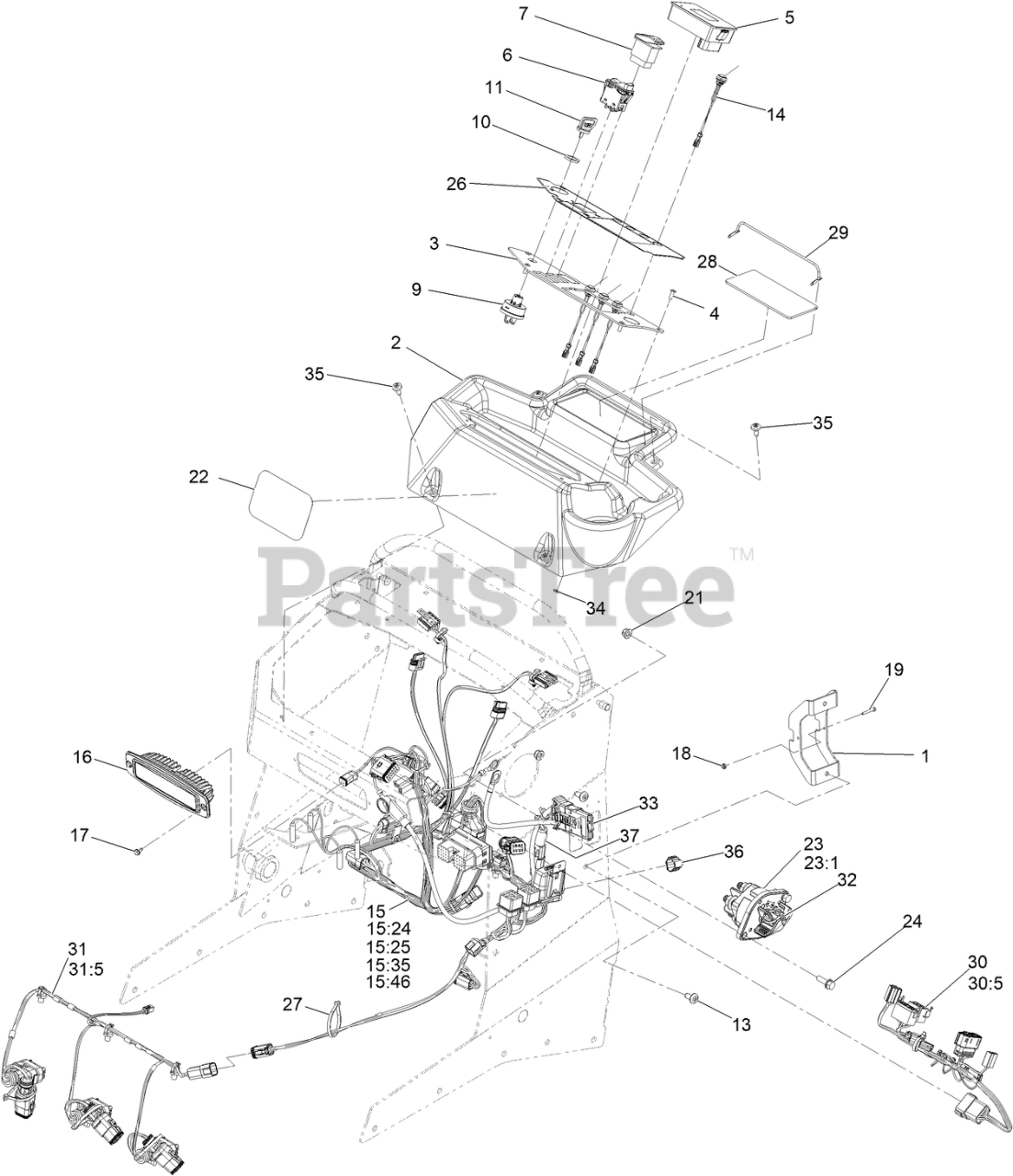

VXV060B1852A00 - Exmark 52" Vertex V-Series Stand-On Mower, Electric (SN: 413950474 - 416150474) (Rev B) (2023) Control Panel and Harness Assembly Parts Diagram

52" Vertex V-Series Stand-On Mower, Electric

Control Panel and Harness Assembly Parts Diagram

  • Title

1

Exmark 145-3597-03

BRACKET-CHARGER, DUAL

$30.99

$

Usually ships in 3-6 days

0

2

Exmark 144-1576

DASH-CONTROL PANEL

$451.99

$

Usually ships in 0 days

0

3

Exmark 147-1685-03

PLATE-CONTROL PANEL

$25.99

$

Usually ships in 0 days

0

4

Exmark 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

5

Exmark 122-1201

MODULE-DISPLAY

$222.99

$

Usually ships in 3-6 days

0

6

Exmark 139-6367

SWITCH-ROCKER, (ON)-ON-OFF

$37.99

$

In Stock, only 3 left!

0

7

Exmark 95-8999

SWITCH

$48.99

$

In Stock, only 1 left!

0

9

Exmark 139-7716

SWITCH-KEY, SPST

$42.99

$

Usually ships in 3-6 days

0

10

Exmark 101884

NUT

$7.99

$

In Stock, only 1 left!

0

11

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 20+

0

11

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

13

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

14

Exmark 136-9678

SWITCH-PUSHBUTTON

$62.99

$

Usually ships in 3-6 days

0

15

Exmark 140-9567

HARNESS-WIRE, MAIN

$1472.99

$

Usually ships in 0 days

0

15:24

Exmark 121-8861

FUSE-MINI BLADE, 2 AMP

$4.99

$

Usually ships in 3-6 days

0

15:25

Exmark 121-8864

FUSE-MINI BLADE, 5 AMP

Note: Not illustrated

$5.99

$

Usually ships in 3-6 days

0

15:35

Exmark 117-4724

Fuse-Blade, 10A

$

$

Currently unavailable

15:46

Exmark 121-8865

Fuse-Mini Blade, 7.5 Amp

$6.99

$

Usually ships in 3-6 days

0

16

Exmark 139-8089

MOUNT-FLUSH, LIGHT

$105.99

$

Usually ships in 3-6 days

0

17

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 10

0

19

Exmark 32105-9

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

22

Exmark 126-7457

DECAL-X-LOGO

$9.99

$

Usually ships in 3-6 days

0

23

Exmark 122-0603

SWITCH-DISCONNECT

$294.99

$

Usually ships in 3-6 days

0

23:1

Exmark 33006-00

Nut-HF

$1.99

$

Usually ships in 3-6 days

0

24

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

26

Exmark 147-6260

Decal-Panel, Control

$

$

Currently unavailable

27

Exmark 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

28

Exmark 145-3410

PAD-RUBBER, W/ADHESIVE

$9.99

$

Usually ships in 0 days

0

29

Exmark 144-6973

STRAP-ELASTIC

$4.49

$

Usually ships in 0 days

0

30

Exmark 145-3411

HARNESS-WIRE, CONTROL PANEL

$411.99

$

Usually ships in 0 days

0

30:5

Exmark 32180-282

RESISTOR-120 OHM

$31.99

$

Usually ships in 3-6 days

0

31

Exmark 145-3412

HARNESS-WIRE, DECK

$1762.99

$

Usually ships in 0 days

0

31:5

Exmark 32180-282

RESISTOR-120 OHM

$31.99

$

Usually ships in 3-6 days

0

32

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

33

Exmark 140-9596

HARNESS-WIRE, CHARGER PORT

$1047.99

$

Usually ships in 0 days

0

34

Exmark 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 32180-089

CAP-PLUG, 3 WAY

$4.49

$

Usually ships in 3-6 days

0

37

Exmark 112-1540

FERRITE-SNAP ON

$25.99

$

Usually ships in 3-6 days

0
