VXV060B1852A00 - Exmark 52" Vertex V-Series Stand-On Mower, Electric (SN: 413950474 - 416150474) (Rev B) (2023) Deck Assembly Parts Diagram

52" Vertex V-Series Stand-On Mower, Electric

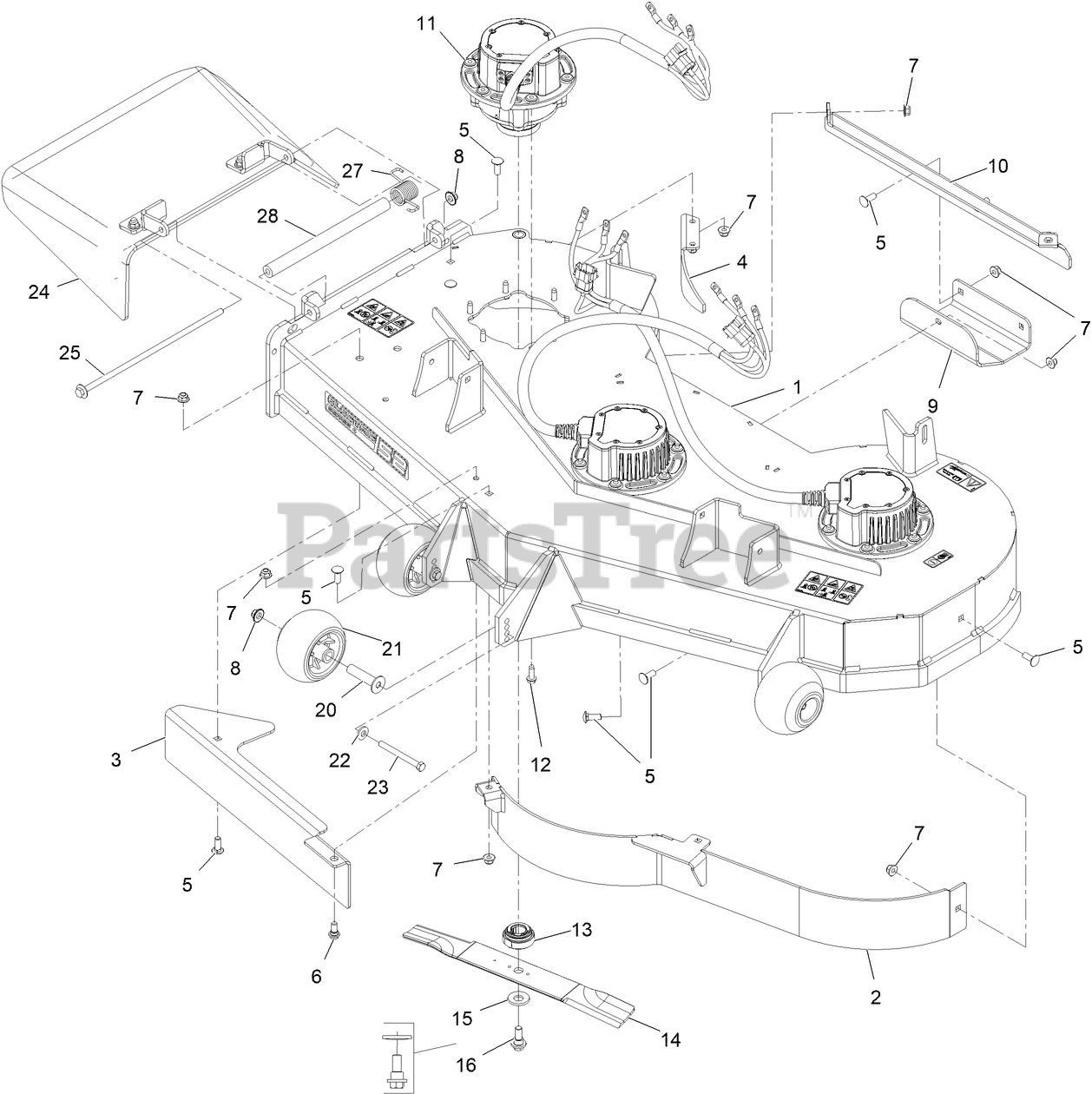

Deck Assembly Parts Diagram

  • Title

1

Exmark 142-8904

DECK ASM, 52IN

$6244.99

$

Usually ships in 0 days

0

2

Exmark 144-3805-01

BAFFLE ASM, FRONT

$181.99

$

Usually ships in 3-6 days

0

3

Exmark 139-8105-01

PLATE-BAFFLE, FORMED

$86.99

$

Usually ships in 3-6 days

0

4

Exmark 142-9135-01

BAFFLE-DOGLEG, 52

$44.99

$

Usually ships in 0 days

0

5

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Exmark 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 8

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 114-1908-01

SKID

$91.99

$

Usually ships in 3-6 days

0

10

Exmark 130-6648-01

BRACKET-SKID

$59.99

$

Usually ships in 3-6 days

0

11

Exmark 147-1689

MOTOR/GEN

$1592.99

$

Usually ships in 3-6 days

0

12

Exmark 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

13

Exmark 145-3439

RETAINER-BLADE

$17.99

$

Usually ships in 3-6 days

0

14

Exmark 145-3504-03

BLADE-18.0IN, MED SAIL

$31.99

$

Usually ships in 3-6 days

0

15

Exmark 125-1736

Washer-Belleville

$4.49

$

In Stock, only 2 left!

0

16

Exmark 145-3499

SCREW-SHOULDER, HWH

$9.49

$

Usually ships in 3-6 days

0

20

Exmark 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

0

21

Exmark 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

22

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

23

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 12

0

24

Exmark 146-1678

ASM, RUBBER DISCHARGE CHUTE

$206.99

$

Usually ships in 0 days

0

25

Exmark 142-8544

Pin, Chute

$9.49

$

In Stock, only 4 left!

0

27

Exmark 108-4052

SPRING-TORSION

$27.99

$

In Stock, only 1 left!

0

28

Exmark 146-2289

SPACER

$7.49

$

Usually ships in 0 days

0
