Exmark VXV060B1852A00 - Exmark 52" Vertex V-Series Stand-On Mower, Electric (SN: 413950474 - 416150474) (Rev B) (2023) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 120-8405-03

Front Cross Shaft ASM [black]

$

Currently unavailable 

2

Pivot ASM, HOC

Note: Not serviced separately

$

Not available 

3

Pivot ASM, HOC

Note: Not serviced separately

$

Not available 

4

Exmark 142-9352

HOC LEVER ASM

$

Not available 

5

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$15.99

$

In Stock, Qty 9

6

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

7

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

8

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 14

9

Exmark 127-0369

BUSHING

$7.99

$

Usually ships in 3-6 days

10

Exmark 3256-62

Washer-Flat

$0.99

$

Usually ships in 3-6 days

11

Exmark 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 14

12

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 8

13

Exmark 138-4932

NUT-HEX FLG

$3.49

$

Usually ships in 3-6 days

14

Exmark 138-4931

SCREW-LOCK

$4.49

$

Usually ships in 3-6 days

15

Exmark 119-6223

WASHER

$6.49

$

Usually ships in 3-6 days

16

Exmark 130-6615

HOC LINK ASM

$154.99

$

Usually ships in 3-6 days

17

Exmark 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 10

18

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

19

Exmark 323-58

BOLT-TAP, HH

$5.99

$

Usually ships in 3-6 days

20

Exmark 116-0886

SPRING-EXTENSION

$149.99

$

In Stock, only 1 left!

21

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, Qty 20+

22

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

23

Exmark 127-1948-03

LINK-LIFT

$71.99

$

Usually ships in 3-6 days

24

Exmark 137-4129

DECK STRUT ASM

$145.99

$

In Stock, only 2 left!

24:2

Exmark 137-4108

BUSHING-RUBBER

$5.99

$

In Stock, only 1 left!

24:3

Exmark 108-6544

SPACER

$13.99

$

In Stock, only 3 left!

25

Exmark 109-9066

YOKE-ADJUST, DECK

$8.49

$

In Stock, only 2 left!

26

Exmark 322-47

SCREW-HH

$2.49

$

In Stock, Qty 14

27

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 18

28

Exmark 130-6589

LINK-LIFT

$29.99

$

In Stock, only 2 left!

29

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 16

30

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

31

Exmark 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 13

32

Exmark 116-2428

BUSHING-FLANGED

$13.99

$

In Stock, only 3 left!

33

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

34

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

35

Exmark 142-9672

PLATE-HOC, OUTER

$90.99

$

Usually ships in 0 days

36

Exmark 121-1760

SPACER

$2.49

$

Usually ships in 3-6 days

37

Exmark 138-4887

PLATE-HOC, INNER

$115.99

$

Usually ships in 3-6 days

38

Exmark 95-6448

SPACER

$6.49

$

Usually ships in 3-6 days

39

Exmark 138-1111

SPACER

$17.99

$

Usually ships in 3-6 days

40

Exmark 116-4701

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

41

Exmark 138-7203

PIN-HOC

$4.99

$

Usually ships in 3-6 days

42

Exmark 116-0756

DECK LIFT CHAIN ASM

$15.99

$

In Stock, only 1 left!

42:1

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 14

42:2

Exmark 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 13

42:3

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

43

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

44

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 9

45

Exmark 133-1431

SPACER-SPLIT

$6.49

$

Usually ships in 3-6 days

46

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.49

$

In Stock, Qty 20+

47

Exmark 32128-19

NUT-HF

$1.99

$

In Stock, only 1 left!

48

Exmark 146-1210

DECAL-DECK RAKE,LH

$12.99

$

Usually ships in 0 days

49

Exmark 146-1269

DECAL-DECK RAKE,RH

$12.99

$

Usually ships in 0 days

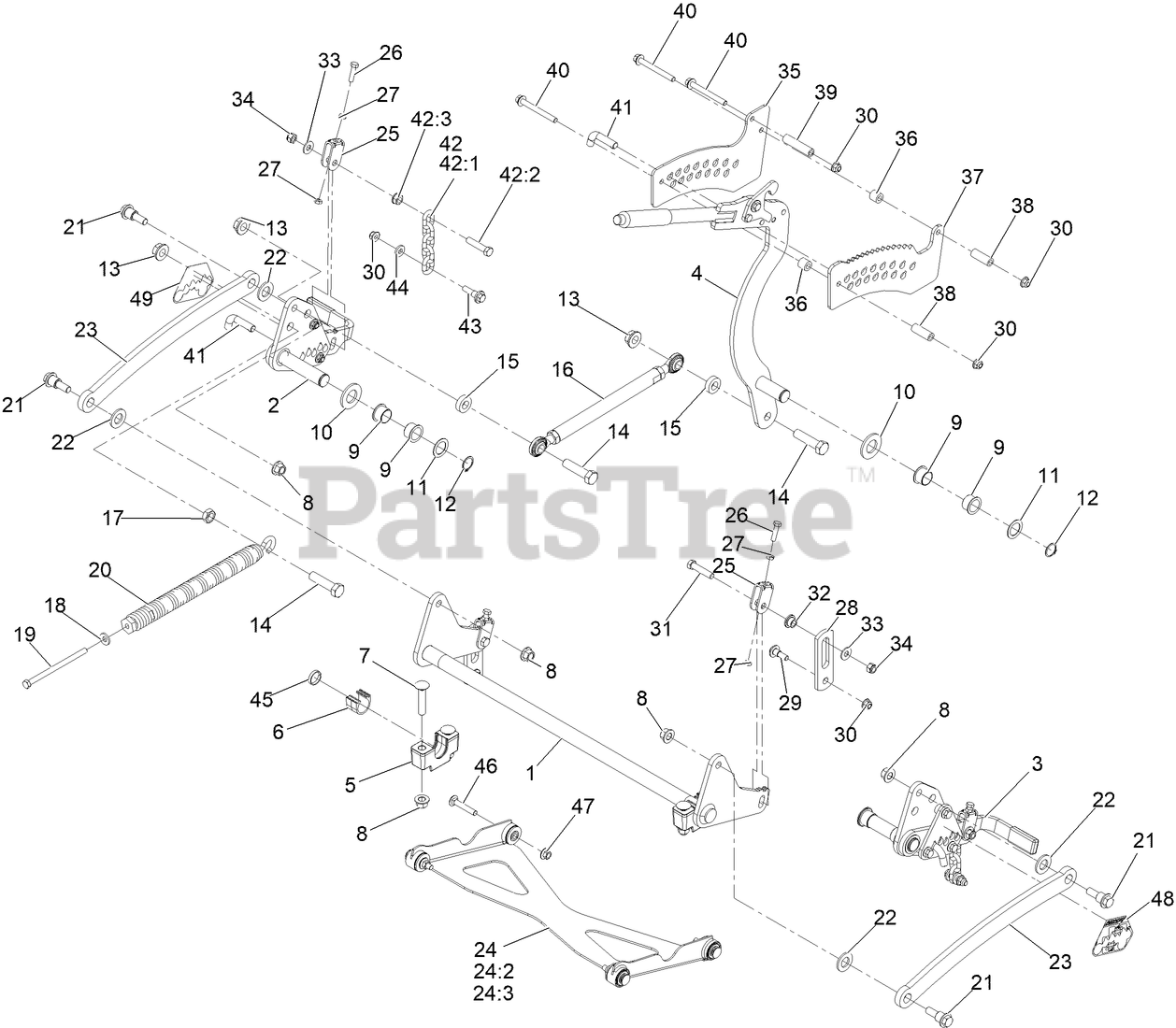

VXV060B1852A00 - Exmark 52" Vertex V-Series Stand-On Mower, Electric (SN: 413950474 - 416150474) (Rev B) (2023) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
