VXV060B1852A00 - Exmark 52" Vertex V-Series Stand-On Mower, Electric (SN: 413950474 - 416150474) (Rev B) (2023) Main Frame Assembly Parts Diagram

52" Vertex V-Series Stand-On Mower, Electric

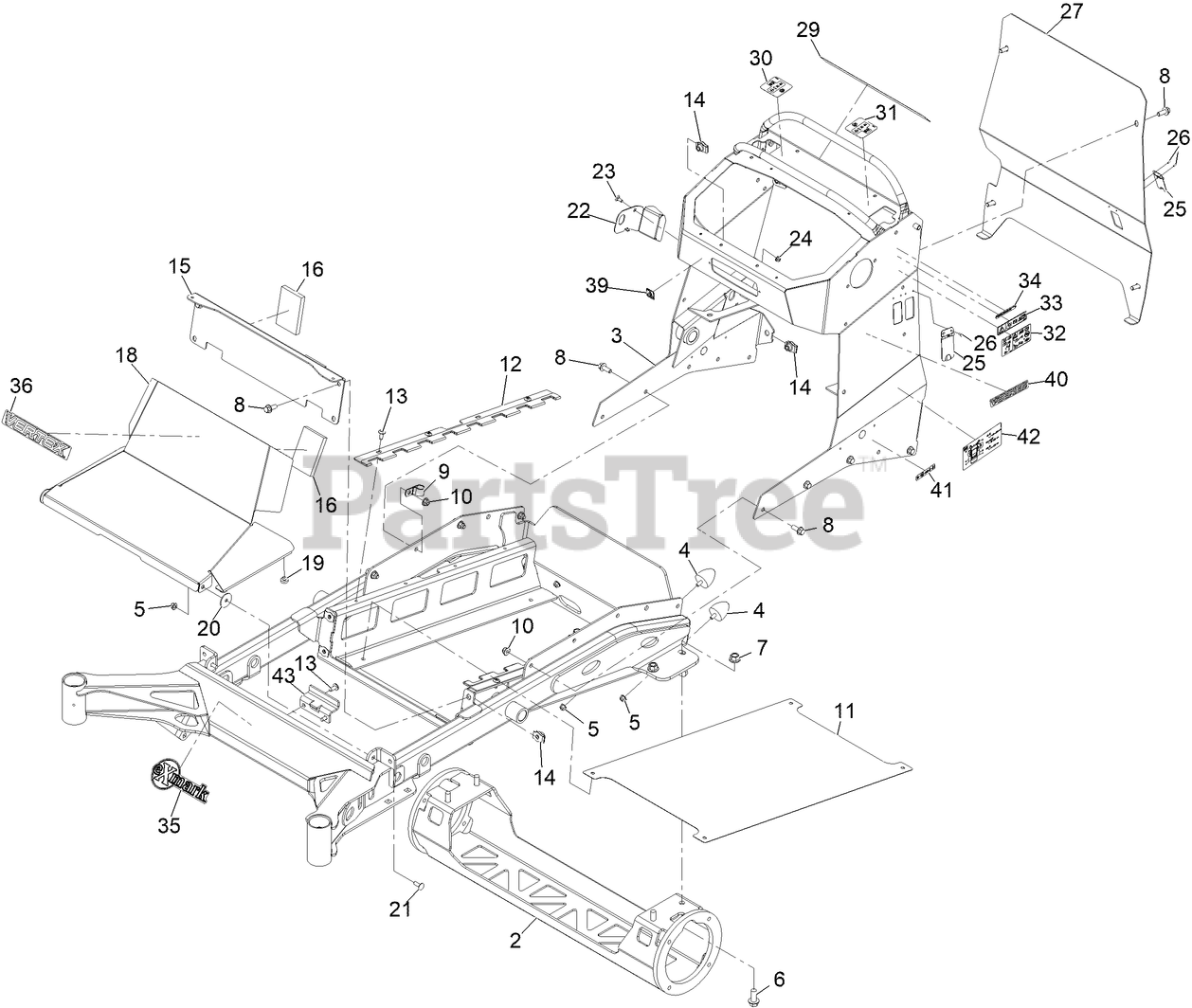

Main Frame Assembly Parts Diagram

  • Title

2

Exmark 144-3840-01

Frame-Axle ASM [red]

$

$

Currently unavailable

3

Exmark 142-9353

TOWER ASM

$868.99

$

Usually ships in 0 days

0

4

Exmark 114-1926

BUMPER-RUBBER

$30.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

6

Exmark 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

7

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 14

0

8

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

9

Exmark 2412-4

CLAMP-R

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 145-3403-03

PLATE-SKID

$64.99

$

Usually ships in 3-6 days

0

12

Exmark 144-3874-03

BRACKET-RETENTION, BATTERY

$44.99

$

Usually ships in 3-6 days

0

13

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

14

Exmark 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

15

Exmark 144-6957-03

PLATE-BATTERY MNT

$67.99

$

Usually ships in 3-6 days

0

16

Exmark 100-2196

PAD-FOAM

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 142-9162-03

COVER-MOTOR CONTROLLER

$151.99

$

Usually ships in 0 days

0

19

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

20

Exmark 107-3002

WASHER-NYLON

$3.49

$

In Stock, only 4 left!

0

21

Exmark 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

22

Exmark 144-6862

PLATE-LATCH

$20.99

$

Usually ships in 0 days

0

23

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 144-6628

PLATE-COVER, SPRING

$13.99

$

Usually ships in 0 days

0

26

Exmark 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 144-3876-03

PLATE-COVER, PLATE

$137.99

$

Usually ships in 3-6 days

0

29

Exmark 144-7002

DECAL-WARNING

$9.49

$

Usually ships in 0 days

0

30

Exmark 144-7004

DECAL-OPC CONTROL, RIGHT

$6.49

$

Usually ships in 0 days

0

31

Exmark 144-7003

DECAL-OPC CONTROL, LEFT

$6.49

$

Usually ships in 0 days

0

32

Exmark 147-0289

DECAL-CHARGING PORT

$6.49

$

Usually ships in 0 days

0

33

Exmark 144-7008

DECAL-SERVICE, SHUT-OFF

$7.99

$

Usually ships in 0 days

0

34

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 126-6877

DECAL, EXMARK LOGO

$8.49

$

In Stock, only 1 left!

0

36

Exmark 142-8185

DECAL-VERTEX LOGO

$4.99

$

Usually ships in 3-6 days

0

39

Exmark 147-0290

DECAL-LIGHT, WARNING

$7.49

$

Usually ships in 0 days

0

40

Exmark 146-1207

Decal-V-Series

$

$

Currently unavailable

41

Exmark 146-1266

DECAL-TRANSMISSION FLUID

$5.99

$

Usually ships in 0 days

0

42

Exmark 146-1265

DECAL-SERVICE AID

$9.99

$

Usually ships in 0 days

0

43

Exmark 146-0272-01

Bracket-Cover Stop

$

$

Currently unavailable
