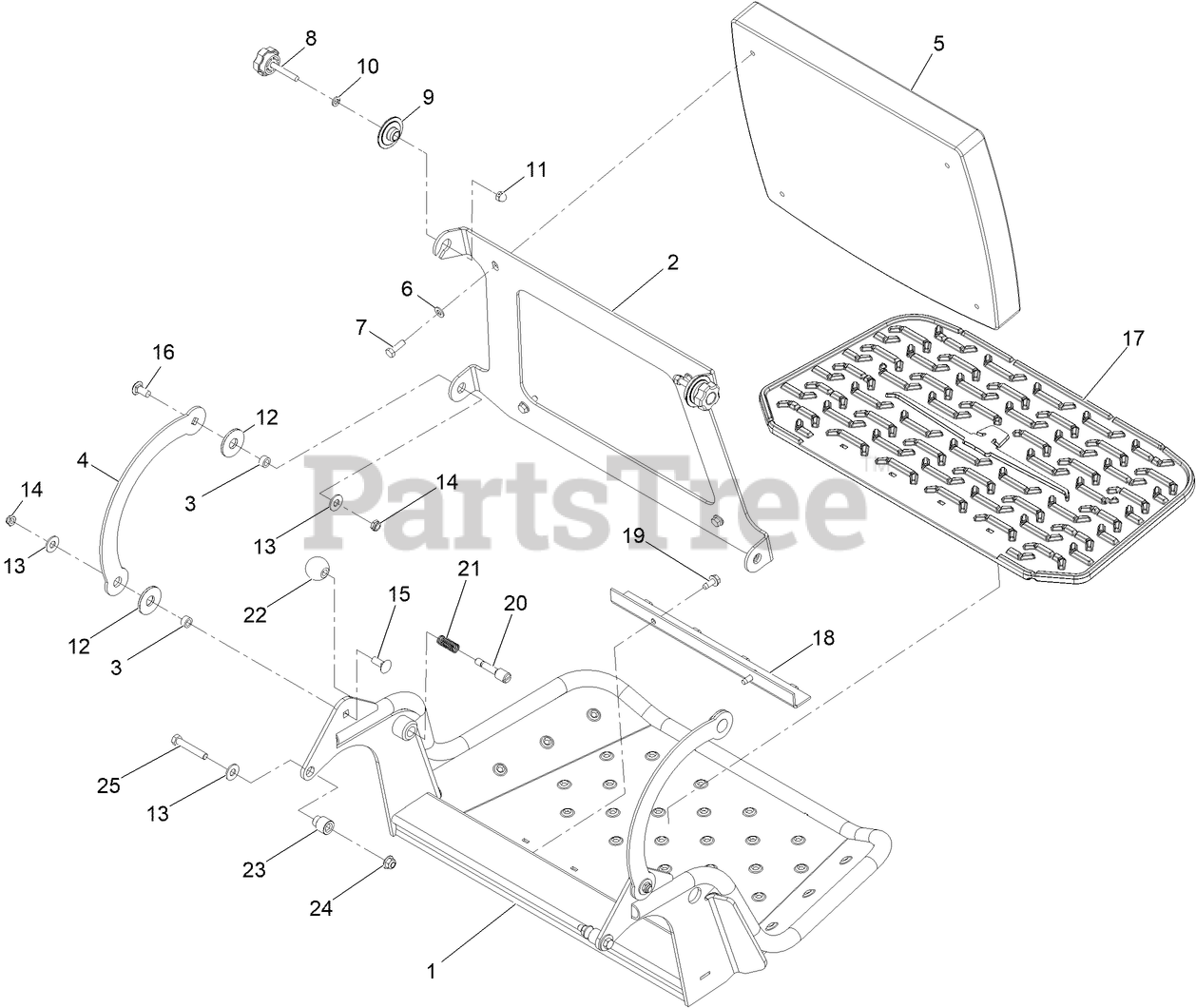

VXV060B1852A00 - Exmark 52" Vertex V-Series Stand-On Mower, Electric (SN: 413950474 - 416150474) (Rev B) (2023) Platform and Cushion Assembly Parts Diagram

52" Vertex V-Series Stand-On Mower, Electric

Platform and Cushion Assembly Parts Diagram

  • Title

1

Exmark 120-8475-03

USE 120-8475-03SP

$

$

Not available

2

Exmark 120-8499-03

HINGE-PAD

$173.99

$

Usually ships in 3-6 days

0

3

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

4

Exmark 114-1915-03

LINK-PAD

$34.99

$

Usually ships in 3-6 days

0

5

Exmark 142-9187

CUSHION PAD ASM

$324.99

$

Usually ships in 0 days

0

6

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Exmark 121-7999

SCREW-HH

$1.49

$

In Stock, Qty 8

0

8

Exmark 133-1426

KNOB

$5.49

$

In Stock, Qty 11

0

9

Exmark 116-2886

SLIDE-BUSHING

$6.99

$

In Stock, Qty 15

0

10

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

11

Exmark 137-4808

NUT-ACORN

$1.99

$

In Stock, Qty 6

0

12

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.99

$

In Stock, Qty 20+

0

13

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 3231-27

SCREW-CARR

$4.99

$

In Stock, only 3 left!

0

17

Exmark 126-7157

MAT-PLATFORM

$120.99

$

In Stock, only 1 left!

0

18

Exmark 114-1920-03

CLAMP-SHIELD

$45.99

$

Usually ships in 3-6 days

0

19

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

20

Exmark 119-8650

PIN-LATCH

$21.99

$

In Stock, only 1 left!

0

21

Exmark 114-5348

SPRING

$2.99

$

In Stock, only 3 left!

0

22

Exmark 1-603175

KNOB-BALL

$12.99

$

In Stock, only 1 left!

0

23

Exmark 132-7583

BUSHING-FLANGED

$5.49

$

In Stock, Qty 18

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 323-45

SCREW-HH

$4.49

$

In Stock, Qty 16

0
