VXX999EKA52600 - Exmark 52" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 416150475 - 417930745) (Rev A) (2024) Park Brake Assembly Parts Diagram

52" Vertex X-Series Stand-On Mower, Kawasaki FX1000

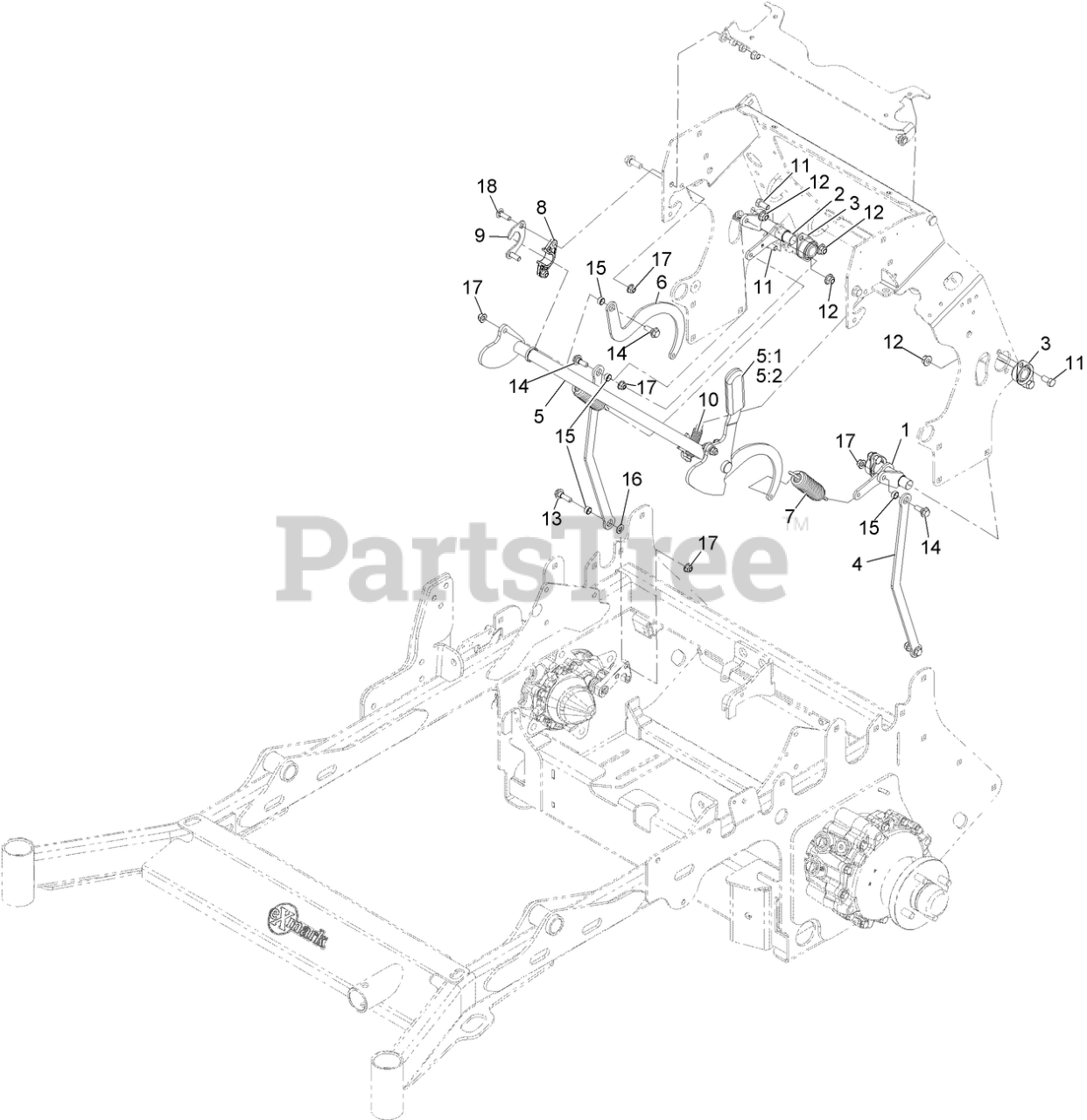

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 146-1104

USE 146-4094

$

$

Not available

2

Exmark 146-1105

USE 146-4095

$

$

Not available

3

Exmark 1-633102

BEARING-FLANGE, SIDE

$20.99

$

In Stock, only 3 left!

0

4

Exmark 146-0845-03

LINK-PARK BRAKE, LOWER

$18.99

$

Usually ships in 0 days

0

5

Exmark 146-0866

ASM,PARK BRAKE HANDLE W/GRIP

$158.99

$

Usually ships in 0 days

0

5:1

Exmark 146-0879-03

ASM-BRAKE UPPER SHAFT

$149.99

$

Usually ships in 0 days

0

5:2

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 8

0

6

Exmark 146-0861-03

LINK-UPPER BRAKE

$18.99

$

Usually ships in 0 days

0

7

Exmark 135-1272

SPRING, EXTENSION

$18.99

$

In Stock, only 2 left!

0

8

Exmark 139-5872

BEARING-FLANGE

$1.99

$

In Stock, Qty 7

0

9

Exmark 135-7867

SUPPORT, BEARING

$5.99

$

In Stock, only 3 left!

0

10

Exmark 126-2127

SPRING-EXTENSION

$8.49

$

In Stock, only 1 left!

0

11

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 108-3744

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

14

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 146-1117

BUSHING-IGUS 7/16X0.25

$5.49

$

Usually ships in 0 days

0

16

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

18

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0
