VXX999EKA52600 - Exmark 52" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 417930746 & Above) (Rev A) (2025) Controls and Tower Assembly Parts Diagram

52" Vertex X-Series Stand-On Mower, Kawasaki FX1000

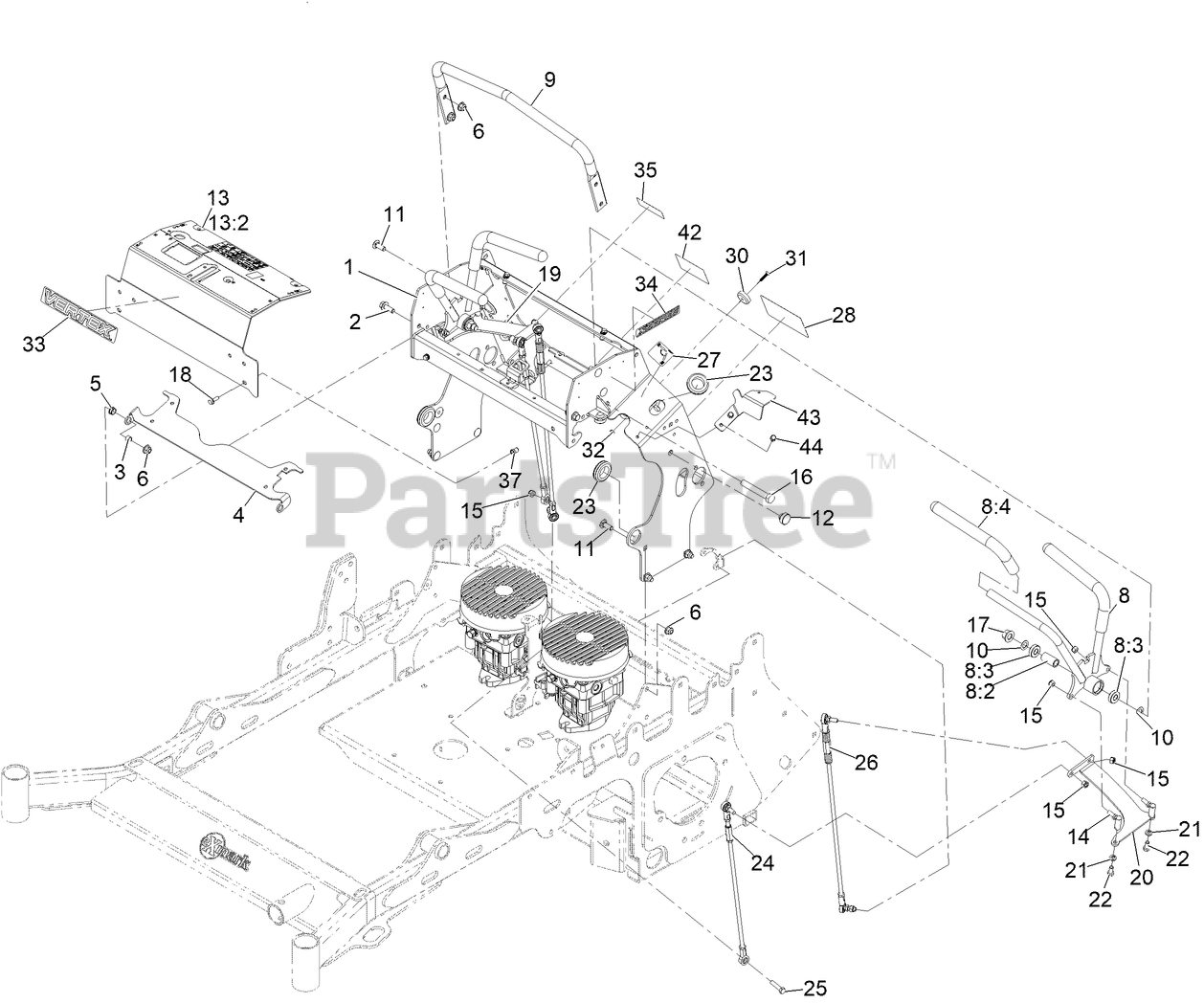

Controls and Tower Assembly Parts Diagram

  • Title

1

Exmark 146-0742-01

ASM-TOWER

$504.99

$

Usually ships in 0 days

0

2

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

3

Exmark 142-7468

SPACER-BRAKE PIVOT

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 146-0881-03

PLATE-MOTION CNTRL LOCK

$39.99

$

Usually ships in 0 days

0

5

Exmark 116-1393

BUSHING,SNAP

$5.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 142-6057

ASM-CTRL LEVER

$235.99

$

Usually ships in 3-6 days

0

8:2

Exmark 142-6579

SPACER

$4.99

$

Usually ships in 3-6 days

0

8:3

Exmark 52-2450

BEARING-WHEEL

$20.99

$

In Stock, Qty 20+

0

8:4

Exmark 116-2357

GRIP-HANDLE, CONTROL

$12.99

$

In Stock, only 2 left!

0

9

Exmark 142-6067-03

BAR-REFERENCE

$39.99

$

Usually ships in 3-6 days

0

10

Exmark 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Exmark 104-1412

BUMPER-RUBBER

$20.99

$

In Stock, only 3 left!

0

13

Exmark 146-1924

ASM-CONTROL PANEL W/DCL

$105.99

$

Usually ships in 0 days

0

13:2

Exmark 146-0993

DECAL-CONTROL PANEL

$

$

Not available

14

Exmark 2411-33

BALLJOINT-RH (W/GROMMET)

$27.99

$

Usually ships in 3-6 days

0

15

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

16

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

17

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

18

Exmark 119-1138

SCREW-HHF

$0.99

$

Usually ships in 0 days

0

19

Exmark 142-6017-03

BRACKET-LINK CTRL LH

$24.99

$

Usually ships in 3-6 days

0

20

Exmark 142-6018-03

BRACKET-LINK CTRL RH

$24.99

$

Usually ships in 3-6 days

0

21

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

22

Exmark 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

23

Exmark 108-3723

GROMMET

$8.99

$

Usually ships in 3-6 days

0

24

Exmark 142-8611

ASM-MOTION CONTROL SHORT

$55.99

$

Usually ships in 3-6 days

0

25

Exmark 3210-8

SCREW-HH

$4.49

$

In Stock, only 3 left!

0

26

Exmark 146-0408

ASM-MOTION CONTROL LONG

$63.99

$

Usually ships in 3-6 days

0

27

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 146-2161

DECAL-SERVICE AID

$7.49

$

Usually ships in 0 days

0

30

Exmark 142-7895

MAGNET-RARE EARTH THIGH PAD

$52.99

$

Usually ships in 3-6 days

0

31

Exmark 142-7830

SCREW FLAT HD #10-24X1.00

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 110-3145

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 142-8185

DECAL-VERTEX LOGO

$4.99

$

Usually ships in 3-6 days

0

34

Exmark 126-6999

DECAL-X-SERIES

$7.49

$

Usually ships in 0 days

0

35

Exmark 146-3284

DECAL-FUSE

$3.49

$

Usually ships in 0 days

0

37

Exmark 138-2760

Nut-Clinch, Hex

$2.49

$

Usually ships in 3-6 days

0

42

Exmark 116-8253

DECAL-DRIVE RELEASE

$3.49

$

Usually ships in 3-6 days

0

43

Exmark 146-3064-03

BRACKET-FUEL LINE CLAMP LH

$16.99

$

Usually ships in 0 days

0

44

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0
