VXX999EKA60600 - Exmark 60" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 416150475 - 417930745) (Rev A) (2024) Engine Assembly Parts Diagram

60" Vertex X-Series Stand-On Mower, Kawasaki FX1000

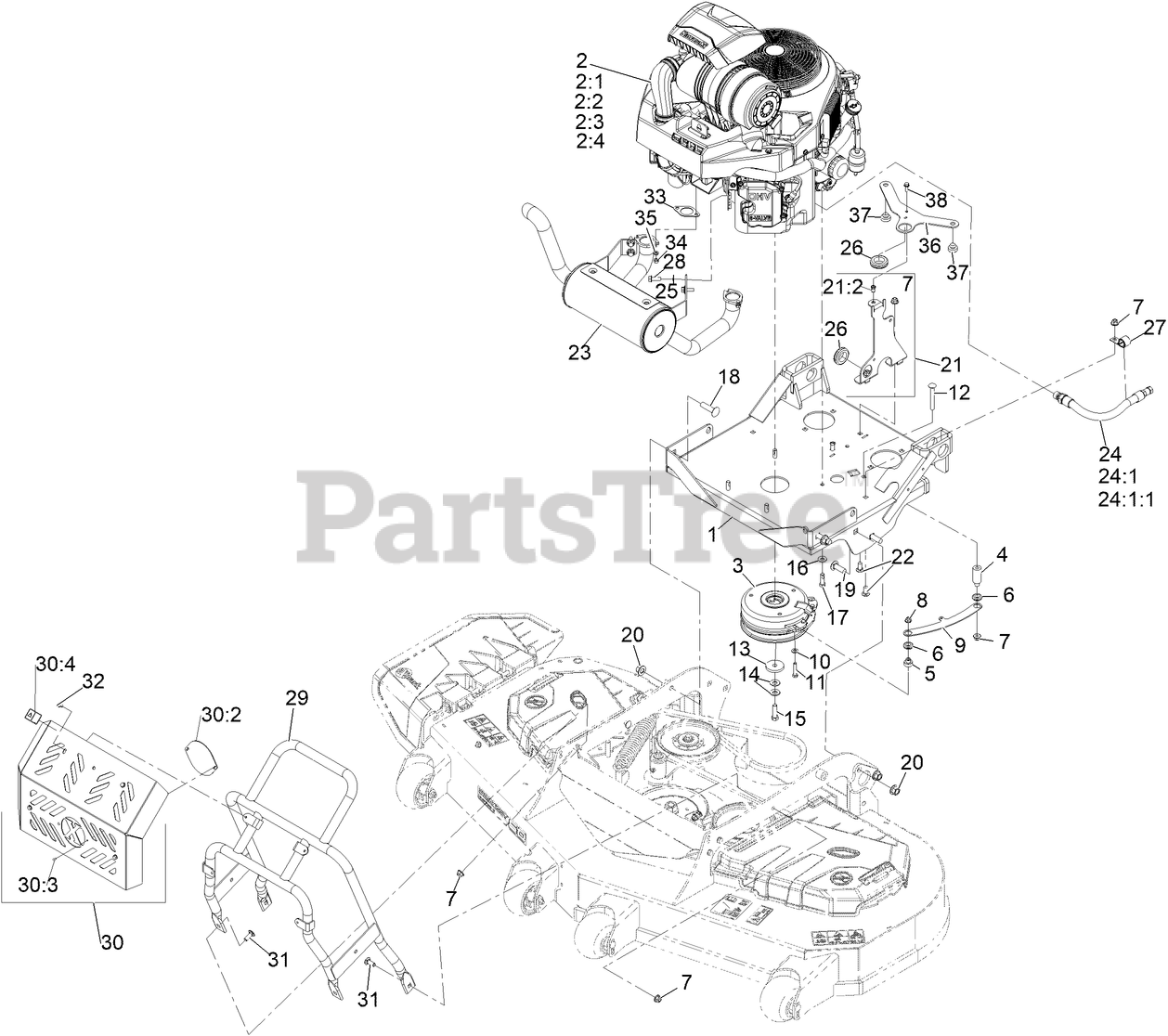

Engine Assembly Parts Diagram

  • Title

1

Exmark 146-0592-01

ASM-ENGINE DECK

$453.99

$

Usually ships in 0 days

0

2

Engine-Kawasaki Fx1000V-EFI

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

2:1

Kawasaki 49065-7007 Engine Oil Filter

Note: Not serviced separately

$

$

Not available

2:2

Kawasaki 49019-0031 Fuel Filter

Note: Not serviced separately

$

$

Not available

2:3

Kawasaki 11013-7045 Safety Filter

Note: Not serviced separately

$

$

Not available

2:4

Kawasaki 11013-7044 Engine Air Filter

Note: Not serviced separately

$

$

Not available

3

Exmark 116-1608

126-4185
(Superseded to 126-4185)

$754.99

$

In Stock, only 1 left!

0

4

Exmark 116-3319

SPACER

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 146-1303

SPACER-STEPPED

$7.99

$

Usually ships in 0 days

0

6

Exmark 93-5108

GROMMET-RUBBER

$17.99

$

In Stock, only 2 left!

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

9

Exmark 146-1301-01

LINK-CLUTCH ANCHOR

$6.49

$

Usually ships in 0 days

0

10

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 9

0

12

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

13

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 5

0

14

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

15

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, only 1 left!

0

16

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

17

Exmark 135-7890

Screw-HH, Patch

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 9002719

SCREW-CARR

$6.99

$

In Stock, only 1 left!

0

19

Exmark 146-3747

Screw-CARR, Sn

$

$

Currently unavailable

20

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

21

Exmark 146-1312

ASM-HOSE GUIDE

$27.99

$

Usually ships in 0 days

0

21:2

Exmark 138-2760

Nut-Clinch, Hex

$2.49

$

Usually ships in 3-6 days

0

22

Exmark 3231-27

SCREW-CARR

$4.99

$

In Stock, only 3 left!

0

23

Exmark 146-1247

MUFFLER- 5.00 OD, 1.5-IN TP

$432.99

$

Usually ships in 0 days

0

24

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$41.99

$

In Stock, Qty 6

0

24:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

24:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

25

Exmark 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Exmark 108-3723

GROMMET

$8.99

$

Usually ships in 3-6 days

0

27

Exmark 120-5018

CLIP-OPEN J, COATED

$4.49

$

Usually ships in 0 days

0

28

Exmark 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

29

Exmark 146-1463-03

FRAME-ENGINE GUARD

$453.99

$

Usually ships in 0 days

0

30

Exmark 146-1470

COVER ASM-ENGINE GUARD

$69.99

$

Usually ships in 0 days

0

30:2

Exmark 146-0989-01

PLATE-LOGO

$4.99

$

Usually ships in 0 days

0

30:3

Exmark 3269-31

RIVET-POP

$3.99

$

In Stock, only 2 left!

0

30:4

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

31

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

32

Exmark 93-6083

SCREW-HWH

$1.49

$

In Stock, Qty 8

0

33

Exmark 146-0413

GASKET, EXHAUST

$6.49

$

Usually ships in 3-6 days

0

34

Exmark 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

35

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

36

Exmark 146-1119-03

PLATE-HOLD DOWN

$12.99

$

Usually ships in 0 days

0

37

Exmark 104-1412

BUMPER-RUBBER

$20.99

$

In Stock, only 3 left!

0

38

Exmark 119-1138

SCREW-HHF

$0.99

$

Usually ships in 0 days

0
