VXX999EKA72600 - Exmark 72" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 416150475 - 417930745) (Rev A) (2024) Caster Wheel and Fork Assembly Parts Diagram

72" Vertex X-Series Stand-On Mower, Kawasaki FX1000

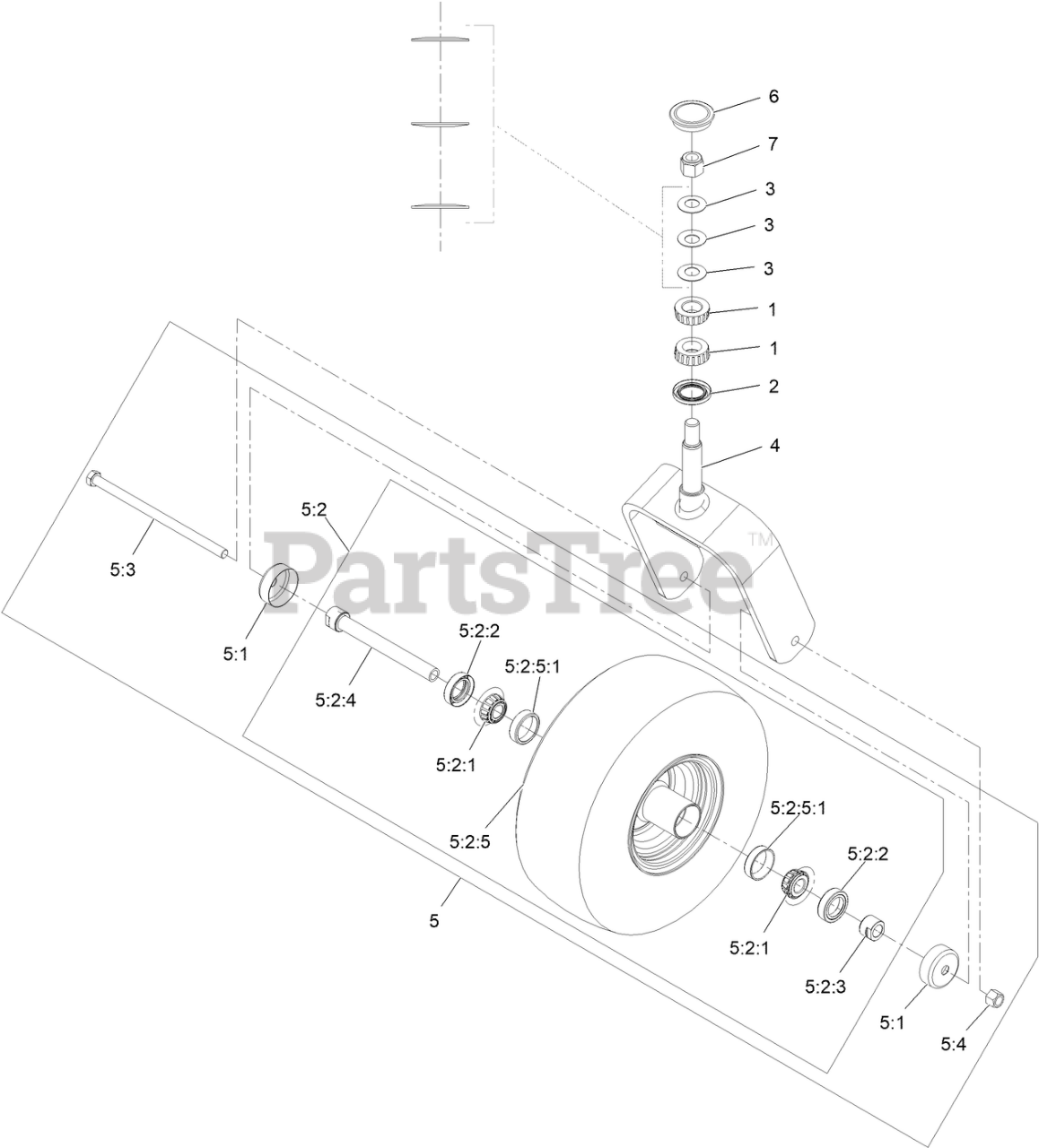

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

2

Exmark 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 146-1058-01

FORK-CASTER

$187.99

$

Usually ships in 0 days

0

5

Exmark 116-8644

ASM-WHL AND TIRE

$385.99

$

Usually ships in 3-6 days

0

5:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

5:2

ASM-Whl And Tire

Note: Not serviced separately

$

$

Not available

5:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$23.99

$

In Stock, Qty 17

0

5:2:2

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, only 3 left!

0

5:2:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 6

0

5:2:4

Exmark 126-5361

AXLE CASTER ASM

$20.99

$

In Stock, Qty 9

0

5:2:5

ASM-Wheel Tire 15X6.0-6

Note: Not serviced separately

$

$

Not available

5:2:5:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 6

0

5:3

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 9

0

5:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

7

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 1 left!

0
