VXX999EKA72600 - Exmark 72" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 416150475 - 417930745) (Rev A) (2024) Deck Assembly Parts Diagram

72" Vertex X-Series Stand-On Mower, Kawasaki FX1000

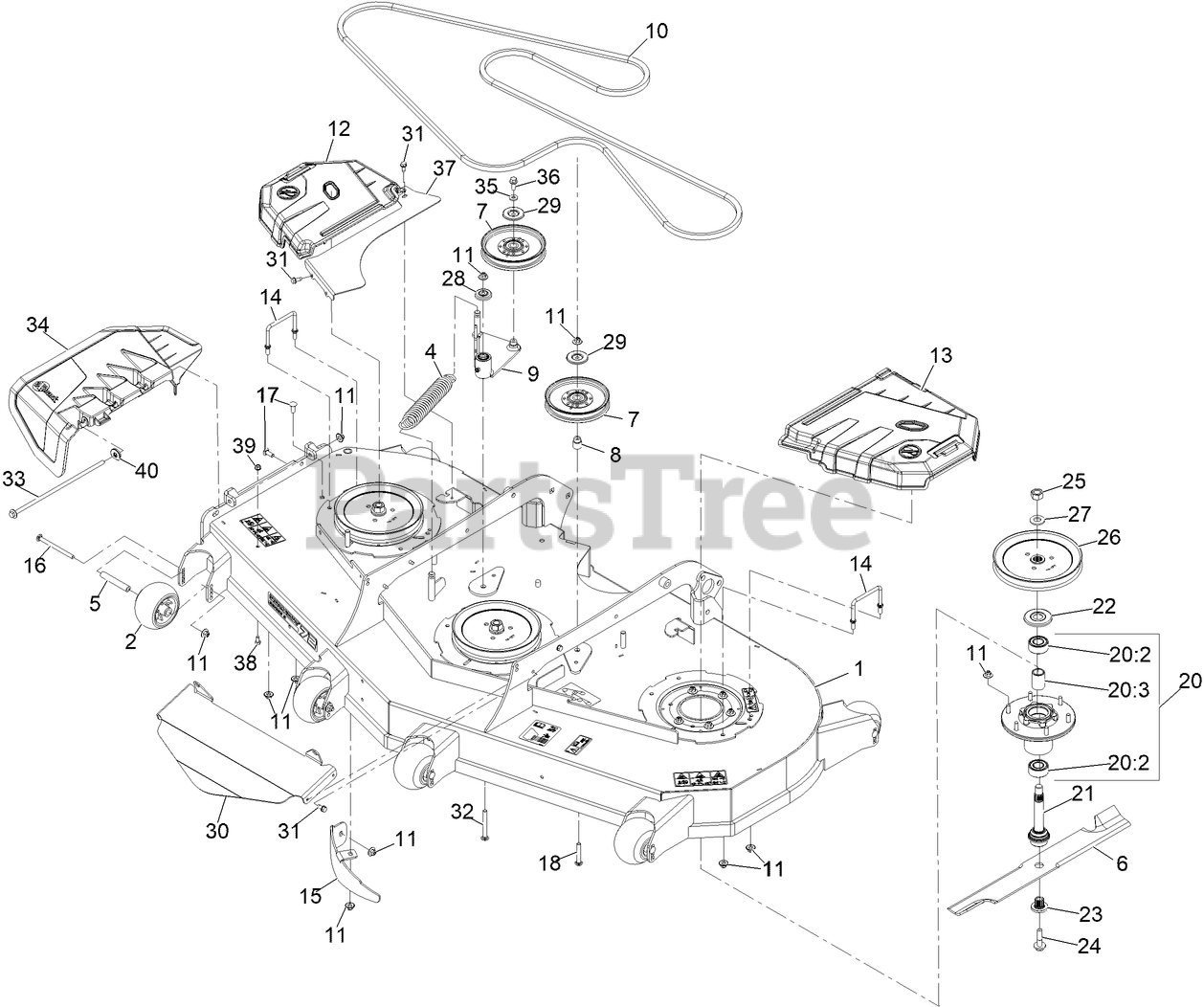

Deck Assembly Parts Diagram

  • Title

1

Exmark 146-0219

ASM-DECK W/DECALS 726

$2913.99

$

Usually ships in 0 days

0

2

Exmark 146-1989

ROLLER-SCALP, ANTI

$24.99

$

In Stock, Qty 12

0

4

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

0

5

Exmark 146-1990

SPACER-AXLE

$7.99

$

In Stock, Qty 12

0

6

Exmark 116-5171

USE 116-5171-S
(Superseded to 116-5171-S)

Note: Optional Equipment

$46.99

$

In Stock, Qty 20+

0

6

Exmark 103-6404

USE 103-6404-S
(Superseded to 103-6404-S)

$46.99

$

In Stock, Qty 20+

0

6

Exmark 103-6394

USE 103-6394-S
(Superseded to 103-6394-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$41.99

$

In Stock, Qty 20+

0

6

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

Note: Optional Equipment

$41.99

$

In Stock, Qty 20+

0

6

Exmark 103-6384

USE 103-6384-S
(Superseded to 103-6384-S)

Note: Optional Equipment

$46.99

$

In Stock, Qty 20+

0

7

Exmark 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 13

0

8

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

9

Exmark 126-2585

IDLER ARM ASM

$203.99

$

Usually ships in 3-6 days

0

10

Exmark 146-0411

BELT - 5V 171.5

$201.99

$

Usually ships in 0 days

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 142-7105

SHIELD, RT

$31.99

$

Usually ships in 3-6 days

0

13

Exmark 142-7104

SHIELD, LT

$31.99

$

Usually ships in 3-6 days

0

14

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

15

Exmark 116-5834-01

BAFFLE-DOGLEG, LZ72

$90.99

$

Usually ships in 3-6 days

0

16

Exmark 109-6795

BOLT-CARR

$5.49

$

In Stock, only 4 left!

0

17

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

20

Exmark 135-3437

ASM-CUTTER HSG

$195.99

$

In Stock, Qty 6

0

20:2

Exmark 134-6634

BEARING-3205 TRASHGUARD

$34.99

$

In Stock, only 2 left!

0

20:3

Exmark 135-3440

SPACER-BEARING

$8.99

$

In Stock, only 2 left!

0

21

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) to spindle shaft

$96.99

$

In Stock, Qty 7

0

22

Exmark 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

23

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 12

0

24

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.99

$

In Stock, Qty 20+

0

25

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

26

Exmark 116-1377

SHEAVE,BLADE DRIVE 8.74

$147.99

$

In Stock, Qty 14

0

27

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

28

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

29

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

30

Exmark 146-1841-01

GUARD-FRONT DECK 72

$83.99

$

Usually ships in 0 days

0

31

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

32

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

0

33

Exmark 142-8544

Pin, Chute

$9.49

$

In Stock, only 4 left!

0

34

Exmark 142-7025

Chute-Deck Discharge

$88.99

$

In Stock, only 4 left!

0

35

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 9

0

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

37

Exmark 146-2307-01

COVER-RH BELT 72

$31.99

$

Usually ships in 0 days

0

38

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

39

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

40

Exmark 146-0943

Retainer, Chute

$1.49

$

In Stock, only 4 left!
