Exmark VXX999EKA72600 - Exmark 72" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 417930746 & Above) (Rev A) (2025) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 142-3269

ASM, DECK STRUT

$46.99

$

Usually ships in 3-6 days

1:2

Exmark 135-2466

BUSHING-RUBBER

$8.49

$

Usually ships in 3-6 days

1:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

2

Exmark 109-5013

PANHARD ROD ASM

$155.99

$

In Stock, Qty 9

2:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 20+

2:3

Exmark 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

3

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

4

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 14

5

Exmark 325-11

SCREW-HH

$3.49

$

In Stock, Qty 6

6

Exmark 3233-34

SCREW-CARR

$10.99

$

In Stock, only 3 left!

7

Exmark 146-0569-03

CROSS SHAFT -DECKLIFT-REAR

$680.99

$

Usually ships in 0 days

8

Exmark 146-2219-03

WELD-ARM-DECKLIFT-FRONT-RH

$

Not available 

9

Exmark 146-2218-03

WELD-ARM-DECKLIFT-FRONT-LH

$157.99

$

Usually ships in 0 days

10

Exmark 146-2208

TRUNION-DECKLIFT GROOVED

$28.99

$

Usually ships in 0 days

11

Exmark 146-3072

LINK-DECKLIFT

$25.99

$

Usually ships in 3-6 days

12

Exmark 142-7940

SPACER-DECKLIFT

$6.49

$

In Stock, Qty 5

13

Exmark 3220-7

NUT-JAM

$4.99

$

In Stock, Qty 16

14

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 16

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

16

Exmark 146-5176

SUPPORT-HOC SHAFT

$20.99

$

Usually ships in 0 days

17

Exmark 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 5

18

Exmark 146-0741-03

LINK-HOC 72

$120.99

$

Usually ships in 0 days

19

Exmark 146-2207

BUSHING-FLANGED HOC

$6.49

$

Usually ships in 0 days

20

Exmark 146-2209

E-RING WIDE GRIP

$2.99

$

Usually ships in 0 days

21

Exmark 116-2695

SPACER

$20.99

$

Usually ships in 3-6 days

22

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

23

Exmark 109-9065

SCREW-HH

$3.99

$

In Stock, Qty 13

24

Exmark 116-0000

SPRING-EXTENSION

$149.99

$

Usually ships in 3-6 days

25

Exmark 146-0693

PLATE-HOC

$46.99

$

Usually ships in 0 days

26

Exmark 146-0699

ASM-PLUNGER-HOC

$67.99

$

Usually ships in 0 days

27

Exmark 106-5620

TUBE-INTERLOCK

$18.99

$

Usually ships in 3-6 days

28

Exmark 146-1198

SPRING

$2.99

$

Usually ships in 0 days

29

Exmark 146-0707

PLUG-PLASTIC HOC

$2.99

$

Usually ships in 0 days

30

Exmark 146-0714

SPACER

$9.49

$

Usually ships in 0 days

31

Exmark 146-0713

SPACER-HOC

$2.49

$

Usually ships in 0 days

32

Exmark 138-3326

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

33

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

34

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

35

Exmark 103-0357

WASHER

$2.99

$

Usually ships in 3-6 days

36

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

37

Exmark 323-58

BOLT-TAP, HH

$5.99

$

Usually ships in 3-6 days

38

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

39

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 15

40

Exmark 146-1140

CHANNEL-HOC GUIDE

$2.99

$

Usually ships in 0 days

41

Exmark 32105-29

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

42

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

43

Exmark 142-8897

SPACER 1.13 O.D. X .81 I.D. X 2.05L

$24.99

$

In Stock, only 2 left!

45

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 9

46

Exmark 146-1969

DECAL-HEIGHT OF CUT,OUTER

$27.99

$

Usually ships in 0 days

47

Exmark 146-2052

DECAL-HEIGHT OF CUT-INNER

$27.99

$

Usually ships in 0 days

48

Exmark 135-3954

SPACER

$16.99

$

Usually ships in 3-6 days

49

Exmark 130-6481

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

50

Exmark 146-1382

SPACER-HOC VERTEX

$11.99

$

Usually ships in 0 days

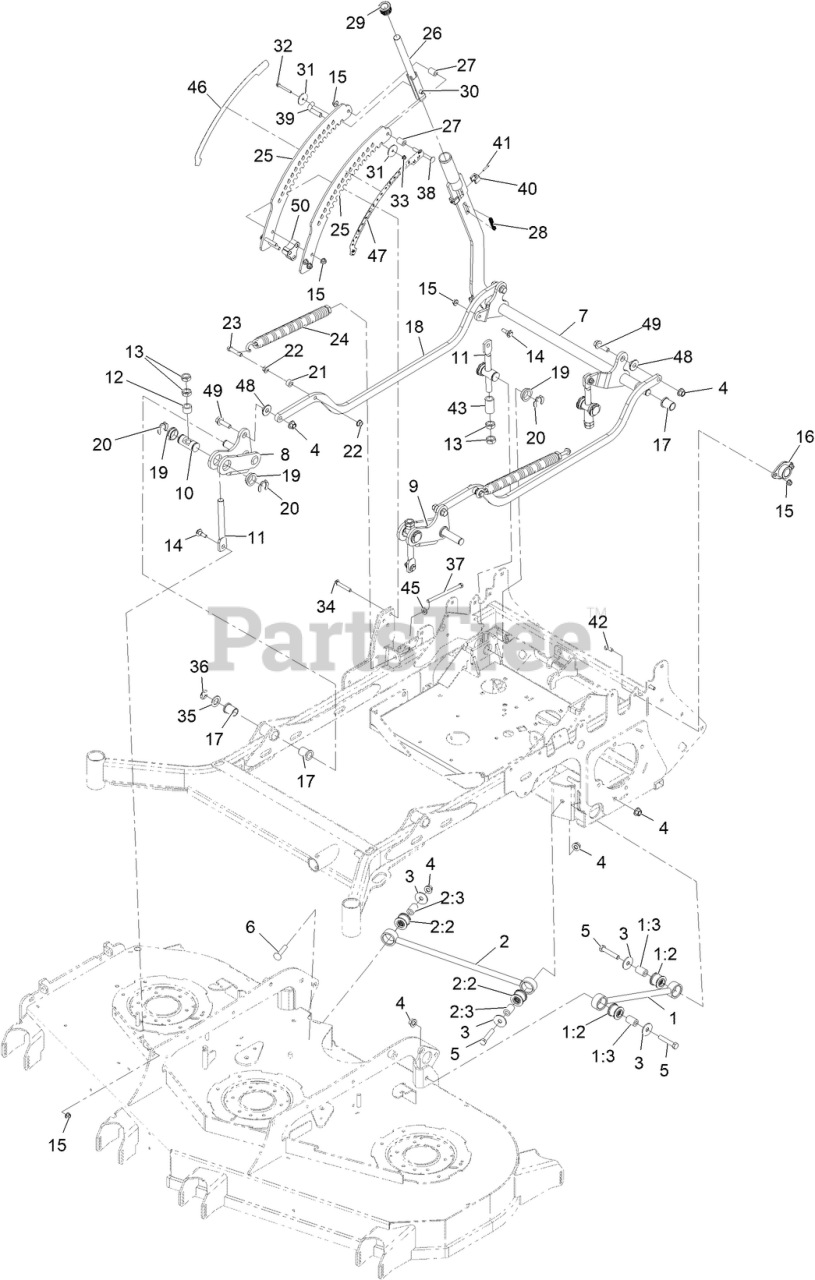

VXX999EKA72600 - Exmark 72" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 417930746 & Above) (Rev A) (2025) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
