Exmark VXX999EKA72600 - Exmark 72" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 417930746 & Above) (Rev A) (2025) Hydraulic Assembly Parts Lookup with Diagrams

1

Exmark 116-7401

MOTOR-HYD, LH

$1760.99

$

Usually ships in 3-6 days

2

Exmark 116-7402

MOTOR-HYD, RH

$1760.99

$

Usually ships in 3-6 days

3

Exmark 142-9285

PUMP,16CC LT

$1450.99

$

Usually ships in 0 days

4

Exmark 142-9284

PUMP,16CC RT

$1450.99

$

Usually ships in 0 days

5

Exmark 135-7971

KEY, 5MM X 5MM X 29MM

$2.99

$

In Stock, Qty 13

6

Exmark 340-155

FITTING-STRAIGHT

$32.99

$

In Stock, only 2 left!

6:1

Exmark 237-79

O-RING

$6.49

$

In Stock, only 3 left!

6:2

Exmark 237-151

O-RING

$2.49

$

In Stock, only 1 left!

7

Exmark 56-7974

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

8

Exmark 126-2927

FITTING-90 DEG

$28.99

$

Usually ships in 3-6 days

8:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

9

Exmark 146-2506

FITTING-90

$21.99

$

Usually ships in 0 days

9:1

Exmark 237-79

O-RING

$6.49

$

In Stock, only 3 left!

10

Exmark 146-1288

SHEAVE-PUMP A-SEC 6.31

$102.99

$

Usually ships in 0 days

11

Exmark 146-1284

SHEAVE-ENGINE A-SEC 6.31

$84.99

$

Usually ships in 0 days

12

Exmark 1-807259

KEY

$2.49

$

In Stock, only 2 left!

13

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

14

Exmark 146-1307

ASM-PUMP IDLER

$133.99

$

Usually ships in 0 days

14:1

Exmark 146-2282

PULLEY-IDLER 4.15 FLAT SINGLE FLNG

$44.99

$

Usually ships in 0 days

14:2

Exmark 142-6820

ASM-PUMP IDLER ARM

$108.99

$

Usually ships in 3-6 days

14:3

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

14:4

Exmark 126-1680

SCREW-HFH

$1.99

$

In Stock, Qty 8

15

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

16

Exmark 126-2956

SCREW-HHF

$6.99

$

In Stock, Qty 7

17

Exmark 126-2954

PIVOT, IDLER

$7.49

$

Usually ships in 3-6 days

18

Exmark 126-0423

PIN-SPRING, ANCHOR

$8.49

$

In Stock, Qty 5

19

Exmark 135-1272

SPRING, EXTENSION

$18.99

$

In Stock, only 2 left!

20

Exmark 146-1370

BELT- COG A 60.0

$58.99

$

Usually ships in 0 days

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

22

Exmark 142-8011

WASHER-1.00 OD X .25 ID

$1.49

$

In Stock, only 3 left!

24

Exmark 142-8012

SCREW-HHF

$1.49

$

In Stock, only 3 left!

25

Exmark 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

26

Exmark 114-8417

NUT-HF, NI

$2.99

$

In Stock, only 4 left!

27

Exmark 325-19

SCREW-HH

$8.99

$

In Stock, Qty 20+

28

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 8

29

Exmark 52-2861

WASHER

$1.99

$

In Stock, Qty 20+

30

Exmark 139-4479

CLAMP-TUBE

$2.49

$

Usually ships in 3-6 days

31

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

32

Exmark 137-4795

Screw

$1.49

$

In Stock, Qty 20+

33

Exmark 103-2888

HEAD-FILTER

$96.99

$

Usually ships in 3-6 days

34

Exmark 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 6

35

Exmark 146-3122

FITTING-45

$22.99

$

Usually ships in 0 days

35:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

36

Exmark 146-6128

Reservoir ASM W/Decal

$

Currently unavailable 

36:1

Reservoir-HYD

Note: Not serviced separately

$

Not available 

36:1:1

Exmark 116-9273

RESERVOIR CAP ASM

$29.99

$

Usually ships in 3-6 days

36:1:1:1

Exmark 142-2792

O-RING

$1.49

$

In Stock, Qty 20+

36:1:2

Exmark 142-2792

O-RING

$1.49

$

In Stock, Qty 20+

36:2

Exmark 142-3077

DECAL-HYD FLUID WARN

$6.49

$

Usually ships in 3-6 days

37

Exmark 109-3278

ADAPTER-STRAIGHT

$143.99

$

Usually ships in 3-6 days

37:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

38

Exmark 103-1828

ADAPTER-RUN, TEE

$50.99

$

Usually ships in 3-6 days

38:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

39

Exmark 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

40

Exmark 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

41

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$52.99

$

In Stock, Qty 8

45

Exmark 142-2435

PLUG-MAGNETIC

$15.99

$

In Stock, only 3 left!

46

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

47

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 5

48

Exmark 146-0834

HOSE ASM-HYD HP

$167.99

$

Usually ships in 0 days

49

Exmark 146-1239

BRACKET-PUMP CONTROL

$13.99

$

Usually ships in 0 days

50

Exmark 146-1501

ASM-HYDRAULIC LO-PRES

$66.99

$

Usually ships in 0 days

50:2

Exmark 146-1496

HOSE-HYDRAULIC LO-PRES

$15.99

$

Usually ships in 0 days

50:3

Exmark 146-1495

HOSE-HYDRAULIC LO-PRES

$27.99

$

Usually ships in 0 days

50:4

Exmark 146-1494

HOSE-HYDRAULIC LO-PRES

$27.99

$

Usually ships in 0 days

51

Exmark 146-1502

ASM-HYDRAULIC LO-PRES

$59.99

$

Usually ships in 0 days

51:2

Exmark 146-1497

HOSE-HYDRAULIC LO-PRES

$19.99

$

Usually ships in 0 days

51:3

Exmark 146-1498

HOSE-HYDRAULIC LO-PRES

$20.99

$

Usually ships in 0 days

51:4

Exmark 146-2200

HOSE- HYDRAULIC LO-PRES

$22.99

$

Usually ships in 0 days

52

Exmark 146-1503

ASM-HYDRAULIC LO-PRES

$59.99

$

Usually ships in 0 days

52:2

Exmark 146-1499

HOSE-HYDRAULIC LO-PRES

$22.99

$

Usually ships in 0 days

52:3

Exmark 146-1500

HOSE-HYDRAULIC LO-PRES

$20.99

$

Usually ships in 0 days

53

Exmark 146-1504

HOSE-HYDRAULIC LO-PRES

$22.99

$

Usually ships in 0 days

54

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

59

Exmark 109-6449

FITTING-ELBOW, 90

$36.99

$

Usually ships in 3-6 days

59:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

60

Exmark 2412-143

CLAMP-HOSE

$2.49

$

Usually ships in 0 days

61

Exmark 354-120

FITTING-ELBOW, 90

$36.99

$

Usually ships in 3-6 days

61:1

Exmark 237-79

O-RING

$6.49

$

In Stock, only 3 left!

62

Exmark 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 8

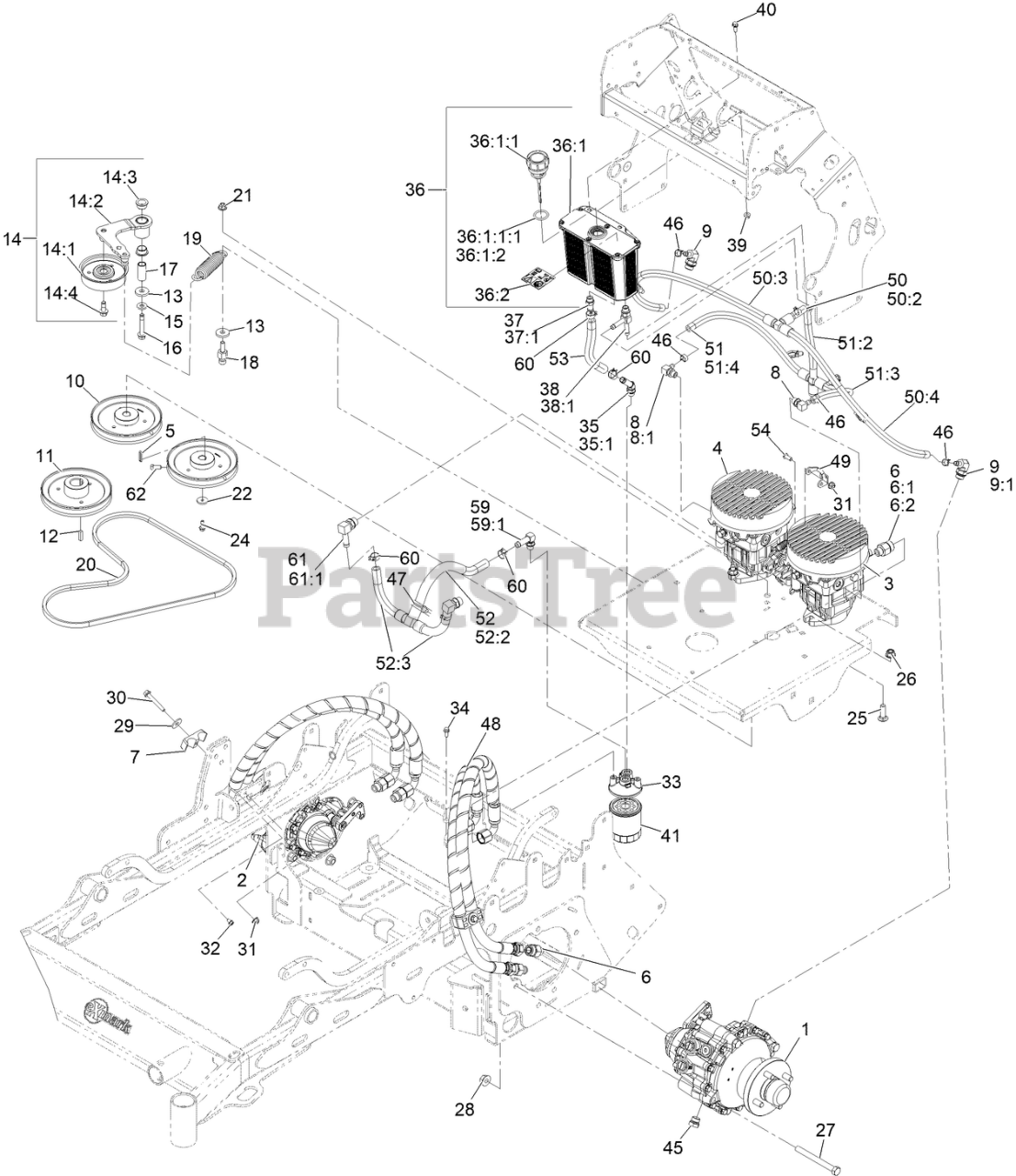

VXX999EKA72600 - Exmark 72" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 417930746 & Above) (Rev A) (2025) Hydraulic Assembly Parts Diagram
