VXX999GKA60600 - Exmark 60" Vertex X-Series Stand-On Mower, Kawasaki FX1000 (SN: 416150475 - 417930745) (Rev A) (2024) Fuel Assembly Parts Diagram

60" Vertex X-Series Stand-On Mower, Kawasaki FX1000

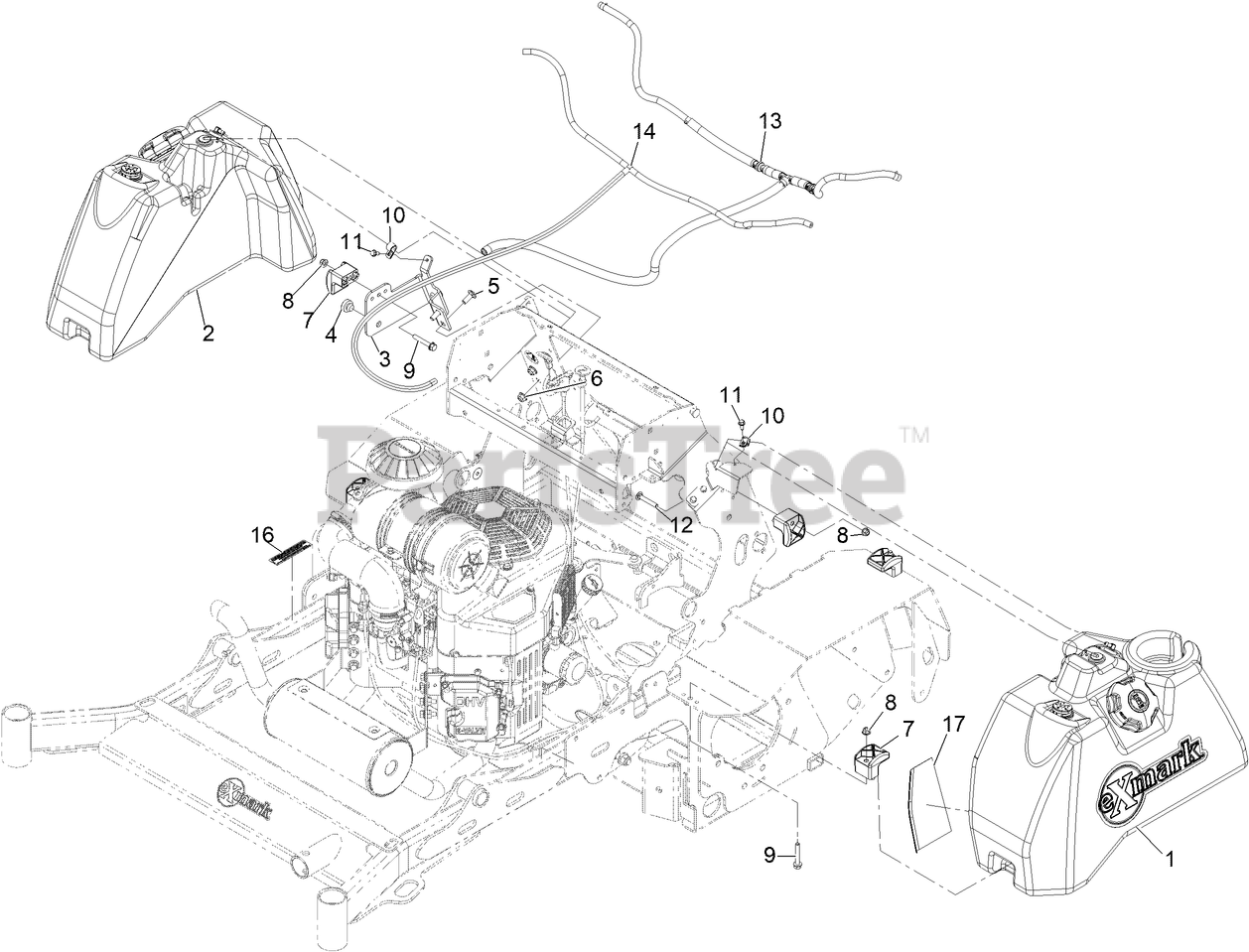

Fuel Assembly Parts Diagram

  • Title

1

Exmark 146-0452

TANK ASM-FUEL, LH

$558.99

$

Usually ships in 0 days

0

2

Exmark 146-0454

TANK ASM-FUEL, RH

$558.99

$

Usually ships in 0 days

0

3

Exmark 146-0788-03

BRACKET-TANK FUEL

$32.99

$

Usually ships in 0 days

0

4

Exmark 104-1412

BUMPER-RUBBER

$20.99

$

In Stock, only 3 left!

0

5

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

9

Exmark 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

10

Exmark 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

12

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

13

Exmark 146-2005

HOSE ASM-SUPPLY, FUEL

$173.99

$

Usually ships in 0 days

0

14

Exmark 146-3793

Hose ASM-Vent, Fuel

$59.99

$

Usually ships in 0 days

0

16

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

17

Exmark 146-5015

Shield-Tank Heat

$

$

Currently unavailable
