W 25 CF (967184201) - Weed Eater String Trimmer (2012-11) SHAFT HANDLE Parts Diagram

String Trimmer

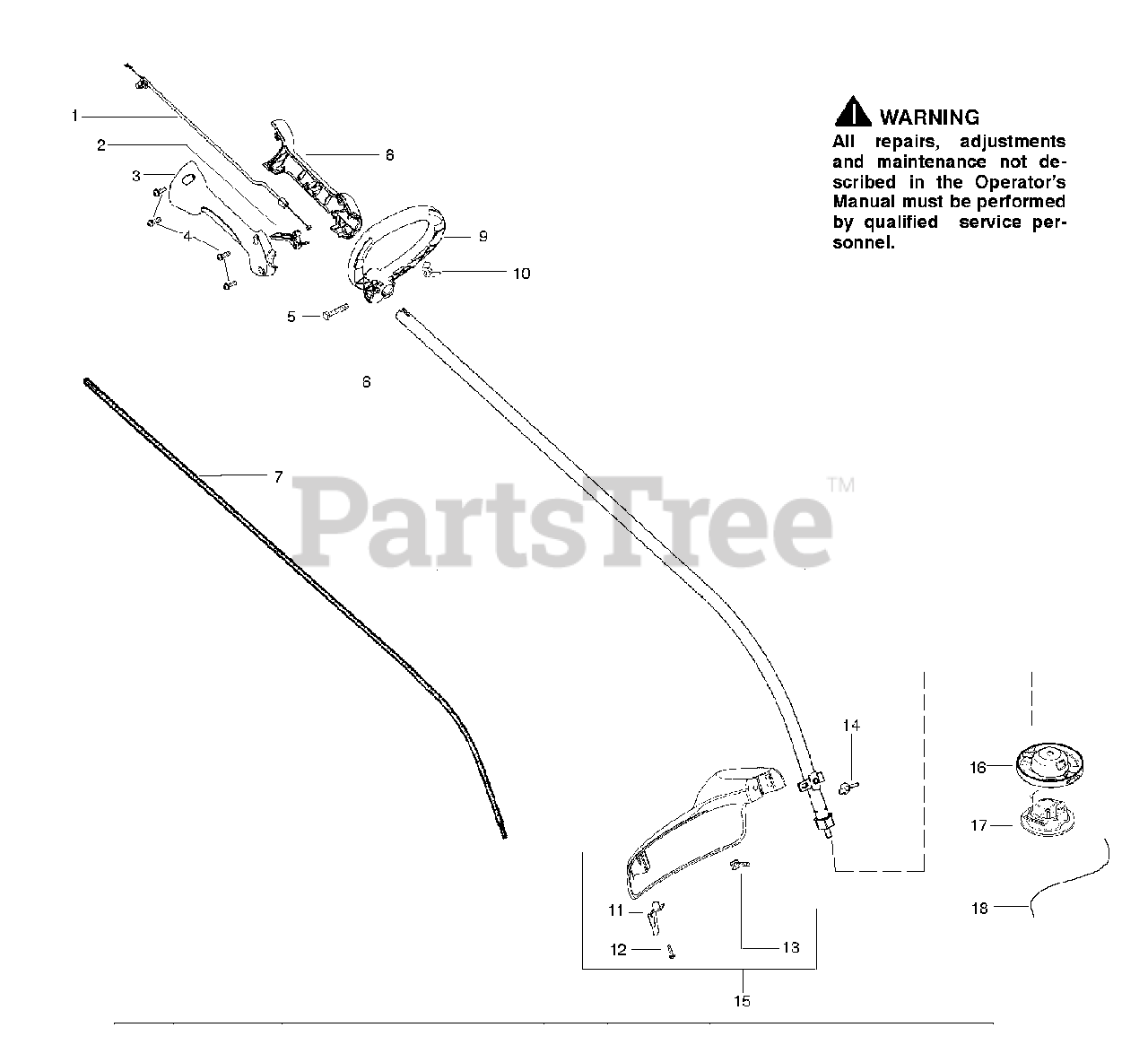

SHAFT HANDLE Parts Diagram

  • Title

1

Poulan 530057991

ASSY THROTTLE CABLE

$13.99

$

In Stock, only 3 left!

0

2

Poulan 530058000

TRIGGER

$6.49

$

In Stock, Qty 20+

0

3

Poulan 530057582

HSG THROTTLE RH

$11.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

5

Poulan 530015821

BOLT\-1/4-20X1-1/2

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 581748205

(Superseded to 581494909)

$

$

Not available

7

Poulan 581748401

FLEXSHAFT CS 51"

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530057581

HSG THROTTLE LH

$12.99

$

Usually ships in 3-10 days

0

9

Poulan 530058580

ASSY ASSIST HANDLE
(Superseded to 530071747)

Note: INCL 5 10

$

$

Not available

10

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530052286

LINE CUTTER

Note: INCL 12

$

$

Not available

12

Poulan 530015966

SCREW - THROTTLE HOUSING

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530015820

BOLT, TYPE 2

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

15

Poulan 581494801

SHIELD KIT

Note: INCL 11 12 13 14

$9.99

$

Usually ships in 3-10 days

0

16

Poulan 545202402

HEAD CUTTING FIX LINE

$

$

Not available

17

Poulan 545202501

CAP FIXED LINE 6

$

$

Not available

18

Poulan 581681001

ACCY WE.095 X 16.5" LINE 12PCS

$5.49

$

In Stock, only 1 left!

0
