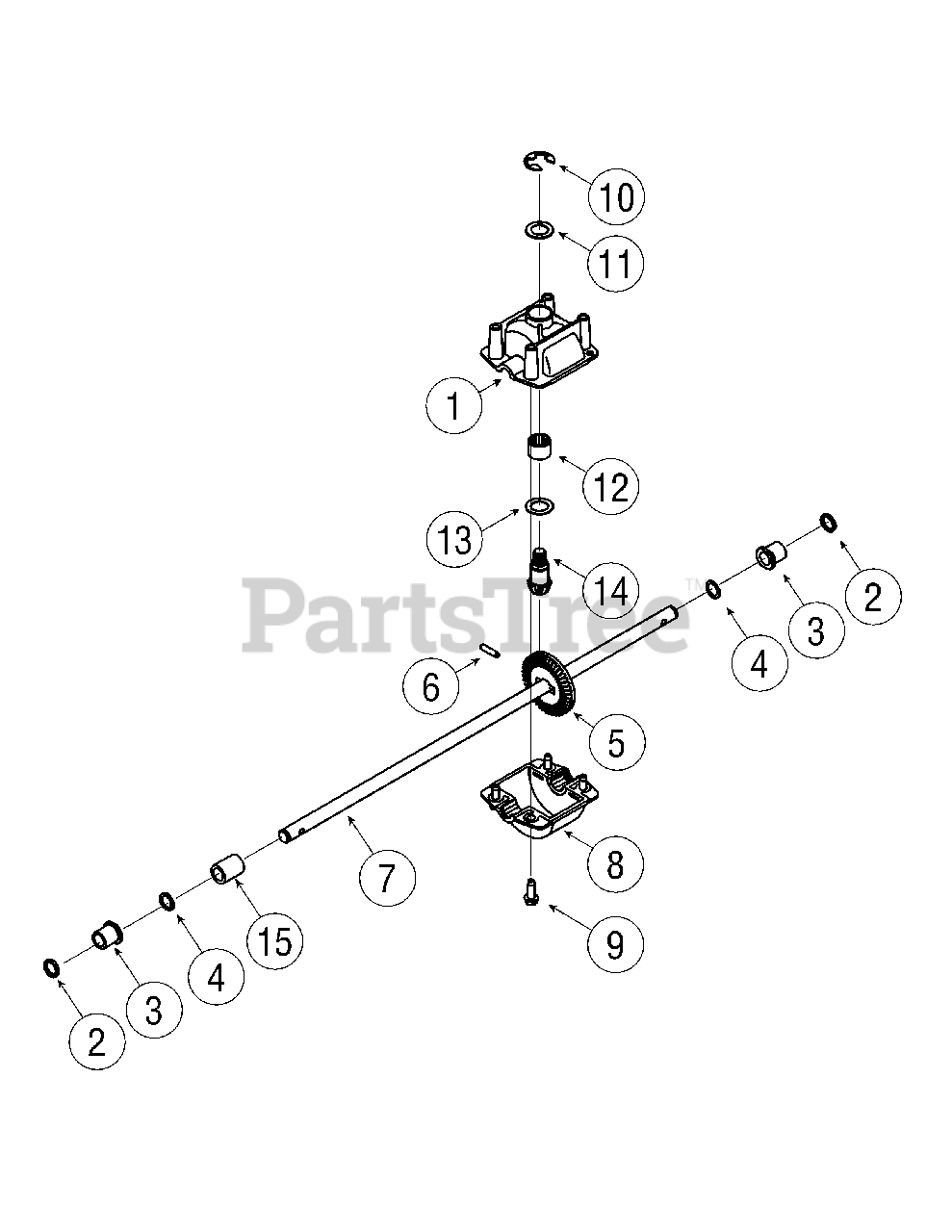

W-285 (12A-285D790) - White Outdoor 22" Walk-Behind Mower (2006) Transmission Parts Diagram

22" Walk-Behind Mower

Transmission Parts Diagram

  • Title

1

White Outdoor 618-0392

Upper Housing Assembly

$

$

Not available

2

White Outdoor 721-0329

Oil Seal.500 ID x.687 OD
(Superseded to 921-0329)

$9.49

$

Usually ships in 3-6 days

0

3

White Outdoor 741-0673

Flange Bearing.503 ID x.689
(Superseded to 941-0673)

$5.99

$

In Stock, only 2 left!

0

4

White Outdoor 736-0520

Flat Washer .504 ID x.700 OD x .030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

4

White Outdoor 736-0711

Flat Washer .504 ID x.700 OD x .035

$

$

Not available

4

White Outdoor 736-0712

Flat Washer .504 ID x.700 OD x .040

$

$

Not available

4

White Outdoor 736-0713

Flat Washer .504 ID x.700 OD x .045

$

$

Not available

5

White Outdoor 717-1723

Bevel Gear 44T
(Superseded to 917-1723)

$

$

Not available

6

White Outdoor 715-0139

Roll Pin
(Superseded to 915-0247)

$

$

Not available

7

White Outdoor 711-1649

Output Shaft
(Superseded to 911-1649)

$

$

Not available

8

White Outdoor 719-0538

Lower Housing

$

$

Not available

9

White Outdoor 710-1276

Hex Washer Screw 1/4-20 x.75

$3.99

$

Usually ships in 3-6 days

0

10

White Outdoor 716-0231

E-Ring.750

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0336

Flat Washer .625 ID x 1.0 OD x.030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0337

Flat Washer .625 ID x 1.0 OD x .040

$4.49

$

In Stock, Qty 15

0

11

White Outdoor 736-0349

Flat Washer .63 ID x 1.0 OD x .020

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0494

Flat Washer .632 ID x 1.0 OD x .035

$4.49

$

In Stock, Qty 8

0

11

White Outdoor 736-0495

Flat Washer .632 ID x 1.0 OD x .025

$3.99

$

In Stock, Qty 16

0

12

White Outdoor 741-0735

Needle Bearing.625 x.813

$17.99

$

Usually ships in 3-6 days

0

13

White Outdoor 736-0336

Flat Washer .625 ID x 1.0 OD x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0494

Flat Washer .632 ID x 1.0 OD x .035

$4.49

$

In Stock, Qty 8

0

14

White Outdoor 711-1390A

Input Shaft

$

$

Not available

15

White Outdoor 750-1242

Spacer.505 x.75 x.9765

$

$

Not available
