W 36120 - Snapper 36" Walk-Behind Mower, 12hp Handle Assembly - Hardware Parts Diagram

36" Walk-Behind Mower, 12hp

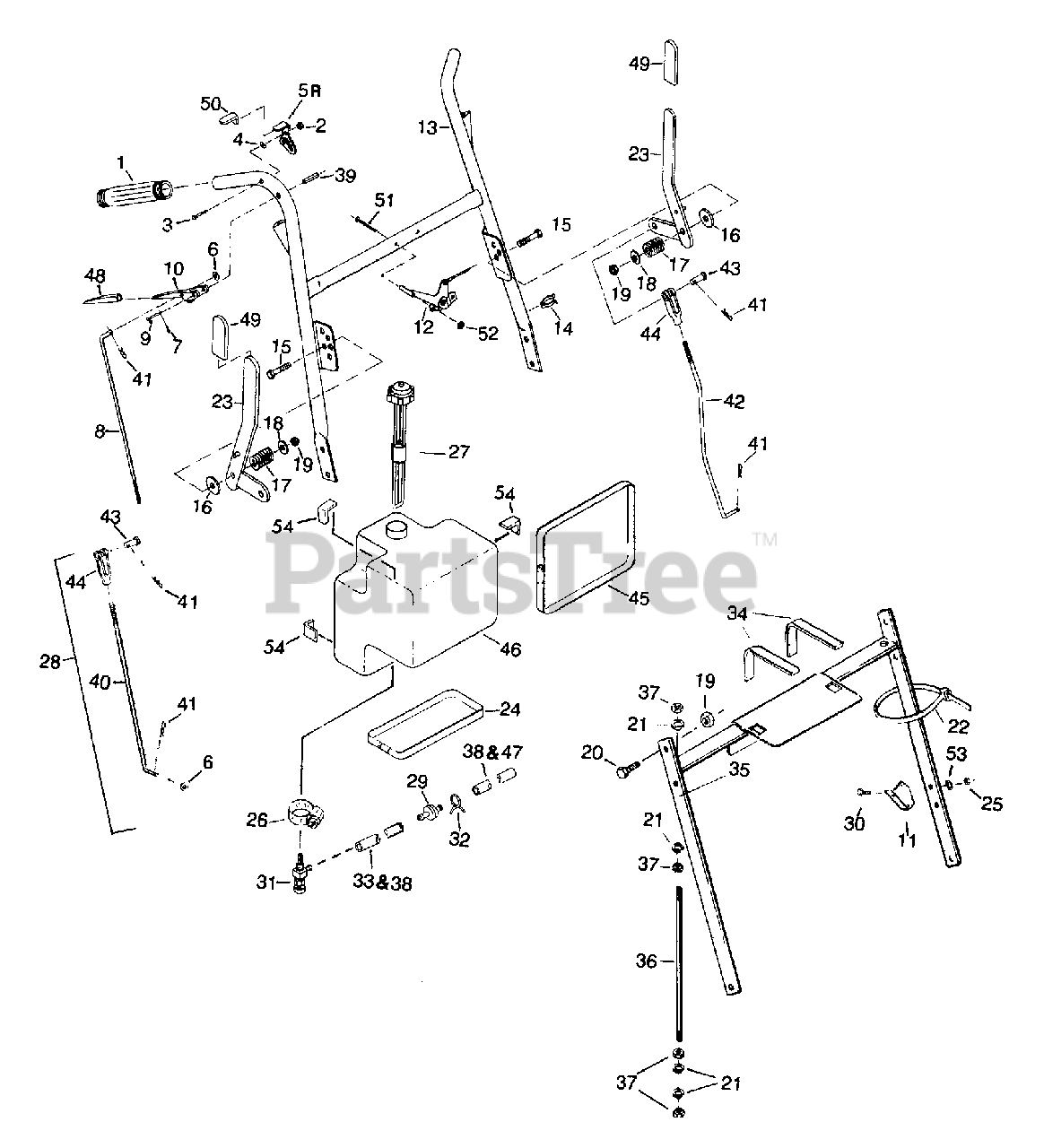

Handle Assembly - Hardware Parts Diagram

  • Title
1

Snapper Part# 7076488

Handle Grip
Usually ships same day

Not available

$

$

2

Snapper Part# 7091705

1/4"-20 Prevailing Torque Nut
(Superseded to 704319)

Note: Was 76960

Usually ships in 1 day

$

$2.40

0

3

Snapper Part# 7090639

1/4"-20x1-1/2" Hex Hd. Cap Screw
(Superseded to 7090639YP)

Note: Was 76922

Usually ships in 1 day

$

$3.12

0

4

Snapper Part# 7073953

1/4" Dia. Wavy Spring Washer
(Superseded to 7073953YP)
Usually ships in 6 to 12 days

$

$2.46

0

5R

Snapper Part# 7076387

Right Thumb Latch w/Grip (P/N 76527)
Usually ships same day

Not available

$

$

5L

Snapper Part# 7076388

Left Thumb Latch w/Grip (P/N 76527)

Note: (Not Shown)

Usually ships same day

Not available

$

$

6

Snapper Part# 7090692

5/16" Std. Flat Washer
(Superseded to 7090692YP)
Usually ships in 6 to 12 days

$

$2.68

0

7

Snapper Part# 7091597

3/32"x1/2 Cotter Pin
(Superseded to 703312)

Note: Was 90555

Usually ships in 1 day

$

$2.96

0

8

Snapper Part# 7076433

Drive Linkage
Usually ships same day

Currently unavailable

$

$

9

Snapper Part# 7014733

3/16" Clevis Pin
(Superseded to 7014733YP)

Note: Was 76993

Usually ships in 1 day

$

$3.46

0

10

Snapper Part# 7076405

Drive Lever w/Grip (P/N 76525)
Usually ships same day

Not available

$

$

11

Snapper Part# 7076555

Interlock Bracket-Blade Drive
Usually ships same day

Currently unavailable

$

$

12

Snapper Part# 7076529

Throttle Control, Complete
(Superseded to 7076529YP)
Usually ships in 6 to 12 days

$

$19.45

0

13

Snapper Part# 7077287

Upper Handle w/Decals
(Superseded to 7077287YP)
Usually ships in 6 to 12 days

$

$168.65

0

14

Snapper Part# 7011709

1" Cable Clip
(Superseded to 7011709YP)

Note: Was 76492

Usually ships in 6 to 12 days

$

$2.40

0

15

Snapper Part# 7091305

3/8"-16x2" Hex Hd. Cap Screw-Grade 5
(Superseded to 703589)

Note: Was 90588

Usually ships in 1 day

$

$3.41

0

Usually ships same day

Not available

$

$

17

Snapper Part# 7076438

Compression Spring
Usually ships same day

Not available

$

$

18

Snapper Part# 7090517

3/8" Std. Flat Washer
(Superseded to 7090517SM)
Usually ships in 1 day

$

$3.02

0

19

Snapper Part# 7091299

3/8"-16 Nyloc Hex Nut
(Superseded to 703117)

Note: Was 76979

Usually ships in 1 day

$

$2.40

0

20

Snapper Part# 7091304

3/8"-16x1" Hex Hd. Cap Screw-Grade 5
(Superseded to 703407)

Note: Was 90563

Usually ships in 1 day

$

$9.00

0

21

Snapper Part# 7090254

1/2" Lock Washer
(Superseded to 5025331SM)
Usually ships in 1 day

$

$3.01

0

22

Snapper Part# 7012080

Plastic Tie
(Superseded to 7012080SM)

Note: Was 76856

Usually ships in 1 day

$

$1.90

0

23

Snapper Part# 7077274

Lever Assy Complete w/Grip (P/N 76526)
Usually ships same day

Not available

$

$

24

Snapper Part# 7076562

Tank Band-Short
Usually ships same day

Not available

$

$

25

Snapper Part# 7076978

1/4"-20 Nyloc Hex Nut
(Superseded to 703232)
Usually ships in 1 day

$

$3.35

0

26
Usually ships same day

Not available

$

$

27

Snapper Part# 7076535

Gas Cap w/Gauge
(Superseded to 7076535YP)
Usually ships in 6 to 12 days

$

$37.44

0

28

Snapper Part# 7077281

Ground Speed Linkage Kit
Usually ships same day

Not available

$

$

29

Snapper Part# 7014359

Gas Filter
(Superseded to 394358S)

Note: Was 76572

Usually ships in 1 day

$

$4.14

0

30

Snapper Part# 7091495

1/4"-20x3/4" Hex Hd. Cap Screw-Grade 5
(Superseded to 703925)

Note: Was 76932

Usually ships in 1 day

$

$2.85

0

31

Snapper Part# 7076491

Gas Line Shut Off
Usually ships in 6 to 12 days

$

$9.45

0

32

Snapper Part# 7029900

Gas Line Clamp
(Superseded to 7029900SM)

Note: Was 76499

Usually ships in 1 day

$

$2.35

0

33

Snapper Part# 7076560

Gas Line Hose-17-1/2" Long (Briggs & Stratton Only)
Usually ships same day

Currently unavailable

$

$

34
Usually ships same day

Not available

$

$

35

Snapper Part# 7076391

Lower Handle
Usually ships same day

Currently unavailable

$

$

36

Snapper Part# 7076430

Handle Brace
Usually ships same day

Currently unavailable

$

$

37

Snapper Part# 7091316

1/2"-13 Regular Hex Nut
(Superseded to 703340)

Note: Was 90258

Usually ships in 6 to 12 days

$

$6.09

0

38

Snapper Part# 7076532

Gas Line Hose (Kawasaki Only)
Usually ships same day

Not available

$

$

39

Snapper Part# 7076987

5/16" x 1" Roll pin
(Superseded to 7076987YP)
Usually ships in 6 to 12 days

$

$2.40

0

40

Snapper Part# 7076534

Ground Speed Linkage
Usually ships same day

Not available

$

$

41

Snapper Part# 7076988

#2 Hairpin Cotter
(Superseded to 7076988YP)
Usually ships in 1 day

$

$3.01

0

42

Snapper Part# 7076519

Upper Blade Drive Linkage
Usually ships same day

Not available

$

$

43

Snapper Part# 7073953

5/16" Clevis Pin
(Superseded to 7073953YP)

Note: Was 10434

Usually ships in 6 to 12 days

$

$2.46

0

Usually ships same day

Not available

$

$

45

Snapper Part# 7076563

Tank Band-Long
Usually ships same day

Not available

$

$

46

Snapper Part# 7076393

4 Gal. Gas Tank w/Decals

Note: Was 77282

Usually ships same day

Not available

$

$

47

Snapper Part# 7077351

Gas Line Hose 3-1/2" Long (Briggs & Stratton Only)
(Superseded to 791766)
Usually ships same day

Not available

$

$

48

Snapper Part# 7076525

Drive Lever Grip
(Superseded to 7076525YP)
Usually ships in 6 to 12 days

$

$2.18

0

49

Snapper Part# 7076526

Adjustment Lever Grip
(Superseded to 7076526YP)
Usually ships in 1 day

$

$2.46

0

50

Snapper Part# 7076527

Thumb Latch Grip
Usually ships same day

Currently unavailable

$

$

51

Snapper Part# 7076950

#10-24x1-1/2" Rd. Hd. Slt. Mach. Screw
Usually ships same day

Currently unavailable

$

$

52

Snapper Part# 7076977

#10-24 Nyloc Hex Nut
(Superseded to 7076977YP)
Usually ships in 6 to 12 days

$

$2.85

0

53

Snapper Part# 7090053

Internal Tooth Lock Washer
(Superseded to 703462)
Usually ships in 1 day

$

$3.13

0

54

Snapper Part# 7077345

Gas Tank Pad
(Superseded to 7077345YP)
Usually ships in 6 to 12 days

$

$2.74

0
