W 3613 P (968999116) - Husqvarna 36" Walk-Behind Mower (2008-06) CHASSIS / FRAME Parts Diagram

36" Walk-Behind Mower

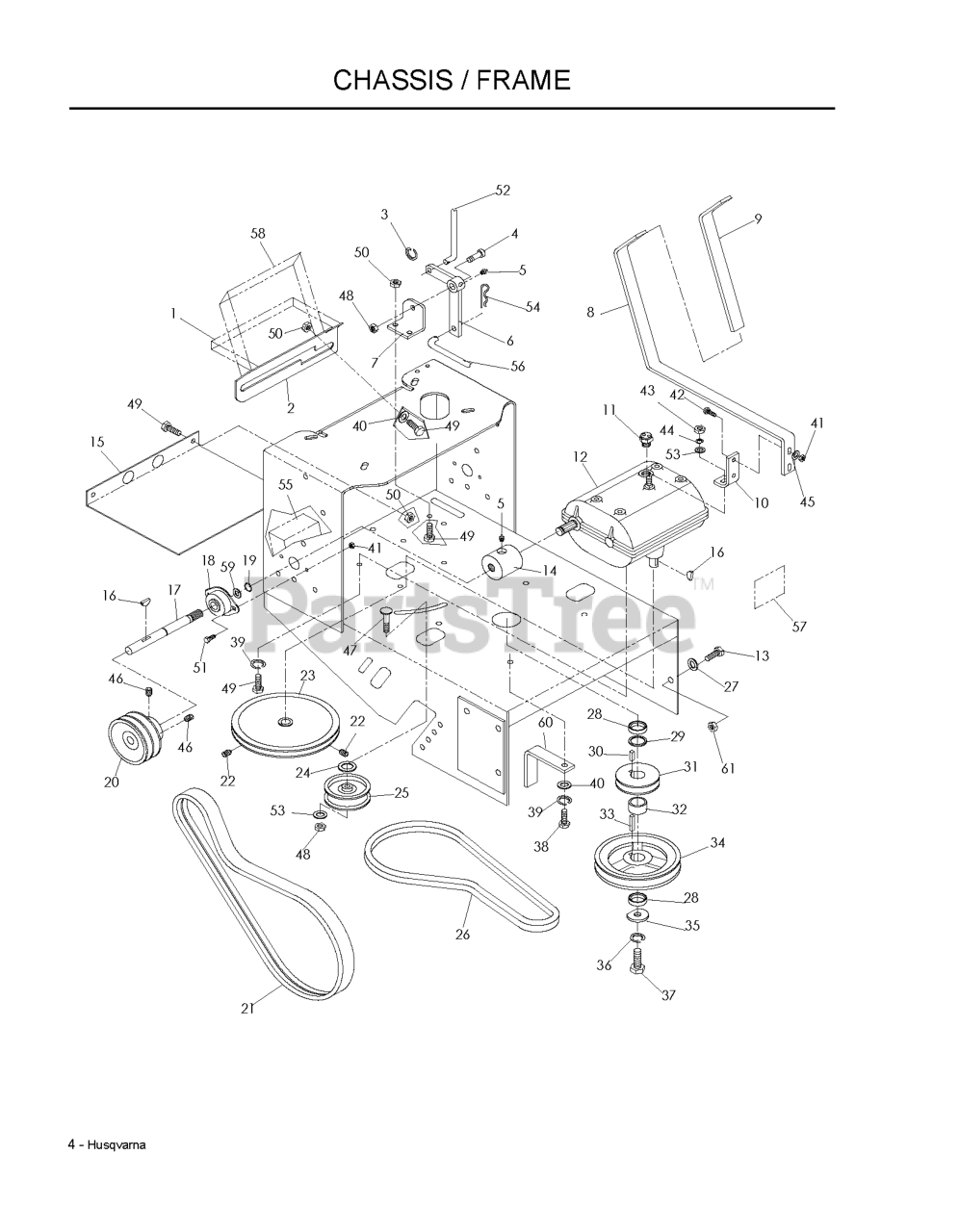

CHASSIS / FRAME Parts Diagram

  • Title

53

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102163

DRIVE SHAFT

$

$

Not available

44

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

18

Husqvarna 539101967

BEARING

$

$

Not available

33

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$3.99

$

In Stock, only 2 left!

0

4

Husqvarna 539100150

SB 12C X 34

$8.99

$

In Stock, only 2 left!

0

27

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

In Stock, Qty 11

0

54

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539103463

BELT GUIDE, SHORT

Note: NOT SHOWN

$12.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539102149

DRIVE BELT (32)

Note: 32

$

$

Not available

23

Husqvarna 539101964

PULLEY, INPUT

$

$

Not available

34

Husqvarna 539101834

PULLEY, ENGINE

$74.99

$

In Stock, only 1 left!

0

12

Husqvarna 539102162

TRANSMISSION WB

$

$

Not available

38

Husqvarna 539100567

HCS M8-1.25 X 30MM

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539104547

LOWER BELT SHIELD

$

$

Not available

1

Husqvarna 539100277

DECAL, SHIFTER

$2.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

36

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

35

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

52

Husqvarna 539101972

BLADE ROD

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539100148

SWITCH, TRANS

$34.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101960

SHIFTER PLATE

$

$

Not available

39

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

16

Husqvarna 539910211

KEY, #9 WOODRUFF

$3.99

$

In Stock, only 4 left!

0

51

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 539101957

BELT, TRANSMISSION

$42.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 14

0

24

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539100128

DECAL, EXHAUST

$1.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102165

SHIFTER BRACKET

$30.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102164

COUPLING

$46.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539100066

BELLCRANK

$46.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101965

SHIFTER GRIP

$8.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539101720

SPACER

$15.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105718

SQUARE KEY - 1/4 X .5

$

$

Not available

41

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

43

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

50

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539102036

BELT GUIDE

Note: NOT SHOWN

$18.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539105744

DECAL, BELT DRIVE

$6.49

$

In Stock, only 4 left!

0

25

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 8

0

13

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

45

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

59

Husqvarna 539991043

BUSHING

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 539104648

BRACKET

$

$

Not available

60

Husqvarna 539103462

BELT GUIDE - LONG

$12.99

$

Usually ships in 3-10 days

0

46

NEEDS DESCRIPTION

Note: "32"" MODELS"

$

$

Not available

28

Husqvarna 539921960

SPACER

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539101961

SHIFTER ARM

$

$

Not available

19

Husqvarna 539101971

RETAINER RING

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 539101954

PULLEY, DRIVE (36 & 48)

Note: "36, 48"

$109.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539101988

SETSCREW, 1/4-20 NYLOC

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539102048

BLADE ROD 36"

$

$

Not available

31

Husqvarna 539919148

PULLEY

$29.99

$

In Stock, only 1 left!

0

29

Husqvarna 539102050

BUSHING, 10GA MACHINERY

$

$

Not available

20

Husqvarna 539102154

DRIVE PULLEY (32)

Note: 32

$133.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539110859

BELT, DRIVE 36/48

Note: "36, 48"

$109.99

$

In Stock, only 2 left!

0

3

Husqvarna 539916459

RETAINER

$6.49

$

In Stock, Qty 8

0

58

Husqvarna 539102047

DECAL, CLUTCH

$

$

Not available
