W 436 (967334301) - Husqvarna 36" Walk-Behind Mower (2015-01) ENGINE PLATE Parts Diagram

36" Walk-Behind Mower

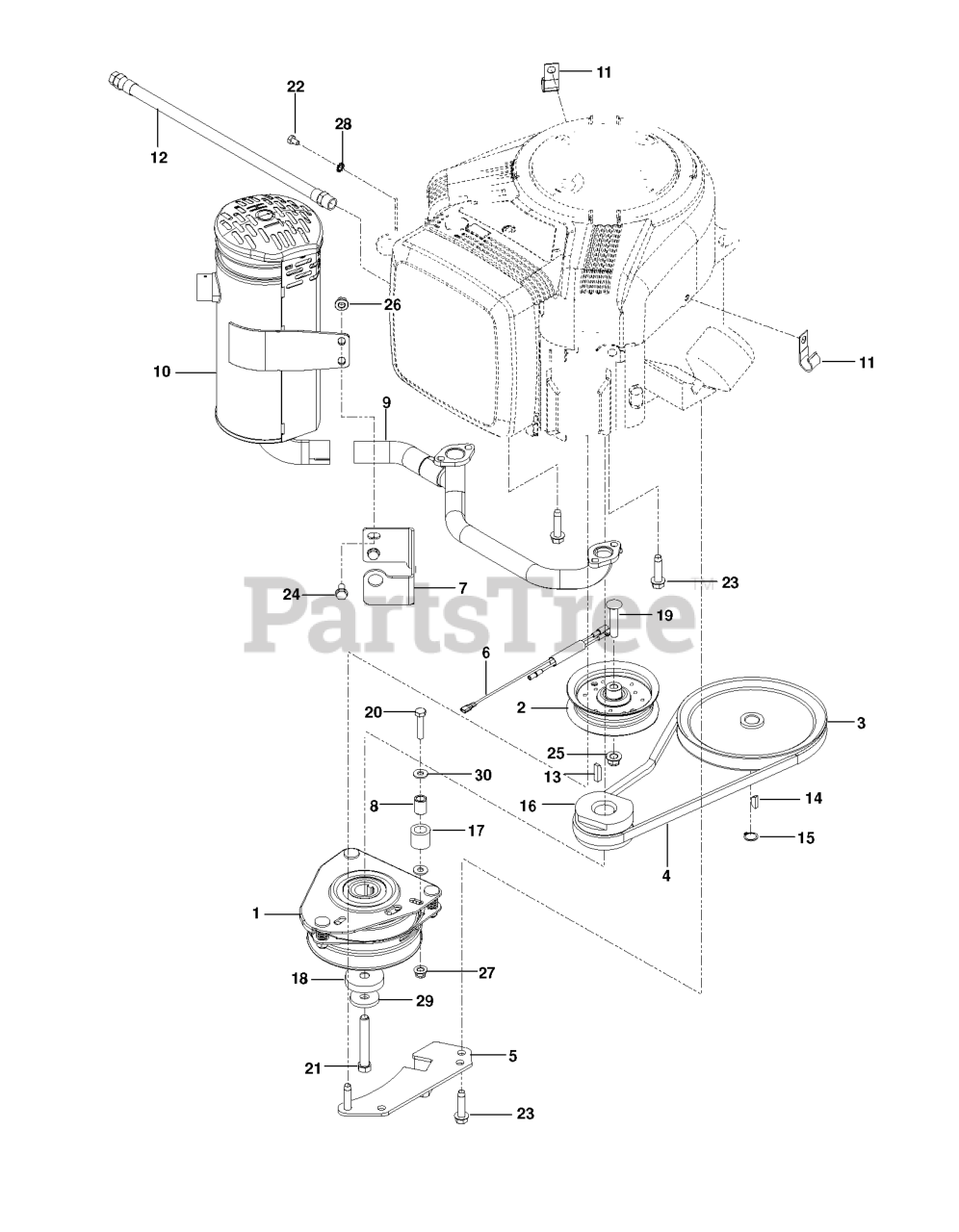

ENGINE PLATE Parts Diagram

  • Title

16

Husqvarna 588071902

SHEAVE SHEAVE,ENGINE 1.002ID X

$

$

Not available

17

Husqvarna 588066602

BUMPER BUMPER,RUBBER .62 X 1.0

$3.49

$

In Stock, only 1 left!

0

26

Husqvarna 588070302

LOCK NUT LOCKNUT,M8 X 1.25,FLA

$

$

Not available

21

Husqvarna 588064701

BOLT BOLT HEX .44-20 X 3 GR8

$

$

Not available

23

Husqvarna 588228201

SCREW SCREW .38-16 X 1½ TAP

$

$

Not available

3

Husqvarna 588071301

PULLEY PLY-V 7.50 X .626

$85.99

$

Usually ships in 3-10 days

0

12

Husqvarna 588227901

HOSE HOSE, OIL DRAIN W/ CAP 18

$

$

Not available

14

Husqvarna 588069804

KEY KEY-WDRF .19 X .75 HRD#9

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 588071401

RING RG-RTNG-E X T .579 X .035

$11.99

$

In Stock, only 1 left!

0

6

Husqvarna 588227501

HARNESS HARNESS, JUMPER B & S

$43.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588067801

CLUTCH CLUTCH ASSY, OGURA# GT1

$683.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588228301

KEY ¼ X ¼ 1 X 1

$

$

Not available

19

Husqvarna 588064726

BOLT BOLT RDHDSQNK .38-16 X 2.

$

$

Not available

4

Husqvarna 588073101

V-BELT V-BELT, HA-RAW EDGE LAM

$56.99

$

In Stock, Qty 15

0

18

Husqvarna 588072201

SPACER SPACER, .450 X 2.00 X .

$

$

Not available

20

Husqvarna 588064706

BOLT BOLT HEX .31-18 X 1.50 GR

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 588228101

WASHER WASHER LK EXT

$

$

Not available

7

Husqvarna 588227801

BRACKET BRACKET, EXHAUST MOUNT

$

$

Not available

24

Husqvarna 588071601

SCREW SCREW, HEX-FL M8 X 1.25

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 588227701

ELBOW ELBOW, EXHAUST

$

$

Not available

22

Husqvarna 588228001

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 588070701

CLIP P-CLIP, .500 INSULATED

$

$

Not available

2

Husqvarna 588063501

PULLEY ASSY ASSY, IDLER 4"

$79.99

$

Usually ships in 3-10 days

0

8

Husqvarna 588066703

BUSH BUSH.,S.407 X .625 X .813

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 588067802

CLUTCH CLUTCH STOP G2 HUSQ

$

$

Not available

29

Husqvarna 588073203

WASHER WASHER, 7/16" SPRING DI

$

$

Not available

30

Husqvarna 588073216

WASHER WASHER, FL-STL.312 X .7

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 588227601

EXHAUST EXHAUST, B&S

$

$

Not available
