W 436 (967334301) - Husqvarna 36" Walk-Behind Mower (2015-01) HANDLE & CONTROLS Parts Diagram

36" Walk-Behind Mower

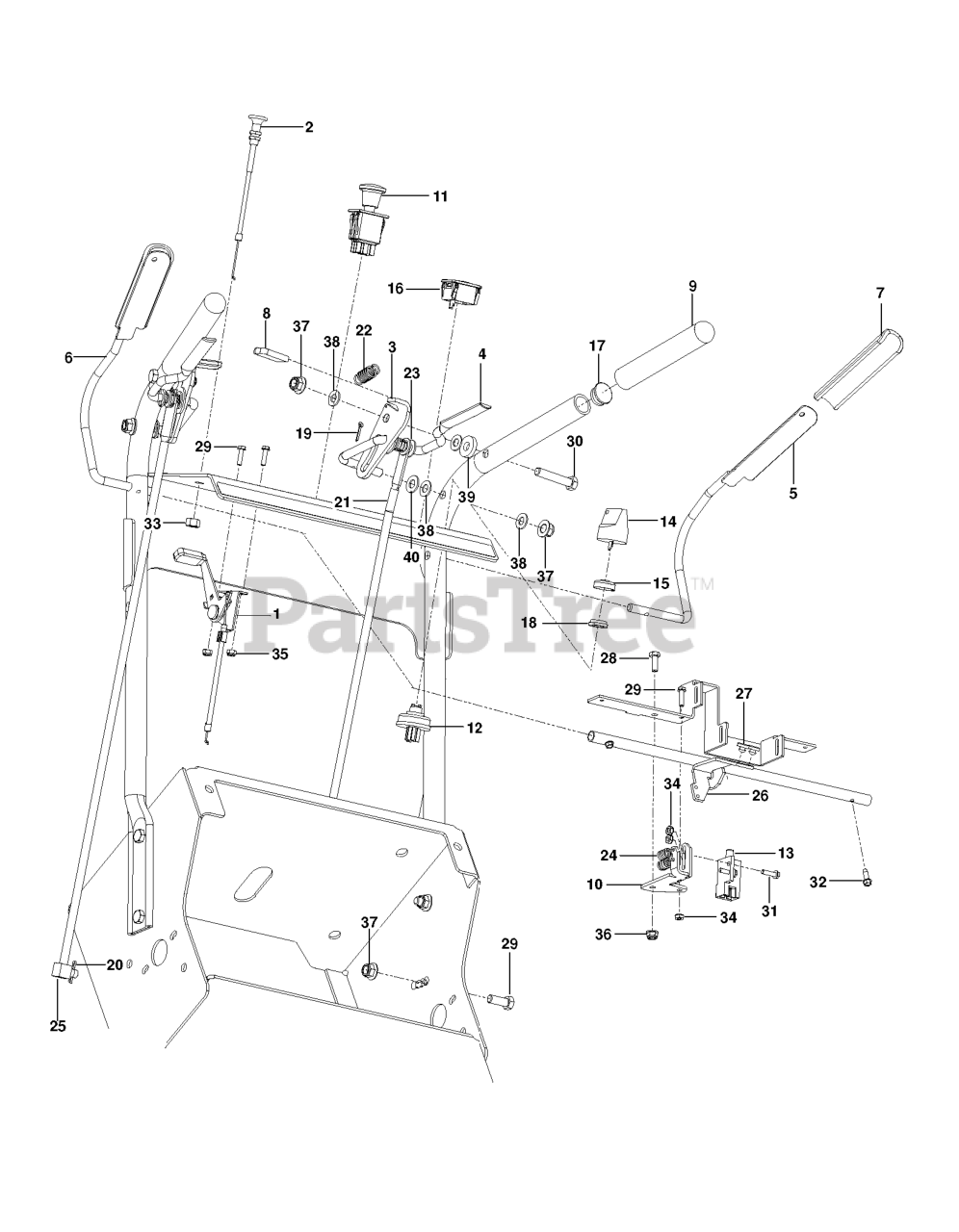

HANDLE & CONTROLS Parts Diagram

  • Title

10

Husqvarna 588072501

SWITCH SWITCH & SPRING HUSQ

$

$

Not available

8

Husqvarna 588068704

GRIP GRIP, THUMB LATCH

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 588069301

HARNESS HARNESS, WIRE GEAR

$227.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588069802

KEY KEY W/ SHIELD

$45.99

$

Usually ships in 3-10 days

0

3

Husqvarna 588070002

LATCH LATCH, RH THUMB HUSQ

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588072502

SWITCH SWITCH, CLUTCH

$

$

Not available

3

Husqvarna 588070001

LATCH LATCH, LH THUMB HUSQ

$7.99

$

Usually ships in 3-10 days

0

Husqvarna 588063401

ASSY.HANDLEBAR W/DECALS HUSQ

Note: W/ Safety Decals

$1481.99

$

Usually ships in 3-10 days

0

6

Husqvarna 588070101

LEVER LEVER LH OP MY14 HUSQ

$125.99

$

Usually ships in 3-10 days

0

33

Husqvarna 588070602

NUT NUT, HEX .375-24 YWZC GR2

$

$

Not available

17

Husqvarna 588067303

CAP CAPLUG, HANDLEBAR

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 588072601

SWIVEL SWIVEL, 3/8-24

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588070805

PIN PIN-HAIR, ENDRIES #25 YWZC

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 588071702

SPRING SG-TENS .041 X .500 X 1

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 588071001

TUBE PIVOT TUBE HUSQ

$62.99

$

Usually ships in 3-10 days

0

27

Husqvarna 588066601

BUMPER BUMPER GROMMET .125 X .

$

$

Not available

39

Husqvarna 588073211

WASHER WASHER, FL-STL .406 X 1

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 588070608

NUT NUT, LK-NYL-FLG .25-20 YWZ

$

$

Not available

38

Husqvarna 588073205

WASHER WASHER, FL-NY .375 X .7

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 588064703

BOLT BOLT HEX .25-20X.75 GR5 Y

$

$

Not available

23

Husqvarna 588071701

SPRING SG-COMP .045 X .600 X .

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588070804

PIN PIN-CTR .09 X .75 E X TPRS

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 588070607

NUT NUT, LK-NYL 10-24 W/INSRT

$

$

Not available

31

Husqvarna 588071602

SCREW SCREW, MCH 10-24 X .75 H

$

$

Not available

21

Husqvarna 588071502

ROD ROD, STEERING

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 588071703

SPRING SG-TENS .047 X .438 X 1

$

$

Not available

16

Husqvarna 588070401

METER METER, HOUR INDCTV RECOI

$

$

Not available

29

Husqvarna 588064708

BOLT BOLT HEX .38-16 X 1.00 GR

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 588068703

GRIP GRIP, HANDLEBAR

$28.99

$

Usually ships in 3-10 days

0

4

Husqvarna 588070104

LEVER LEVER, HAND CONTROL RH

$136.99

$

Usually ships in 3-10 days

0

12

Husqvarna 588069801

KEY KEY SWITCH INDAK #3S463A

$62.99

$

Usually ships in 3-10 days

0

30

Husqvarna 588064711

BOLT BOLT HEX .38-16 X 2.00 GR

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 588071604

SCREW SCREW, TAP 12-24 X .625

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588070102

LEVER LEVER RH OP MY14 HUSQ

$20.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588068701

GRIP GRIP, CLUTCH LEVER, LH AN

$11.99

$

Usually ships in 3-10 days

0

34

Husqvarna 588070601

NUT NUT, 10-24 KEPS

$

$

Not available

1

Husqvarna 588066901

CABLE CABLE - THROTTLE W/LINER

$148.99

$

Usually ships in 3-10 days

0

2

Husqvarna 588066903

CABLE CABLE, CHOKE

$62.99

$

Usually ships in 3-10 days

0

15

Husqvarna 588067301

CAP CAP - IGNITION SWITCH

$

$

Not available

13

Husqvarna 588072503

SWITCH SWITCH,INTERLOCK

$56.99

$

Usually ships in 3-10 days

0

18

Husqvarna 588070612

NUT NUT, PANEL .562-24 GRECO

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 588070103

LEVER LEVER, HAND CONTROL LH

$

$

Not available
