W 48122R (80036) - Snapper 48" Walk-Behind Mower, 12hp Fuel Tank Assembly Parts Diagram

48" Walk-Behind Mower, 12hp

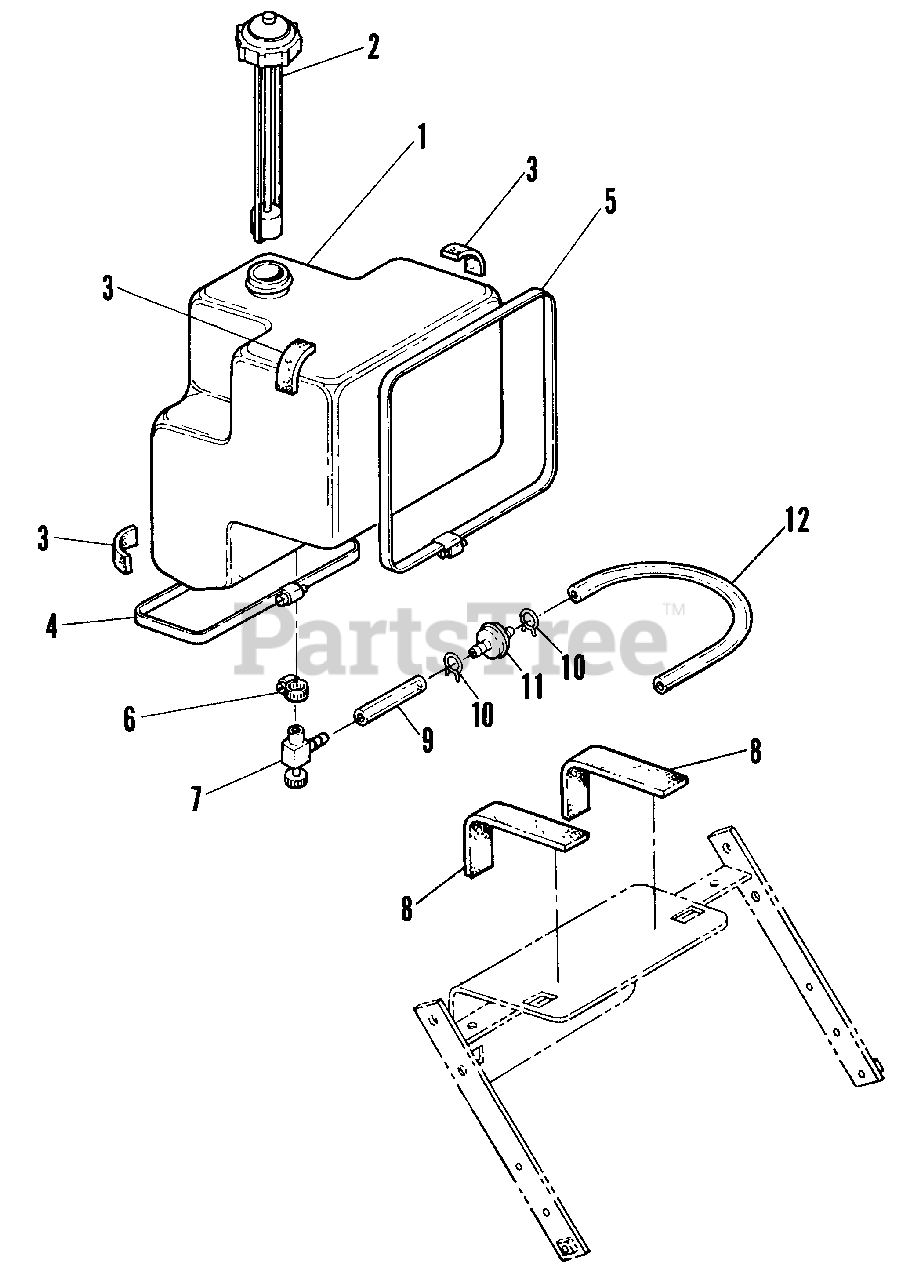

Fuel Tank Assembly Parts Diagram

  • Title

1

Snapper 7076393

TANK, Fuel w/Valve & Clamp

$

$

Not available

2

Snapper 7076535

CAP, Fuel Wt Gauge
(Superseded to 7076535YP)

$38.99

$

Usually ships in 2-12 days

0

3

Snapper 7077345

PAD, Fuel Tank
(Superseded to 7077345YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7076562

BAND, Fuel Tank (Short)

$

$

Not available

5

Snapper 7076563

BAND, Fuel Tank (Long)

$

$

Not available

6

Snapper 7076966

CLAMP, Fuel Tank Valve

$

$

Not available

7

Snapper 7076491

VALVE, Fuel Shut-Off

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7076537

PAD, Fuel Tank Saddle

$

$

Not available

9

Snapper 7077351

LINE, Fuel 3 1/2
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

10

Snapper 7029900

SPRING CLAMP, Gas Hose
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7014359

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

12

Snapper 7023479

LINE, Fuel 16
(Superseded to 791745)

Note: (Kawasaki)

$10.99

$

In Stock, Qty 7

0

Snapper 7022091

LINE, Fuel 19 1/2

Note: (Vanguard)

$

$

Currently unavailable
