W 48140S - Snapper 48" Walk-Behind Mower, 14hp Handle Assembly - Hardware (Model W48140S) Parts Diagram

48" Walk-Behind Mower, 14hp

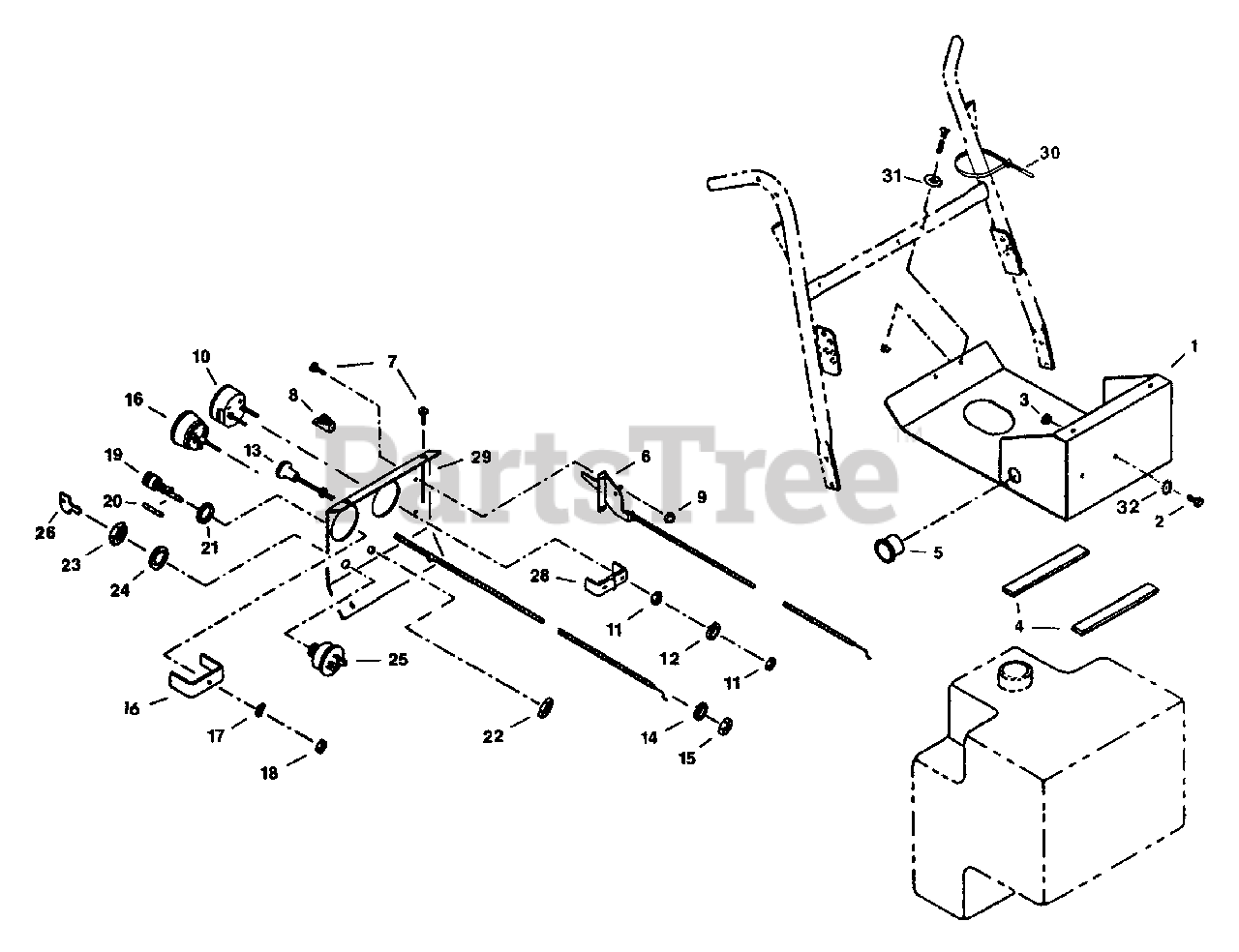

Handle Assembly - Hardware (Model W48140S) Parts Diagram

  • Title

1

Snapper 77373

Control Panel-Base Plate w/Decals

$

$

Currently unavailable

2

Snapper 7090071

1/4"-20x1/2" Hex Hd. Cap Screw
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

3

Snapper 7076978

1/4"-20 Nyloc Hex Nut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7076723

Control Panel Pad

$

$

Currently unavailable

5

Snapper 76920

Snap Bushing

$

$

Currently unavailable

6

Snapper 7076724

Throttle Control
(Superseded to 7076724YP)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 7076952

#10-24x5/8" Pan Hd. Slt. Mach. Screw
(Superseded to 7076952YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7076833

Throttle Control Knob
(Superseded to 7076833SM)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7076977

#10-24 Nyloc Hex Nut
(Superseded to 7076977YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 76821

Ammeter Complete w/Hdwe.

$

$

Currently unavailable

11

Snapper 7090013

#10-32 Hex Nut

$

$

Not available

12

Snapper 77699

#10 Lock Washer

$

$

Currently unavailable

13

Snapper 7076832

Choke Control Complete w/Hdwe.

$

$

Not available

14

Snapper 7090118

3/8" Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

15

Snapper 7090482

3/8"-24 Hex Jam Nut
(Superseded to 7090482SM)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7076820

Hour Meter Complete w/Hdwe.

$

$

Currently unavailable

17

Snapper 7090601

#10 External Tooth Lock Washer
(Superseded to 7090601YP)

$2.99

$

Usually ships in 2-12 days

0

18

Snapper 7090399

#10-24 Hex Nut

Note: Was 77696

$

$

Not available

19

Snapper 7076916

Fuse Holder Complete w/Hdwe.

$

$

Currently unavailable

20

Snapper 7076917

1/4"x1-1/4" AGC5 32V Fuse

$

$

Currently unavailable

21

Snapper 77660

Vinyl Washer

$

$

Currently unavailable

22

Snapper 7077661

Fuse Holder Nut

$

$

Currently unavailable

23

Snapper 7012685

Key Switch Nut
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7091546

5/8" Internal Tooth Lock Washer
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, Qty 6

0

25

Snapper 7026343

Key Switch Complete w/Hdwe.
(Superseded to 7026343SM)

Note: Was 76822

$38.99

$

In Stock, Qty 5

0

26

Snapper 7011138

Key
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 9

0

28

Snapper 7077379

Ammeter Bracket

$

$

Currently unavailable

29

Snapper 77374

Control Panel-Face Plate w/Decals

$

$

Currently unavailable

30

Snapper 7012080

Plastic Tie
(Superseded to 7012080SM)

Note: Was 76856

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 7090011

#10 Internal Tooth Lock Washer
(Superseded to 7090011SM)

$3.99

$

In Stock, only 1 left!

0

32

Snapper 7090395

5/16" External Tooth Lock Washer
(Superseded to 703138)

Note: Was 76985

$3.99

$

In Stock, Qty 11

0
