W 48140S - Snapper 48" Walk-Behind Mower, 14hp Wiring - Assembly Parts Diagram

48" Walk-Behind Mower, 14hp

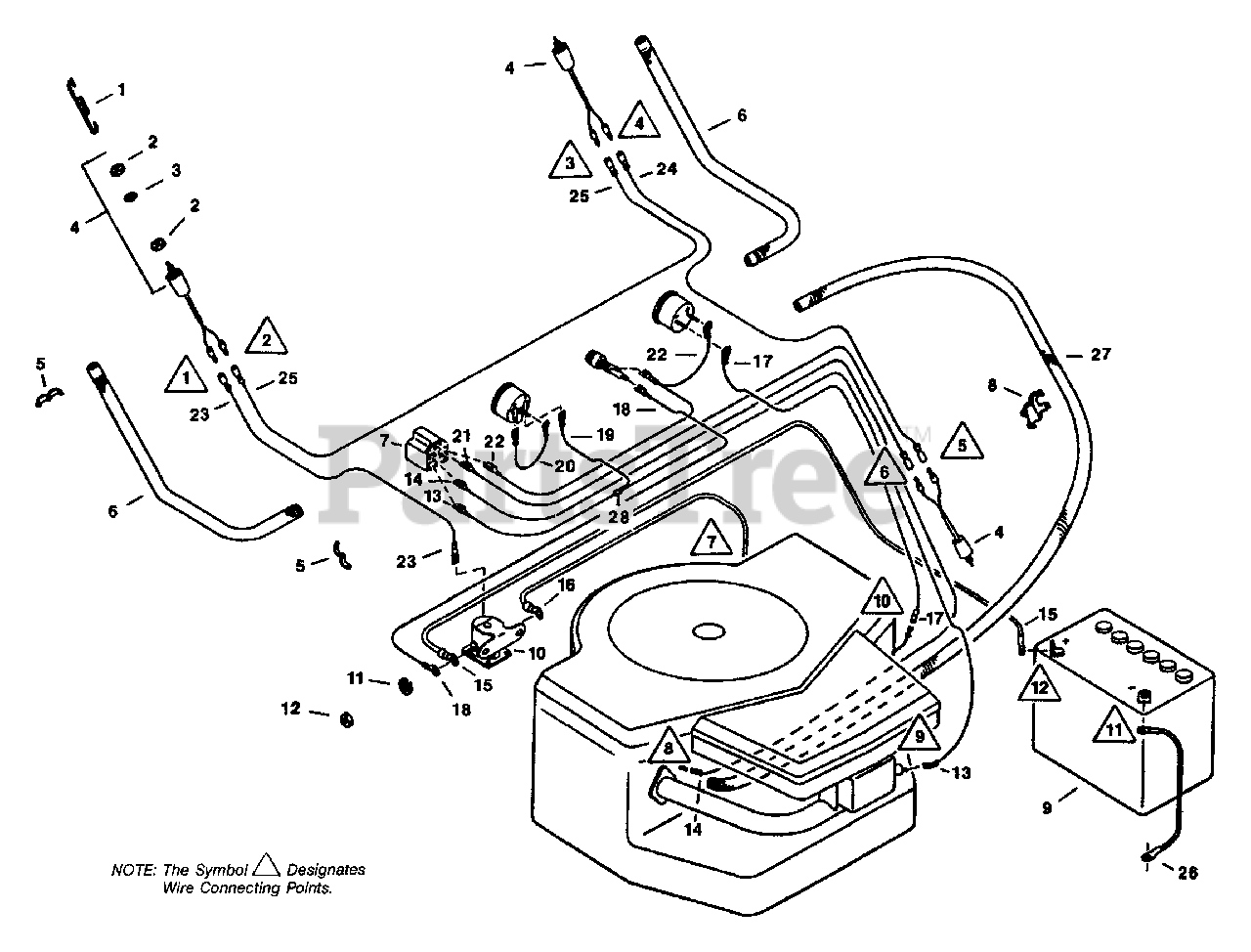

Wiring - Assembly Parts Diagram

  • Title

1

Snapper 7076564

Spring
(Superseded to 7076564YP)

$11.99

$

In Stock, only 2 left!

0

2

Snapper 7076406

M10 x .75 Hex Nut
(Superseded to 7076406YP)

Note: Was 77687

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7076406

Vinyl Washer
(Superseded to 7076406YP)

Note: Was 77688

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7076406

Interlock Switch-Complete
(Superseded to 7076406YP)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 76838

Flex Guard Clip

$

$

Currently unavailable

6

Snapper 76719

Flex Guard Loom

$

$

Currently unavailable

7

Snapper 76837

5 Terminal Connector

$

$

Currently unavailable

8

Snapper 7076841

Flex Guard Outlet

$

$

Currently unavailable

9

Snapper 76830

12 Volt Battery

$

$

Currently unavailable

10

Snapper 7075671

SOLENOID
(Superseded to 7075671YP)

Note: Was 18817

$32.99

$

In Stock, Qty 9

0

11

Snapper 7090187

5/16" Lock Washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

12

Snapper 7091511

5/16"-18 Regular Hex Nut
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, only 4 left!

0

13

Snapper 7076662

After Fire Wire

$

$

Currently unavailable

14

Snapper 76664

Engine Kill Wire

$

$

Currently unavailable

15

Snapper 7076672

Solenoid-Battery (Pos.) Cable

$

$

Currently unavailable

16

Snapper 7076671

Solenoid-Starter Cable

$

$

Currently unavailable

17

Snapper 76665

D.C. Wire

$

$

Currently unavailable

18

Snapper 76666

Fuse-Solenoid Wire

$

$

Currently unavailable

19

Snapper 76668

Hour Meter (Pos.) Wire

$

$

Currently unavailable

20

Snapper 76667

Hour Meter Ground Wire

$

$

Currently unavailable

21

Snapper 76670

L.L. Intlk.-"S" Term. Wire

$

$

Currently unavailable

22

Snapper 76669

Fuse - "B" Term. - Amp (Pos.) Wire

$

$

Currently unavailable

23

Snapper 76660

U.R. Intlk.-Sol. Starter Term. Wire

$

$

Currently unavailable

24

Snapper 7076661

U.L.-L.L. Intlk. Wire

$

$

Currently unavailable

25

Snapper 7076663

U.R.-U.L. Intlk. Wire

$

$

Currently unavailable

26

Snapper 76834

Battery (Neg.) Cable

$

$

Currently unavailable

27

Snapper 7076720

Flex Guard Loom

$

$

Currently unavailable

28

Snapper 7076919

Quick Splice

$

$

Currently unavailable

Snapper 77371

Wiring Kit Complete

$

$

Currently unavailable

Snapper 7060896

Switch Kit

Note: Use to replace interlock switches.

$

$

Currently unavailable
