W 48142BV (89150) - Snapper 48" Walk-Behind Mower, 14hp 48" Mower, Front Deck Parts Diagram

48" Walk-Behind Mower, 14hp

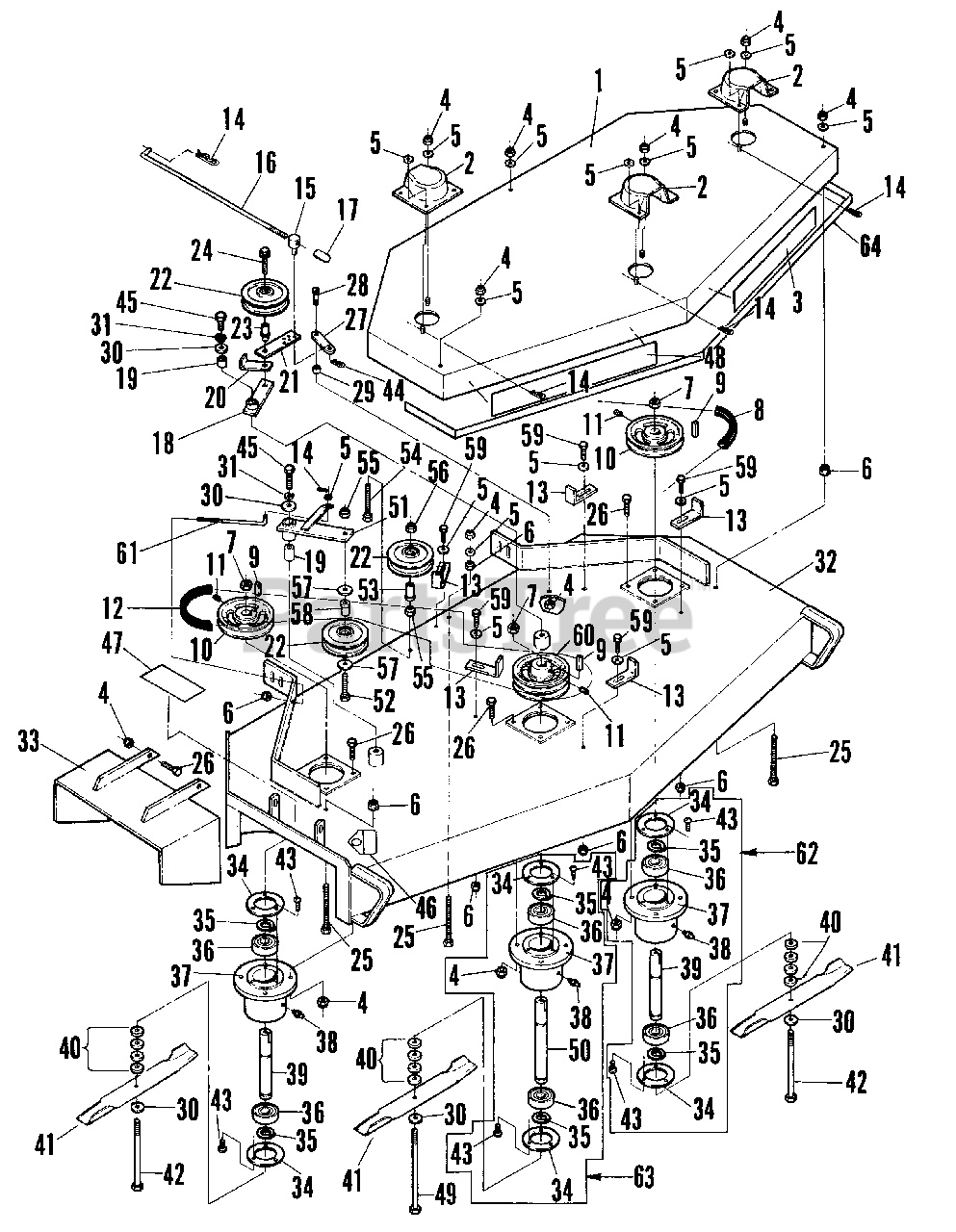

48" Mower, Front Deck Parts Diagram

  • Title

1

Snapper 7057643

BELT COVER W/DECALS
(Superseded to 7057643YP)

Note: (MY90)

$341.99

$

Usually ships in 2-12 days

0

2

Snapper 7076524

COVER, Spindle

$

$

Not available

3

Snapper 7023844

DECAL, 48 Inch
(Superseded to 7023844YP)

Note: (MY90)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 7091298

NUT, 5/16-18 Nyloc Hex
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 13

0

5

Snapper 7090692

WASHER, 5/16 Std. Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7091601

NUT, 5/16-18 Whizlock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7076980

NUT, 5/8-18 Hex
(Superseded to 7076980YP)

$3.99

$

In Stock, Qty 7

0

8

Snapper 7076677

BELT, Engine/Blade
(Superseded to 7076677YP)

$70.99

$

Usually ships in 2-12 days

0

9

Snapper 7012757

KEY, 1/4 Square x 1 1/4
(Superseded to 7012757YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 7076398

PULLEY, w/Set Screws

$

$

Not available

11

Snapper 7076956

SCREW, Set
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7076676

BELT, Blade to Blade
(Superseded to 7076676YP)

$47.99

$

Usually ships in 2-12 days

0

13

Snapper 7032874

GUIDE, Belt
(Superseded to 7032874YP)

$7.99

$

Usually ships in 2-12 days

0

14

Snapper 7076988

COTTER, #2 Hairpin
(Superseded to 7076988YP)

$3.49

$

In Stock, only 2 left!

0

15

Snapper 7077921

SWIVEL
(Superseded to 7077921YP)

$12.99

$

Usually ships in 2-12 days

0

16

Snapper 7077940

ROD, Blade Drive
(Superseded to 7077940YP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper 7023328

CAP

$

$

Not available

18

Snapper 7076646

ARM, Idler w/Bushing

$

$

Not available

19

Snapper 7076452

BUSHING

$

$

Not available

20

Snapper 7076681

SNUBBER, Belt

$

$

Not available

21

Snapper 7076686

ARM, Tightening

$

$

Not available

22

Snapper 7076688

PULLEY, Idler

$

$

Not available

23

Snapper 7076694

BUSHING, Flange

$

$

Not available

24

Snapper 7091580

BOLT, Flange Lock 3/8-16 X 1 3/4
(Superseded to 703812)

Note: Was 90701

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7076969

SCREW, Hex Head Cap 5/16-18 x 3 1/4

$

$

Not available

26

Snapper 7027168

SCREW, Hex Head Cap 5/16 - 18 x 1 GR. 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 3 left!

0

27

Snapper 7076687

ARM, Blade Assist

$

$

Currently unavailable

28

Snapper 7077001

BOLT, Knurled Socket Head Shoulder 3/8 x 3/4

$

$

Not available

29

Snapper 7076689

SPACER

$

$

Not available

30

Snapper 7076982

WASHER, Flat 5/8
(Superseded to 1960020SM)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090333

WASHER, Lock 5/8
(Superseded to 7090333YP)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 7057576

DECK, Front 48 w/Decals
(Superseded to 7057576YP)

$1048.99

$

Usually ships in 2-12 days

0

33

Snapper 7077752

DEFLECTOR, Chute
(Superseded to 7077752YP)

$106.99

$

Usually ships in 2-12 days

0

34

Snapper 7019096

CAP, CUTTER HOUSING
(Superseded to 7019096YP)

Note: (MY90)

$33.99

$

Usually ships in 2-12 days

0

35

Snapper 7023548

RING, RETAINING
(Superseded to 7023548YP)

Note: (MY90)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7019125

BEARING (Single Seal)
(Superseded to 7019125YP)

Note: (MY90)

$30.99

$

Usually ships in 2-12 days

0

37

Snapper 7027685

HOUSING, CUTTER
(Superseded to 7027685YP)

Note: (MY90)

$85.99

$

Usually ships in 2-12 days

0

38

Snapper 7076997

ZERK, 1/8 NPT

$

$

Currently unavailable

39

Snapper 7023418

SPINDLE, CUTTER
(Superseded to 7023418YP)

Note: (MY90)

$39.99

$

Usually ships in 2-12 days

0

40

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

41

Snapper 7017036

BLADE, 16 1/4 High Lift (.204)

Note: (MY90)

$

$

Not available

42

Snapper 7076946

SCREW, Hex Head Cap 5/8 - 18 x 7 1/2

$

$

Not available

43

Snapper 7090913

SCREW, SELF-TAPPING 10 - 24 x 1/2
(Superseded to 704060)

Note: Was 91034 (MY90)

$3.49

$

In Stock, Qty 12

0

44

Snapper 7076989

COTTER, Hairpin #4

$

$

Not available

45

Snapper 7090767

SCREW, Hex Head Cap 5/8 - 11 x 1

$

$

Not available

46

Snapper 7013010

DECAL, CPSC
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 20+

0

47

Snapper 7076533

DECAL, "Caution"

$

$

Not available

48

Snapper 7019293

DECAL, "SNAPPER"
(Superseded to 7044640YP)

Note: (MY90)

$4.99

$

Usually ships in 2-12 days

0

49

Snapper 7076947

SCREW, Hex Head Cap 5/8 -18 x 8"
(Superseded to 7076947YP)

$10.99

$

Usually ships in 2-12 days

0

50

Snapper 7027710

SPINDLE CUTTER
(Superseded to 7027710YP)

Note: (MY90)

$59.99

$

Usually ships in 2-12 days

0

51

Snapper 7076647

ARM, Idler Right w/Bushing

$

$

Not available

52

Snapper 7091305

SCREW, Hex Head Cap 3/8 - 16 x 2
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, Qty 10

0

53

Snapper 7076836

BUSHING, Idler Flange
(Superseded to 7076836YP)

$10.99

$

Usually ships in 2-12 days

0

54

Snapper 7091501

BOLT, Hex Head Tap 3/8 - 16 x 2 1/2
(Superseded to 703873)

Note: Was 76970

$4.49

$

In Stock, Qty 6

0

55

Snapper 7091299

NUT, Nyloc Hex 3/8 - 16
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

56

Snapper 7091619

NUT, Whizlock 3/8 - 16
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

57

Snapper 7090517

WASHER
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

58

Snapper 7076695

BUSHING, Idler Flange
(Superseded to 7076695YP)

$7.49

$

Usually ships in 2-12 days

0

59

Snapper 7091318

SCREW, Hex Head Cap 5/16 - 18 x 3/4
(Superseded to 704287)

Note: Was 76925

$3.99

$

In Stock, Qty 19

0

60

Snapper 7060899

PULLEY, Double w/Set Screws

Note: Was 76648

$

$

Currently unavailable

Snapper 7060899

SHEAVE, Taper Lock

Note: Was 19101 or 76648

$

$

Currently unavailable

Snapper 7023381

BUSHING, Sheave
(Superseded to 7023381YP)

Note: (For P/N 19101 Sheave)

$50.99

$

Usually ships in 2-12 days

0

61

Snapper 7076683

ROD, Belt Tension
(Superseded to 7076683YP)

$9.99

$

Usually ships in 2-12 days

0

62

Snapper 7059759

ASSEMBLY CUTTER HOUSING,

Note: (MY90)

$

$

Not available

63

Snapper 7059964

ASSEMBLY CUTTER HOUSING (CTR)
(Superseded to 7059964YP)

Note: (MY90)

$173.99

$

Usually ships in 2-12 days

0

64

Snapper 7023845

DECAL, STRIPE
(Superseded to 7023845YP)

Note: (MY90)

$14.99

$

Usually ships in 2-12 days

0
