W 4815 A (539104773-01) - Husqvarna 48" Walk-Behind Mower (2000-02) Wheel Drive & Axle Assembly Parts Diagram

48" Walk-Behind Mower

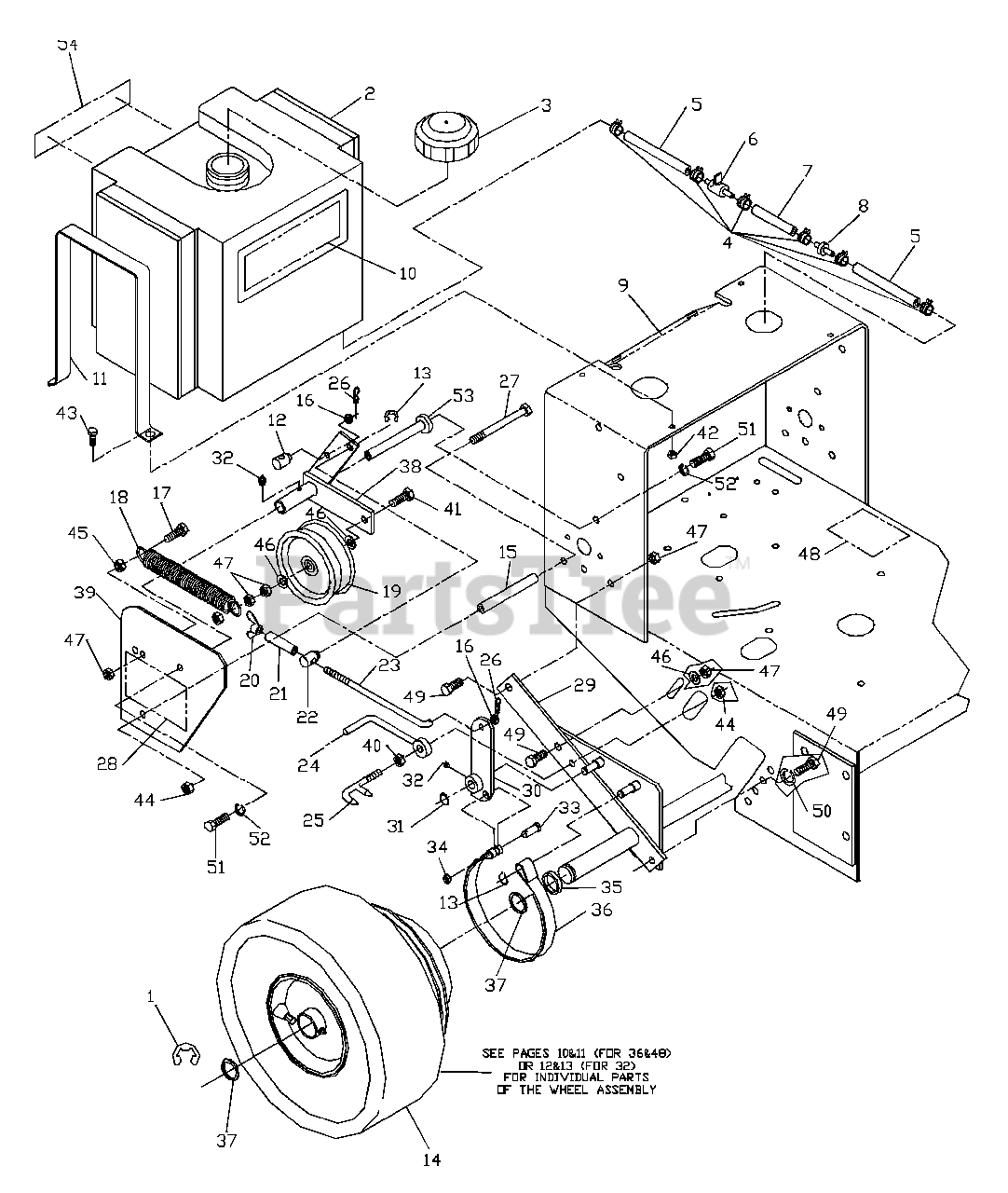

Wheel Drive & Axle Assembly Parts Diagram

  • Title

1

Husqvarna 539912730

1" E-RING
(Superseded to 812000053)

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 539100135

FUEL TANK

$84.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539914363

GAS CAP

$

$

Not available

4

Husqvarna 539912222

HOSE CLAMP (Kawasaki)

$4.99

$

In Stock, only 1 left!

0

4

HOSE CLAMP (Kohler)

$

$

Not available

5

Husqvarna 539932956

10" GAS LINE (Kawasaki)

$8.99

$

Usually ships in 3-10 days

0

5

10" GAS LINE (Kohler)

$

$

Not available

6

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539977351

3 1/2" GAS LINE (Kaw. only)

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104993

14" GAS LINE (Kohler)

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539914359

FUEL FILTER (Kaw. only)

$

$

Not available

9

Husqvarna 539104724

REAR DECK W/DECALS

$

$

Not available

10

Husqvarna 539104795

DECAL, W3212

$

$

Not available

10

Husqvarna 539104828

DECAL, W3213

$

$

Not available

10

Husqvarna 539104796

DECAL, W3612

$

$

Not available

10

Husqvarna 539104829

DECAL, W3613

$

$

Not available

10

Husqvarna 539104797

DECAL, W3614

$

$

Not available

10

Husqvarna 539104794

DECAL, W4814

$

$

Not available

10

Husqvarna 539104831

DECAL, W4815

$

$

Not available

11

Husqvarna 539100012

TANK STRAPS

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976434

SWIVEL(SHORT)

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990870

3/8" E-RING

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539104757

WHEEL ASM.(36&48)

Note: (WITH BRAKE DRUM & PULLEYS)

$400.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539104715

WHEEL ASM.(32)

Note: (WITH BRAKE DRUM & PULLEYS)

$236.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101992

LONG SPACER

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990692

5/16 FW STD
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539976941

HCS 3/8C X 1 1/4

$4.99

$

In Stock, Qty 6

0

18

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 12

0

19

Husqvarna 539101955

IDLER PULLEY

$36.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539100276

5/16C NYLOC WINGNUT

$

$

Not available

21

Husqvarna 539100097

SPACER

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539101940

SWIVEL

$27.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101939

BRAKE ROD

$

$

Not available

24

Husqvarna 539101973

BELT GUIDE

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102035

SCRAPER(36 & 48)

$30.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102155

SCRAPER(32)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539976988

#2 HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990145

HCS 5/16C X 5

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539104789

DECAL, SMALL CROWN

$

$

Not available

29

Husqvarna 539101931

AXLE WLDMT(36&48)

$363.99

$

In Stock, only 1 left!

0

29

Husqvarna 539102152

AXLE WLDMT(32)

$264.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101934

RT. BRAKE ARM

$

$

Not available

30

Husqvarna 539102135

LT. BRAKE ARM

$46.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101949

1/2' E-RING

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976998

ZERK 1/4-28 STRHT
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

33

Husqvarna 539102049

CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539913847

BOLT RETAINER 3/8

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539921960

SPACER

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101945

BRAKE BAND

$44.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539916561

MACH. BUSHING

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539102169

IDLER PLATE, LT

$133.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539102168

IDLER PLATE, RT

$145.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101969

FENDER

$72.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990585

HFLN 5/16C

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101350

3/8C X 3 TAPBOLT

$6.49

$

In Stock, only 4 left!

0

42

Husqvarna 539990761

HLN 1/4C

$4.99

$

In Stock, only 4 left!

0

43

Husqvarna 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990184

HLN 5/16C

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990613

HFLN 3/8C

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990517

FW 3/8 STD

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990546

HLN 3/8C CENTER P.

$

$

Not available

48

Husqvarna 539101881

DECAL, PROP. 65
(Superseded to 596024201)

$2.49

$

In Stock, only 4 left!

0

49

Husqvarna 539990563

HCS 3/8C X 1

$1.49

$

Usually ships in 3-10 days

0

50

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

52

Husqvarna 539990187

SLW 5/16 STD
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

53

Husqvarna 539102188

SHOULDER PIVOT TUBE

$19.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539104787

DECAL, HUSQVARNA

$

$

Not available
