W 4815 A (968999110) - Husqvarna 48" Walk-Behind Mower (2001-02) Wheel Drive & Axle Assembly Parts Diagram

48" Walk-Behind Mower

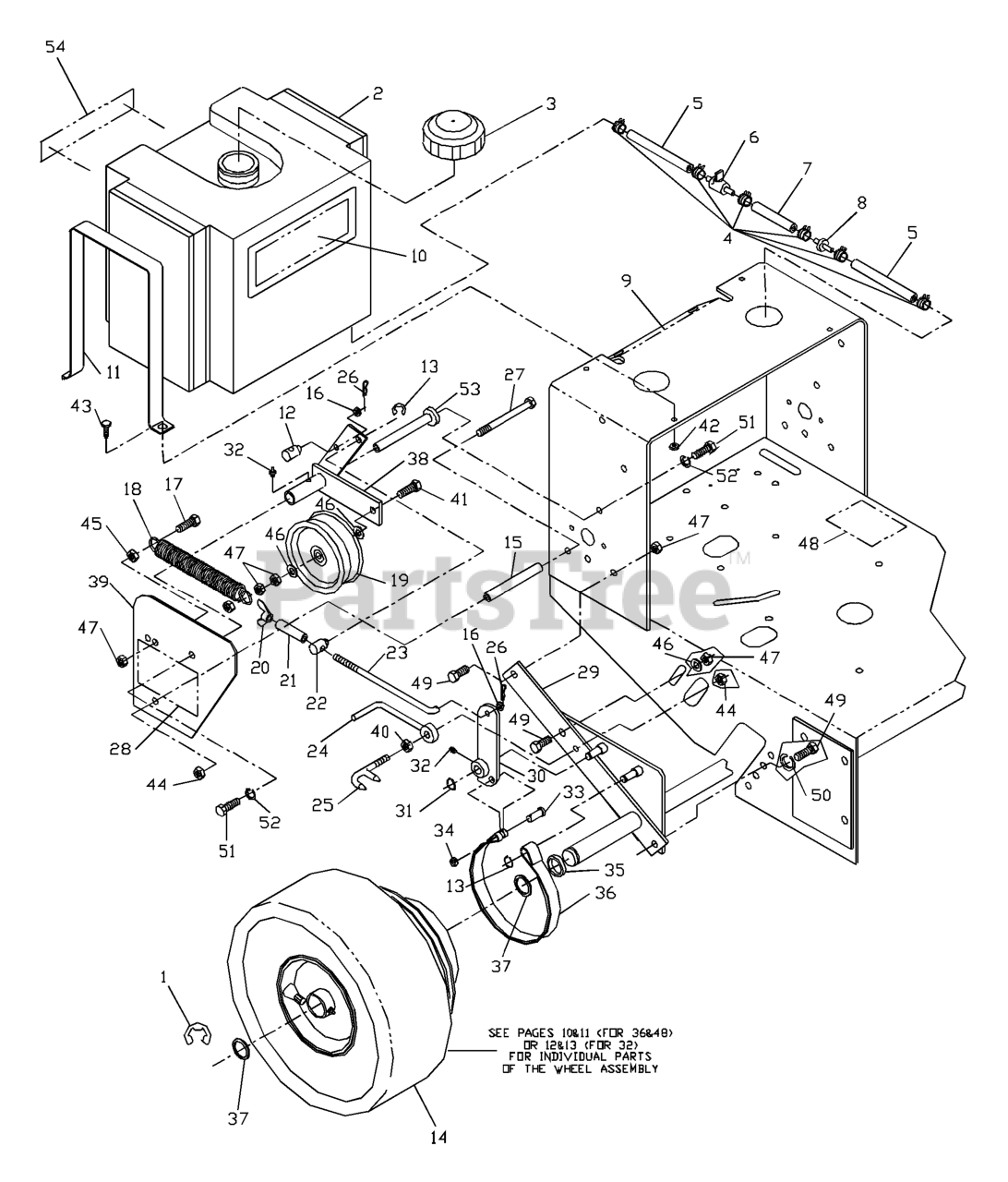

Wheel Drive & Axle Assembly Parts Diagram

  • Title

1

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$3.99

$

In Stock, only 4 left!

0

2

Husqvarna 539100135

FUEL TANK

$

$

Not available

3

Husqvarna 539914363

FUEL CAP

$

$

Not available

4

Husqvarna 539912222

HOSE CLAMP

Note: (Kawasaki)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539912222

HOSE CLAMP

Note: (Kohler)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539932956

GAS LINE 10"

Note: (Kawasaki)

$

$

Not available

5

Husqvarna 539932956

GAS LINE 10"

Note: (Kohler)

$

$

Not available

6

Husqvarna 539916325

FUEL VALVE

$13.99

$

In Stock, only 1 left!

0

7

Husqvarna 539977351

GAS LINE 3 1/2"

Note: (Kaw. only)

$

$

Not available

7

Husqvarna 539104993

FUEL LINE 14"

Note: (Kohler)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539914359

FUEL FILTER

Note: (Kaw. only)

$

$

Not available

9

Husqvarna 539104724

REAR DECK W/DECALS

$

$

Not available

10

Husqvarna 539104795

DECAL W3212

$

$

Not available

10

Husqvarna 539104828

DECAL, W3213

$

$

Not available

10

Husqvarna 539104796

DECAL - W3612

$

$

Not available

10

Husqvarna 539104829

DECAL, W3613

$

$

Not available

10

Husqvarna 539104797

DECAL - W3614

$

$

Not available

10

Husqvarna 539104794

DECAL WH3614

$

$

Not available

10

Husqvarna 539104831

DECAL, W4815

$

$

Not available

11

Husqvarna 539100012

TANK STRAPS

$

$

Not available

12

Husqvarna 539976434

SWIVEL (SHORT)

$

$

Not available

13

Husqvarna 539990870

E RING 3/8"

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 539104757

WHEEL PARTS KIT

Note: (36 & 48); (WITH BRAKE DRUM & PULLEYS)

$

$

Not available

14

Husqvarna 539104715

WHEEL ASM

Note: (32); (WITH BRAKE DRUM & PULLEYS)

$

$

Not available

15

Husqvarna 539101992

SPACER, LONG

$

$

Not available

16

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 539101977

SPRING

$13.99

$

In Stock, Qty 5

0

19

Husqvarna 539101955

PULLEY, IDLER

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539100276

WINGNUT, 5/16C NYLOC

$

$

Not available

21

Husqvarna 539100097

SPACER

$

$

Not available

22

Husqvarna 539101940

SWIVEL

$

$

Not available

23

Husqvarna 539101939

BRAKE ROD

$

$

Not available

24

Husqvarna 539101973

BELT GUIDE

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102035

SCRAPER (36 & 48)

Note: (36 & 48)

$45.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102155

SCRAPER

Note: (32)

$

$

Not available

26

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 11

0

27

Husqvarna 539990145

HCS 5/16C X 5

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

29

Husqvarna 539101931

AXLE WELDMENT (36 & 48)

Note: (36 & 48)

$512.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102152

AXLE WELDMENT (32)

Note: (32)

$

$

Not available

30

Husqvarna 539101934

BRAKE ARM, RIGHT

$

$

Not available

30

Husqvarna 539102135

BRAKE ARM, LEFT

$

$

Not available

31

Husqvarna 539101949

E-RING 1/2 (2 2)
(Superseded to 596671501)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539102049

CLEVIS PIN

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$3.49

$

In Stock, only 2 left!

0

35

Husqvarna 539921960

SPACER

$

$

Not available

36

Husqvarna 539101945

BRAKE BAND

$30.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539916561

MACHINE BUSHING
(Superseded to 596319701)

$3.49

$

In Stock, only 2 left!

0

38

Husqvarna 539102169

IDLER PLATE, LEFT

$

$

Not available

38

Husqvarna 539102168

IDLER PLATE, RIGHT

$

$

Not available

39

Husqvarna 539101969

FENDER

$

$

Not available

40

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539101350

TAPBOLT, 3/8C X 3

$5.99

$

In Stock, only 1 left!

0

42

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$3.49

$

In Stock, only 4 left!

0

43

Husqvarna 539977761

HCS 1/4C X 1

$1.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.49

$

In Stock, Qty 14

0

45

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.49

$

In Stock, Qty 12

0

46

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 539101881

DECAL, PROP. 65
(Superseded to 596024201)

$

$

Not available

49

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

50

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

52

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

53

Husqvarna 539102188

SHOULDER PIVOT TUBE

$

$

Not available

54

Husqvarna 539104787

DECAL, HUSQVARNA LOGO 9.25"

$

$

Not available
