W 520 i - Husqvarna Walk-Behind Mower CHASSIS Parts Diagram

Walk-Behind Mower

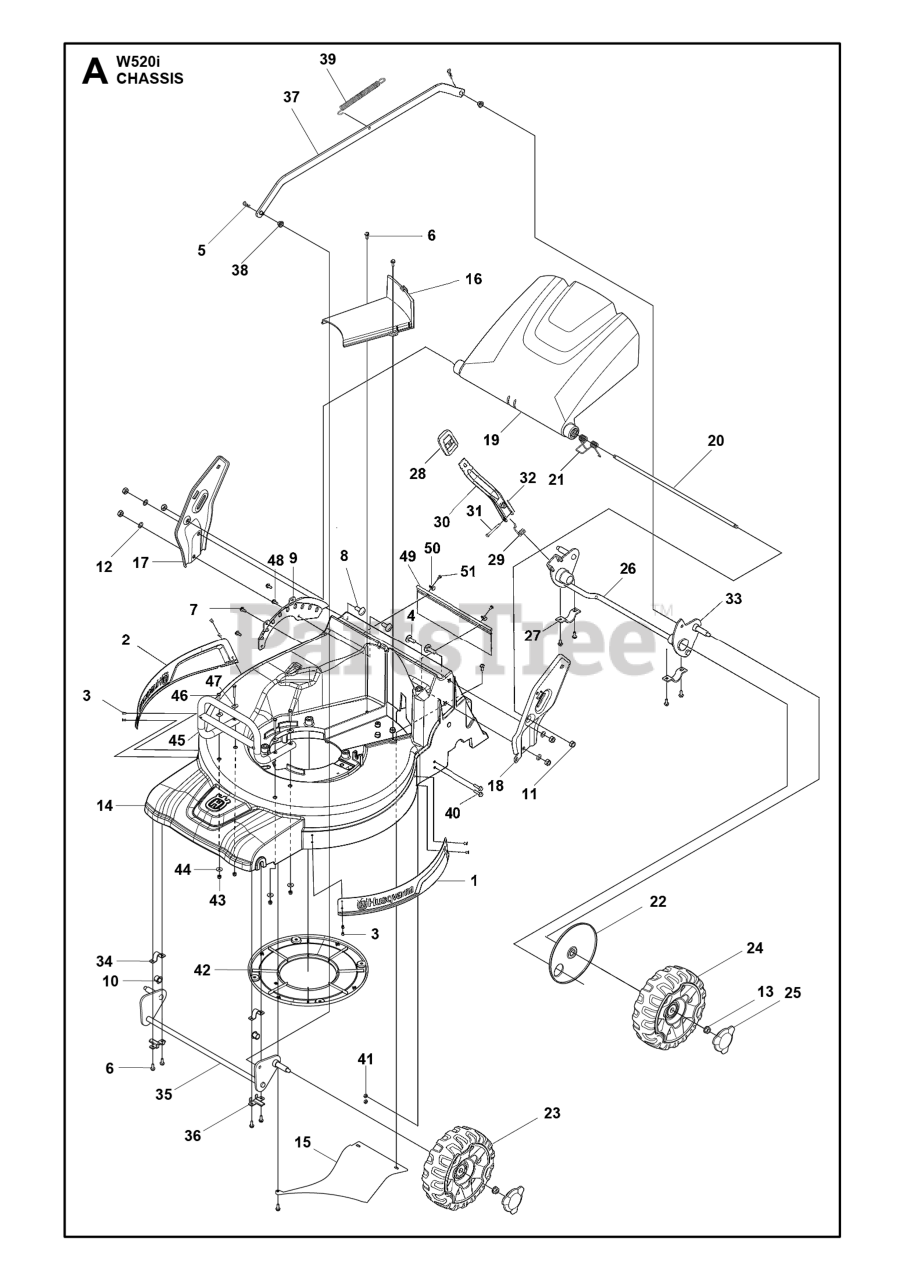

CHASSIS Parts Diagram

  • Title

2

Husqvarna 582229002

Bumpers

$31.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587196702

Handles

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna 587197901

Covers

$13.99

$

Usually ships in 3-10 days

0

1

Husqvarna 582229001

Bumpers

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 588877501

Screws

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 599232201

AXLES

$68.99

$

Usually ships in 3-10 days

0

37

Husqvarna 587198502

RODS

$56.99

$

Usually ships in 3-10 days

0

11

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

50

Husqvarna 599242401

BRACKETS

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 722785402

Rivet

$2.49

$

Usually ships in 3-10 days

0

51

Husqvarna 502435201

SCREW ITXPANTT M5X10 ZPB (A00

$24.99

$

Usually ships in 3-10 days

0

24

Husqvarna 589859804

Wheels

$69.99

$

Usually ships in 3-10 days

0

49

Husqvarna 599233201

GUARDS

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587197508

CHASSIS

$568.99

$

Usually ships in 3-10 days

0

38

Husqvarna 501622501

Bushings

$8.99

$

Usually ships in 3-10 days

0

40

Husqvarna 725233151

SCREW M6S 5X20

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 599233001

SPRING HEIGHT ADJUSTER

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 584159401

NUT CAP

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 583951302

Springs

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 599233102

GUARDS

$125.99

$

Usually ships in 3-10 days

0

33

Husqvarna 584404601

Ball Bearings

$9.99

$

Usually ships in 3-10 days

0

47

Husqvarna 514026600

WASHER

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 599231401

AXLES

$102.99

$

Usually ships in 3-10 days

0

43

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 531207856

Screws

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 504857801

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

44

Husqvarna 504459901

Washers

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 587197203

HATCH

$68.99

$

Usually ships in 3-10 days

0

27

Husqvarna 531206652

Supports

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 582866701

Covers

$36.99

$

Usually ships in 3-10 days

0

9

Husqvarna 599232501

BRACKETS

$28.99

$

Usually ships in 3-10 days

0

16

Husqvarna 531213225

Covers

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 501322501

SPRING 51 CAST

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 591162601

Supports

$9.99

$

Usually ships in 3-10 days

0

10

Husqvarna 590373601

Bushings

$48.99

$

Usually ships in 3-10 days

0

28

Husqvarna 581746701

Knobs

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 581178602

Levers

$22.99

$

Usually ships in 3-10 days

0

5

Husqvarna 531206653

Pins

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 504460002

Screws

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501966001

DEFLECTOR

$31.99

$

Usually ships in 3-10 days

0

18

Husqvarna 587196802

Handles

$45.99

$

Usually ships in 3-10 days

0

46

Husqvarna 725237871

Hex Head Capscrew, M6 X 1.00 X 40MM

$2.49

$

Usually ships in 3-10 days

0

20

Husqvarna 587197301

Rods

$20.99

$

Usually ships in 3-10 days

0

32

Husqvarna 587198401

Pins

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 589859803

Wheels

$82.99

$

Usually ships in 3-10 days

0

34

Husqvarna 501078901

Supports

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 732251401

LOCK NUT

$3.49

$

In Stock, only 1 left!

0

31

Husqvarna 587198202

Pins

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 531207385

SCREW

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 531204921

Screws

$6.99

$

Usually ships in 3-10 days

0
