W-54 K (11A-54K1090) - White Outdoor 21" Walk-Behind Mower (2008) Engine Assembly Parts Diagram

21" Walk-Behind Mower

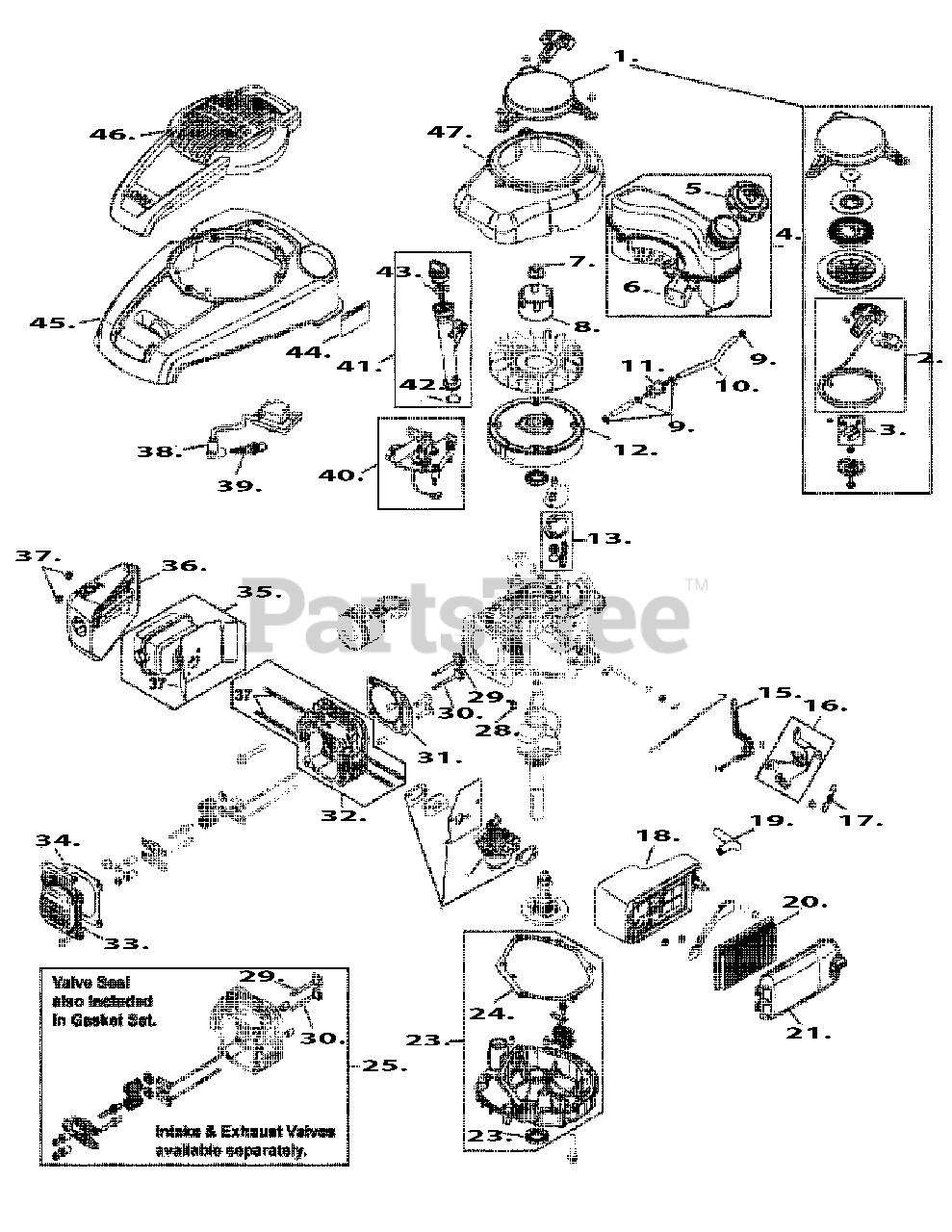

Engine Assembly Parts Diagram

  • Title

1

White Outdoor KH-14-165-01-S

STARTER, RECOIL
(Superseded to KH-14-165-07-S)

Note: (INCLUDES 2,3, RECOIL HOUSING, RECOIL BUSHING, RECOIL GUIDE PLATE, RECOIL SPRINGS, RECOIL PULLEY, RECOIL RETAINER PLATE, RECOIL SHOULDER SCREW)

$104.99

$

In Stock, Qty 12

0

2

White Outdoor KH-14-160-01-S

KIT, STARTER ROPE W/ HANDLE

Note: (INCLUDES COIL STARTER ROPE, RECOIL STARTER HANDLE, RECOIL STARTER HANDLE RETAINER, RECOIL ROPE RETAINER)

$12.99

$

In Stock, Qty 16

0

3

White Outdoor KH-14-379-01-S

KIT, PAWL REPAIR

Note: (INCLUDES RECOIL SPRING)

$6.49

$

In Stock, Qty 11

0

4

White Outdoor KH-14-065-01-S

KIT, FUEL TANK

Note: (INCLUDES 5)

$58.99

$

Usually ships in 2-5 days

0

5

White Outdoor KH-14-227-04-S

CAP, FUEL ASSY.

$

$

Not available

6

White Outdoor KH-14-126-16-S

BRACKET, FUEL TANK (LOWER)

$12.99

$

Usually ships in 2-5 days

0

7

White Outdoor KH-14-100-02-S

NUT, FLYWHEEL

$

$

Not available

8

White Outdoor KH-14-109-02-S

CUP, DRIVE

$

$

Not available

9

White Outdoor KH-14-237-01-S

CLAMP, FUEL LINE

$3.49

$

In Stock, Qty 9

0

10

White Outdoor KH-25-111-34-S

LINE, FUEL
(Superseded to KH-25-111-81-S)

Note: (24"-CUT TO LENGTH)

$17.99

$

In Stock, Qty 20+

0

11

White Outdoor KH-25-050-07-S

FILTER, FUEL

$10.99

$

In Stock, Qty 12

0

12

White Outdoor KH-14-025-02-S

FLYWHEEL (ALUMINUM)

$161.99

$

Usually ships in 2-5 days

0

13

White Outdoor KH-14-050-01-S

KIT, BREATHER FILTER

Note: (INCLUDES BREATHER COVER GASKET, BREATHER COVER SPRING, BREATHER FILTER, BREATHER REED)

$17.99

$

In Stock, Qty 5

0

15

White Outdoor KH-14-090-04-S

LEVER, GOVERNOR

$8.49

$

Usually ships in 2-5 days

0

16

White Outdoor KH-14-536-03-S

BRACKET, CONTROL

Note: (FIX. SP., REM. CHOKE)

$21.99

$

Usually ships in 2-5 days

0

17

White Outdoor KH-14-089-05-S

SPRING, GOVERNOR

$8.49

$

In Stock, Qty 9

0

18

White Outdoor KH-14-094-07-S

KIT, AIR CLEANER BASE
(Superseded to KH-14-094-23-S)

Note: (MAN. CHOKE) (INCLUDES AIR CLEANER BASE GASKET)

$40.99

$

Usually ships in 2-5 days

0

19

White Outdoor KH-14-123-01-S

TUBE, BREATHER
(Superseded to KH-14-123-05-S)

$8.49

$

In Stock, only 2 left!

0

20

White Outdoor KH-14-083-01-S

ELEMENT, AIR CLEANER
(Superseded to 1408301S1C)

$22.99

$

In Stock, Qty 9

0

21

White Outdoor KH-14-096-09-S

COVER, AIR CLEANER
(Superseded to KH-14-096-110-S)

$28.99

$

In Stock, Qty 7

0

22

White Outdoor KH-14-199-01-S

KIT, OIL PAN

Note: (INCLUDES 26, 27, GOVERNER GEAR ASSEMBLY, DOWEL PIN)

$116.99

$

Usually ships in 2-5 days

0

23

White Outdoor KH-14-032-05-S

SEAL, OIL (PTO)

$14.99

$

In Stock, only 2 left!

0

24

White Outdoor KH-14-041-06-S

GASKET, OIL PAN

$14.99

$

In Stock, only 3 left!

0

25

White Outdoor KH-14-755-02-S

KIT, VALVE TRAIN

Note: (INCLUDES 29, 30, VALVE SPRING RETAINER, VALVE STEM SEAL, ROCKER ARM STUD, VALVE SPRING, JAM NUT, PUSHROD GUIDE PLATE, ROCKER ARM, CYLINDER HEAD DOWEL, PUSH ROD, ROCKER ARM PIVOT)

$

$

Not available

26

White Outdoor KH-14-041-05-S

KIT, CARB GASKET
(Superseded to KH-14-041-31-S)

Note: (INCLUDES CARBURETOR HEAT SHIELD GASKET, SPACER GASKET, AIR CLEANER BASE GASKET)

$20.99

$

In Stock, Qty 15

0

27

White Outdoor KH-14-853-02-S

KIT, CARBURETOR (CHOKE) W/ GASKETS
(Superseded to KH-14-853-15-S)

Note: (INCLUDES 26)

$65.99

$

Usually ships in 2-5 days

0

28

White Outdoor KH-14-340-01-S

KEY, FLYWHEEL

$3.99

$

In Stock, Qty 11

0

29

White Outdoor KH-14-017-01-S

VALVE, INTAKE

$25.99

$

Usually ships in 2-5 days

0

30

White Outdoor KH-14-016-01-S

VALVE, EXHAUST

$30.99

$

Usually ships in 2-5 days

0

31

White Outdoor KH-14-841-04-S

KIT, HEAD GASKET
(Superseded to KH-14-841-34-S)

Note: (INCLUDES 26, CYLINDER HEAD GASKET, MUFFLER GASKET)

$30.99

$

In Stock, only 1 left!

0

32

White Outdoor KH-14-318-01-S

KIT, CYLINDER HEAD

Note: (INCLUDES CARBURETOR STUD, EXHAUST STUD)

$132.99

$

Usually ships in 2-5 days

0

33

White Outdoor KH-14-096-05-S

KIT, VALVE COVER
(Superseded to KH-14-096-62-S)

Note: (INCLUDES 34)

$26.99

$

Usually ships in 2-5 days

0

34

White Outdoor KH-14-041-01-S

GASKET, VALVE COVER

$13.99

$

In Stock, Qty 5

0

35

White Outdoor KH-14-068-01-S

KIT, MUFFLER

Note: (INCLUDES MUFFLER GASKET)

$

$

Not available

36

White Outdoor KH-14-314-02-S

SHIELD, MUFFLER

$

$

Not available

37

White Outdoor KH-14-072-06-S

KIT, EXHAUST HDW.

Note: (INCLUDES MUFFLER GASKET, EXHAUST STUD & FLANGE LOCK NUT)

$16.99

$

In Stock, only 2 left!

0

38

White Outdoor KH-14-584-05-S

MODULE, IGNITION

Note: (ALUM., STD. IGN.)

$80.99

$

In Stock, only 4 left!

0

39

White Outdoor 759-3336

PLUG, SPARK
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

40

White Outdoor KH-14-219-01-S

KIT, FLYWHEEL BRAKE

Note: (INCLUDES BRAKE LEVER, BRAKE SPRING, FLANGE NUTS, BRAKE PAD, GROUND TO KILL LEADS, SCREWS, SWITCH INSULATORS, BRAKE SWITCH CONTACT, BRAKE SPACER, BRAKE BRACKET, FLANGE SCREW, BRAKE LEVER SCREW, NYLON FLATWASHER)

$33.99

$

Usually ships in 2-5 days

0

41

White Outdoor KH-14-123-04-S

KIT, DIPSTICK AND TUBE

Note: (INCLUDES 42, 43)

$21.99

$

Usually ships in 2-5 days

0

42

White Outdoor KH-14-153-03-S

O-RING, OIL FILL TUBE

$4.99

$

In Stock, Qty 10

0

43

White Outdoor KH-14-153-01-S

O-RING, DIPSTICK

$3.99

$

Usually ships in 2-5 days

0

44

White Outdoor KH-14-113-03-S

DECAL, WARNING

$

$

Not available

45

White Outdoor KH-14-096-13-S

COVER, ENGINE (GRAY)

$

$

Not available

46

White Outdoor KH-14-332-04-S

INSERT, ENGINE COVER

$

$

Not available

47

White Outdoor KH-14-027-01-S

HOUSING, BLOWER

$34.99

$

Usually ships in 2-5 days

0

White Outdoor KH-14-755-01-S

GASKET SET

Note: (INCLUDES 23-24, 26, 31, 34, 42-43, BREATHER COVER GASKET, GOVERNOR LEVER OIL SEAL, VALVE STEM SEAL, HEAT DEFLECTOR EXHAUST GASKET, HEAD GASKET, CRANKCASE/FLYWHEEL SEAL)

$

$

Not available
