W 548 (967657701) - Husqvarna 48" Walk-Behind Mower (2017-10) PARKING BRAKE Parts Diagram

48" Walk-Behind Mower

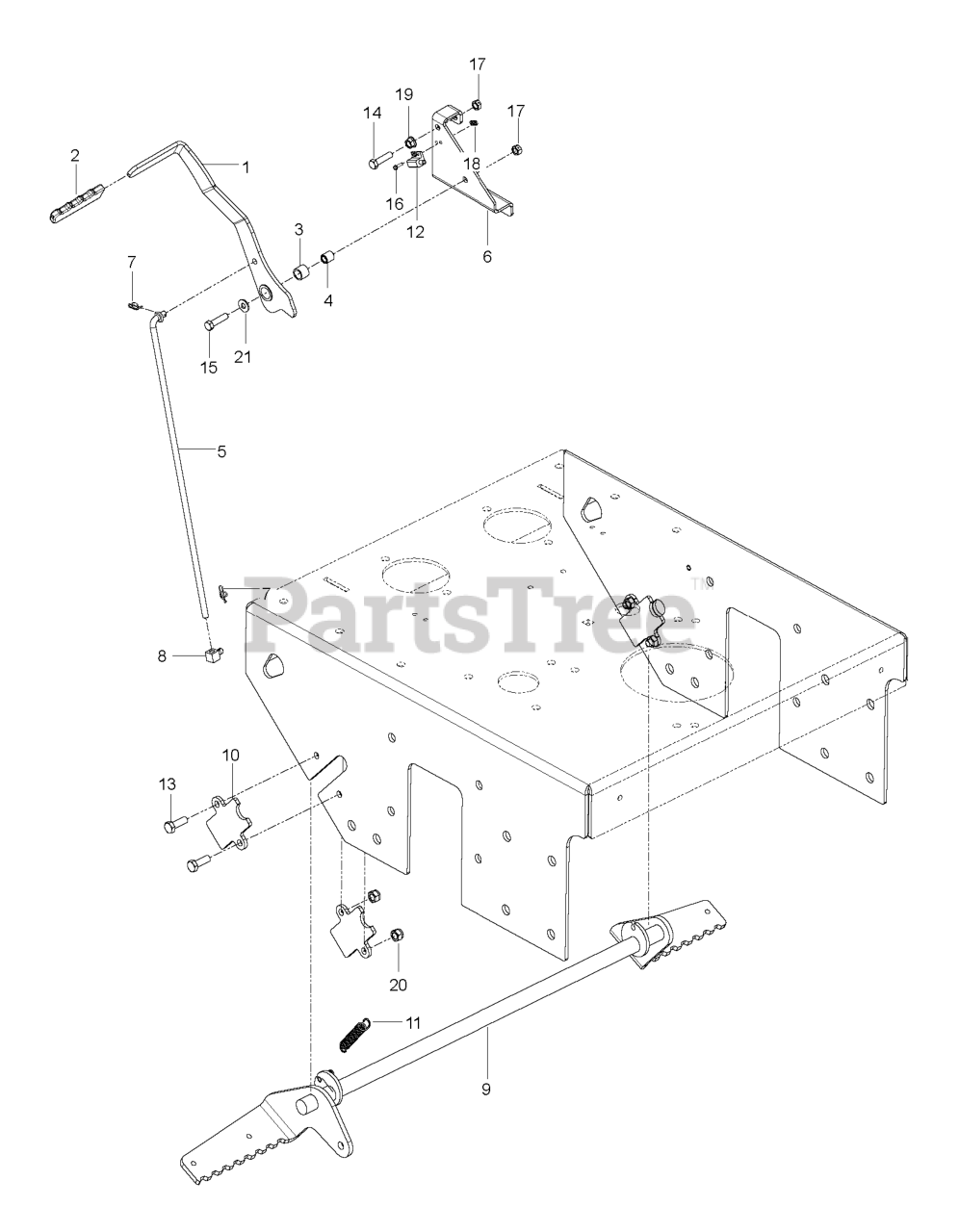

PARKING BRAKE Parts Diagram

  • Title

1

Husqvarna 592772401

LEVER PARK BRAKE LEVER WLDT 43

$

$

Not available

2

Husqvarna 592782201

GRIP GRIP TCU19034

$23.99

$

Usually ships in 3-10 days

0

3

Husqvarna 592765401

BUSHING PARK BRAKE LEVER BUSHI

$8.49

$

Usually ships in 3-10 days

0

4

Husqvarna 592765501

SPACER PARK BRAKE LEVER SPACER

$53.99

$

Usually ships in 3-10 days

0

5

Husqvarna 592763801

ROD DRIVE CONTROL FW 3858911

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 592771601

BRAKE BRAKE LOCATOR ARM WD 393

$53.99

$

Usually ships in 3-10 days

0

7

Husqvarna 592762801

RING RUE .375 X .054 X 1.254 R

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 588072601

SWIVEL SWIVEL, 3/8-24

$

$

Not available

9

Husqvarna 592771401

SHAFT, BRAKE

$275.99

$

Usually ships in 3-10 days

0

10

Husqvarna 592764001

SHOE BRAKE SYSTEM FLOAT WALK 3

$

$

Not available

11

Husqvarna 592775901

BRAKE SG-EXT WALK PARK BRAKE 8

$27.99

$

Usually ships in 3-10 days

0

12

Husqvarna 592763301

SWITCH DOUBLE POLE N.O./N.O. 3

$33.99

$

In Stock, only 1 left!

0

13

Husqvarna 588064705

BOLT BOLT HEX .31-18 X 1.00 GR

$

$

Not available

14

Husqvarna 588064708

BOLT BOLT HEX .38-16 X 1.00 GR

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 592815801

SERVICE PARTS SYSTEM BOLT-HEX

$

$

Not available

16

Husqvarna 588071602

SCREW SCREW, MCH 10-24 X .75 H

$

$

Not available

17

Husqvarna 588070605

NUT NUT, LK-CTR .38-16 YWZC

$

$

Not available

18

Husqvarna 588070601

NUT NUT, 10-24 KEPS

$

$

Not available

19

Husqvarna 592819201

NUT .375-16 WHIZ LOCK FLANGE

$

$

Not available

20

Husqvarna 592819501

SERVICE PARTS SYSTEM NUT-LK-NY

$

$

Not available

21

Husqvarna 588073208

WASHER WASHER, FL-STL .38 X .8

$

$

Not available
