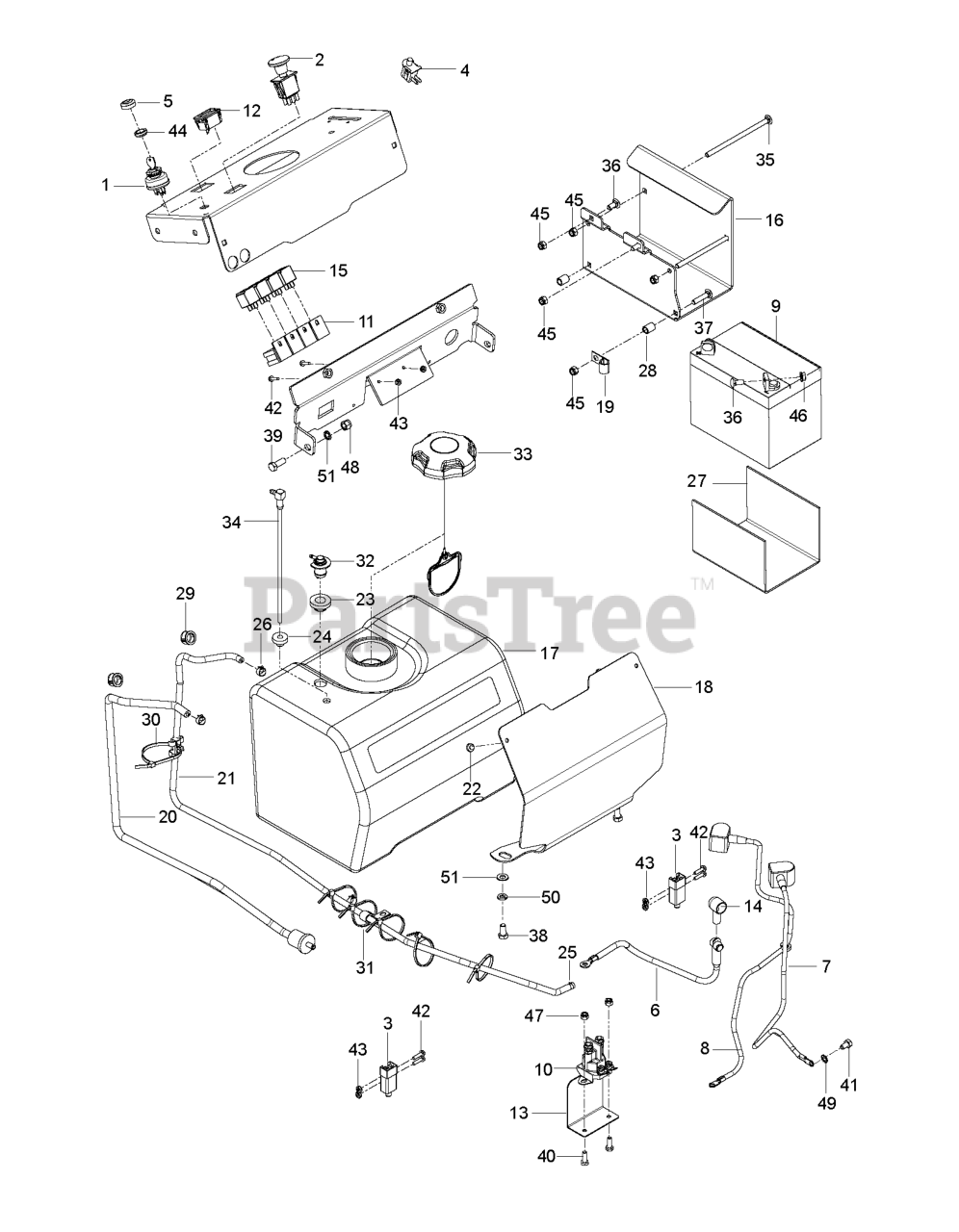

W 552 (967657801) - Husqvarna 52" Walk-Behind Mower (2017-10) IGNITION SYSTEM Parts Diagram

52" Walk-Behind Mower

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 592761901

SWITCH KEY-3 POSITION 180620

$65.99

$

Usually ships in 3-10 days

0

2

Husqvarna 592764901

SWITCH CLUTCH (WITH GRAPHIC) 4

$119.99

$

Usually ships in 3-10 days

0

3

Husqvarna 591498901

SWITCH NEUTRAL 00191256
(Superseded to 588072503)

$59.99

$

Usually ships in 3-10 days

0

4

Husqvarna 592780401

SWITCH SEAT OVERRIDE (N.O.) SW

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588067301

CAP CAP - IGNITION SWITCH

$

$

Not available

6

Husqvarna 592762001

CABLE 12" STARTER 180842

$

$

Not available

7

Husqvarna 592763001

CABLE BATTERY GROUND 25" 33879

$

$

Not available

8

Husqvarna 592763101

CABLE BATTERY POSITIVE 25" 338

$

$

Not available

9

Husqvarna 592762901

BATTERY 300 CCA 10U1L BATTERY

$

$

Not available

10

Husqvarna 592763201

SOLENOID SOLENOID 3551000

$119.99

$

Usually ships in 3-10 days

0

11

Husqvarna 592764401

HARNESS MY2011FSWLK ELE START

$1316.99

$

Usually ships in 3-10 days

0

12

Husqvarna 592764601

METER HOUR SMART SENSE W/O SV

$65.99

$

Usually ships in 3-10 days

0

13

Husqvarna 592764801

COVER SOLENOID (GREY) 4225047

$

$

Not available

14

Husqvarna 592775401

EYELET EYELET TERMINAL BOOT 75

$

$

Not available

15

Husqvarna 592728201

RELAY ISO MINI ELEC. 102770

$47.99

$

Usually ships in 3-10 days

0

16

Husqvarna 592765701

TRAY BATTERY ELEC 4450948

$

$

Not available

17

Husqvarna 588072701

TANK TANK, FUEL LOW PERM HUSQ

$

$

Not available

18

Husqvarna 588072003

SHIELD SHIELD, FUEL TANK HUSQ

$

$

Not available

19

Husqvarna 588070701

CLIP P-CLIP, .500 INSULATED

$

$

Not available

20

Husqvarna 588069401

HOSE HOSE, FUEL 1/4" X 32.75"

$

$

Not available

21

Husqvarna 588069402

HOSE HOSE, VAPOR 3/16" X 56.00

$

$

Not available

22

Husqvarna 588066601

BUMPER BUMPER GROMMET .125 X .

$

$

Not available

23

Husqvarna 592906801

GROMMET GROMMET 2 WAY 04815500

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 588068803

GROMMET GROMMET, VITON

$29.99

$

Usually ships in 3-10 days

0

25

Husqvarna 588067602

CLAMP CLAMP-HOSE, SPRING .188

$

$

Not available

26

Husqvarna 588067601

CLAMP CLAMP, FUEL LINE

$

$

Not available

27

Husqvarna 592781501

STRIP RUBBER D28159

$

$

Not available

28

Husqvarna 592762501

BUSHING .364X.540X.700Y BUSHIN

$

$

Not available

29

Husqvarna 592906901

BUSHING .687 X .875 X .56

$

$

Not available

30

Husqvarna 592771101

CABLE CABLE TIE .19 X 14.4 967

$

$

Not available

31

Husqvarna 592728401

CABLE TIE, .15 X 8.50 111910

$

$

Not available

32

Husqvarna 592907001

VALVE VALVE 2 WAY 04815400

$29.99

$

Usually ships in 3-10 days

0

33

Husqvarna 588067302

CAP CAP, FUEL NONVENT, AUTOLOC

$77.99

$

Usually ships in 3-10 days

0

34

Husqvarna 588068601

FITTING FITTING, TANK

$

$

Not available

35

Husqvarna 592817001

SERVICE PARTS SYSTEM BOLT-RDHD

$

$

Not available

36

Husqvarna 588010604

BOLT BOLT RDHDSQNK .31-18X.75

$

$

Not available

37

Husqvarna 588064724

BOLT BOLT RDHDSQNK .31-18 X 1.

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 588064707

BOLT BOLT HEX .38-16 X .75 GR5

$

$

Not available

39

Husqvarna 588064708

BOLT BOLT HEX .38-16 X 1.00 GR

$7.49

$

Usually ships in 3-10 days

0

40

Husqvarna 588064703

BOLT BOLT HEX .25-20X.75 GR5 Y

$

$

Not available

41

Husqvarna 588064718

BOLT BOLT HEX M8 X 1.25 X 14

$

$

Not available

42

Husqvarna 588071602

SCREW SCREW, MCH 10-24 X .75 H

$

$

Not available

43

Husqvarna 588070601

NUT NUT, 10-24 KEPS

$

$

Not available

44

Husqvarna 592818901

SERVICE PARTS SYSTEM NUT-PANEL

$

$

Not available

45

Husqvarna 592819501

SERVICE PARTS SYSTEM NUT-LK-NY

$

$

Not available

46

Husqvarna 592819601

SERVICE PARTS SYSTEM NUT-SPNLK

$8.49

$

Usually ships in 3-10 days

0

47

Husqvarna 592819701

SERVICE PARTS SYSTEM NUT-LK-NY

$

$

Not available

48

Husqvarna 501099801

NUT NUT, 3/8-16 NYLON LOCK ARI

$5.99

$

Usually ships in 3-10 days

0

49

Husqvarna 588073221

WASHER WASHER, LK-E X T.326 X

$

$

Not available

50

Husqvarna 588073219

WASHER WASHER, LK .38 X .094 R

$

$

Not available

51

Husqvarna 588073210

WASHER WASHER, FL-STL .406 X .

$8.49

$

Usually ships in 3-10 days

0

52

Husqvarna 592907101

SERVICE PARTS SYSTEM WASHER .3

$

$

Not available
