W 552 (967657801) - Husqvarna 52" Walk-Behind Mower (2017-10) MOWER DECK / CUTTING DECK Parts Diagram

52" Walk-Behind Mower

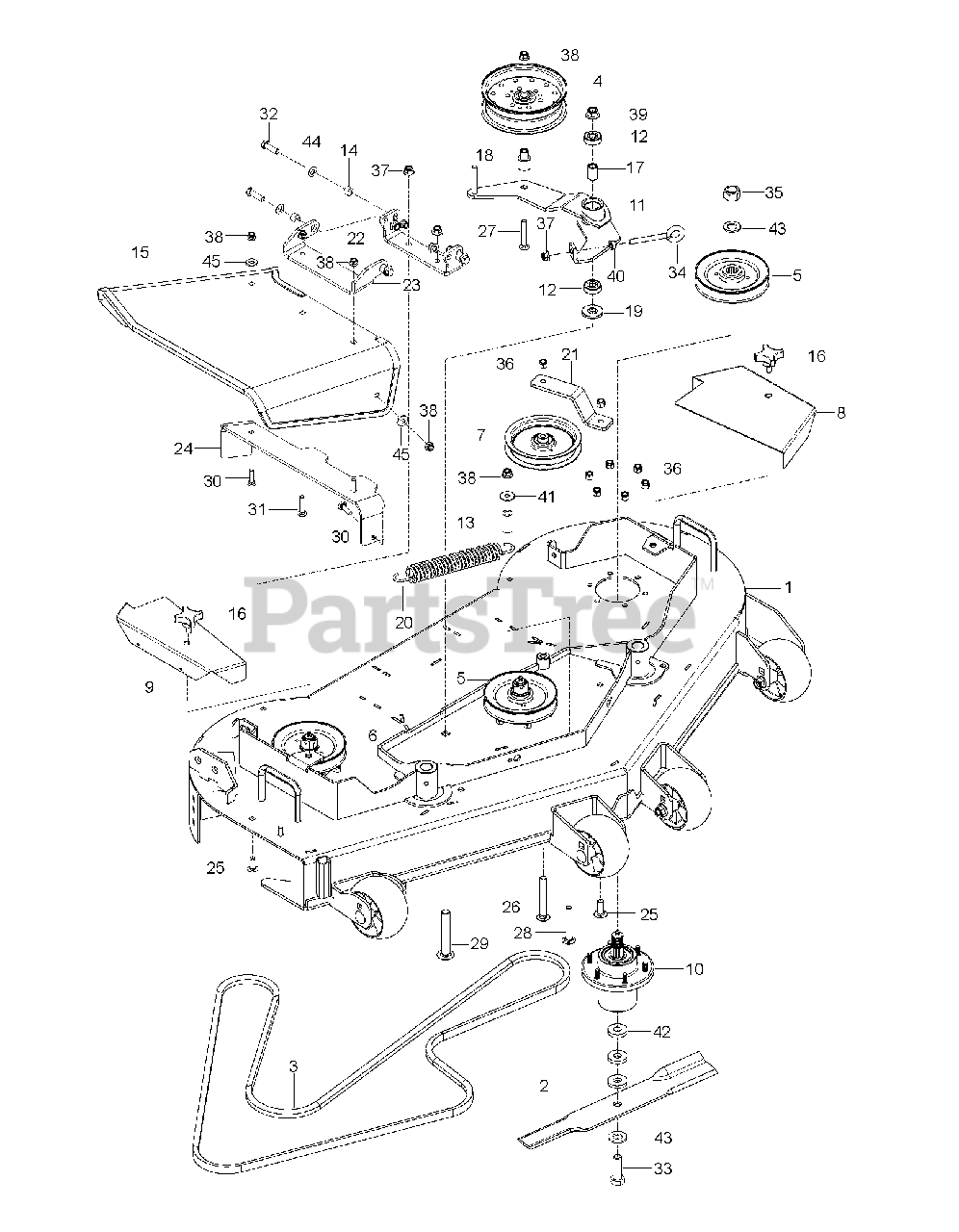

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

2

Husqvarna 591492302

Blade, 18 X .80 LI

$68.99

$

Usually ships in 3-10 days

0

3

Husqvarna 592728502

BELT HB 131.0 EL AMD 181711

$170.99

$

Usually ships in 3-10 days

0

4

Husqvarna 592774801

Flat Idler Pulley, 6.00 X .635

$113.99

$

Usually ships in 3-10 days

0

5

Husqvarna 592775301

PULLEY SPINDLE 5.75 X .25 7344

$79.99

$

Usually ships in 3-10 days

0

6

Husqvarna 592775201

PULLEY SPINDLE 5.75 X .76 7344

$74.99

$

Usually ships in 3-10 days

0

7

Husqvarna 592774901

PULLEY FLAT IDLER 5.00X.75 733

$102.99

$

Usually ships in 3-10 days

0

8

Husqvarna 592770302

SHIELD LH SPINDLE 52 FLWLK 511

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 592770102

SHIELD RH SPINDLE 52" FLWLK 51

$22.99

$

Usually ships in 3-10 days

0

10

Husqvarna 592770701

Spindle Housing Assembly

$683.99

$

Usually ships in 3-10 days

0

11

Husqvarna 592773101

ARM IDLER ARM 48 FLWLK WLDMT 4

$193.99

$

Usually ships in 3-10 days

0

12

Husqvarna 592773901

BALL BEARING .500X1.38X.437 BA

$96.99

$

Usually ships in 3-10 days

0

13

Husqvarna 592774101

BUSHING BSHG-SLV .500X.750X1.5

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 588227201

BUSHING BUSHING, SLV

$

$

Not available

15

Husqvarna 588067501

CHUTE CHUTE, DISCHARGE RUBBER

$205.99

$

Usually ships in 3-10 days

0

16

Husqvarna 588069901

KNOB KNOB, 3/8 -16 X .75

$5.99

$

In Stock, only 1 left!

0

17

Husqvarna 592779401

SPACER .510 X .75 X 1.1485 935

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 592769901

SPACER IDLER 4870200

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 592769301

SPACER IDLER ARM 4714600

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 592776001

SPRING SPRING EXTENSION .170X1

$34.99

$

Usually ships in 3-10 days

0

21

Husqvarna 592763701

STRAP IDLER 48/52 WALK 3856447

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 592770001

BRACKET DISCHARGE PIVOT 510144

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 592907301

Discharge Mounting Bracket, LH

$56.99

$

Usually ships in 3-10 days

0

24

Husqvarna 592907501

BRACKET BRACKET DISCHARGE 0478

$102.99

$

Usually ships in 3-10 days

0

25

Husqvarna 588064721

BOLT BOLT RDHDSHSQNK .38-16 X

$

$

Not available

26

Husqvarna 592817501

Round Head Bolt

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 592817901

Round Head Bolt

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 592818001

Round Head Bolt

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 592817601

Round Head Bolt

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 588064723

BOLT BOLT RDHDSQNK .31-18 X 1.

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 588064724

BOLT BOLT RDHDSQNK .31-18 X 1.

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 501101301

BOLT BOLT 3/8-16X1-1/4 HEX HEA

$6.99

$

In Stock, only 1 left!

0

33

Husqvarna 588064717

BOLT BOLT HEX .62-11 X 2.00 G

$7.99

$

In Stock, Qty 8

0

34

Husqvarna 592818301

Eye Bolt

$34.99

$

Usually ships in 3-10 days

0

35

Husqvarna 588070301

LOCK NUT LOCKNUT, 3/4-16 CROWN

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 501099801

NUT NUT, 3/8-16 NYLON LOCK ARI

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 588070610

NUT NUT, LK-NYL-FLG .38-16 YWZ

$7.99

$

Usually ships in 3-10 days

0

38

Husqvarna 588070609

NUT NUT, LK-NYL-FLG .31-18 YWZ

$

$

Not available

39

Husqvarna 588070611

NUT NUT, LK-NYL-FLG .50-13 YWZ

$7.99

$

In Stock, only 1 left!

0

40

Husqvarna 592819201

NUT .375-16 WHIZ LOCK FLANGE

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 588073207

WASHER WASHER, FL-STL .375 X 1

$

$

Not available

42

Husqvarna 588073213

WASHER WASHER, FL-STL .630 X 1

$9.49

$

Usually ships in 3-10 days

0

43

Husqvarna 588073201

WASHER WASHER, .75 X 1.3125 X

$7.99

$

In Stock, only 2 left!

0

44

Husqvarna 588073210

WASHER WASHER, FL-STL .406 X .

$7.99

$

Usually ships in 3-10 days

0

45

Husqvarna 588073208

WASHER WASHER, FL-STL .38 X .8

$

$

Not available

Husqvarna 590900401

Mulch Kit

$355.99

$

Usually ships in 3-10 days

0
