W-839 R (12AV839R090) - White Outdoor 21" Walk-Behind Mower (2007) Drive & Tires Parts Diagram

21" Walk-Behind Mower

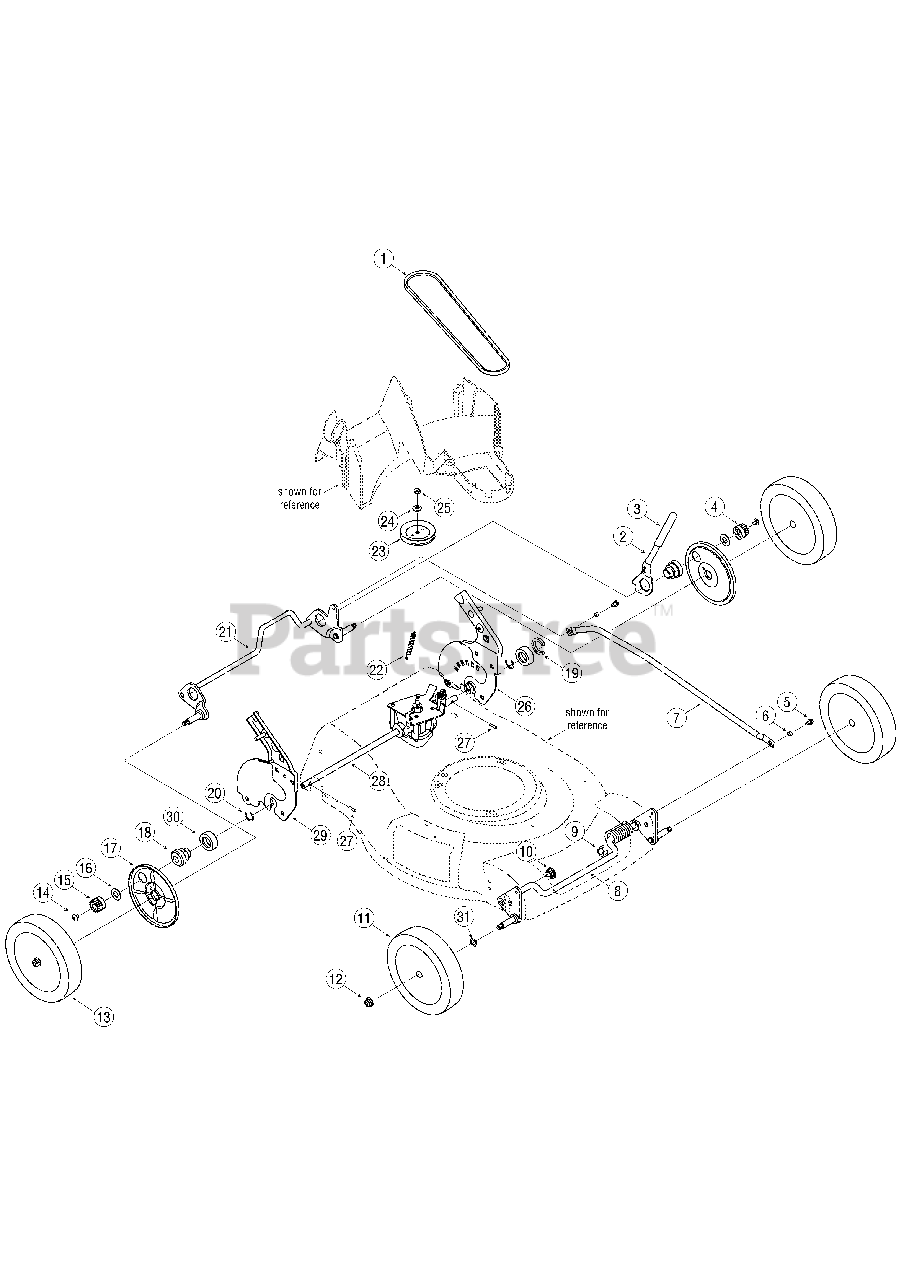

Drive & Tires Parts Diagram

  • Title

1

White Outdoor 754-04093

V-Belt
(Superseded to 954-04093)

$22.99

$

In Stock, only 2 left!

0

2

White Outdoor 732-04338

Spring Lever
(Superseded to 732-04338C)

$

$

Not available

3

White Outdoor 720-0230

Foam Grip

$7.99

$

In Stock, only 2 left!

0

4

White Outdoor 717-04184A

Spur Gear, 14T - LH
(Superseded to 917-04184C)

$10.99

$

In Stock, only 3 left!

0

5

White Outdoor 710-0599

TT Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 750-04305A

Spacer
(Superseded to 738-04278)

$7.49

$

Usually ships in 3-6 days

0

7

White Outdoor 749-04267A

Cross Bracket
(Superseded to 749-04267A-0637)

Variations

White Outdoor 749-04267A-0637

Cross Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 687-02204

Front Bracket Assembly
(Superseded to 687-02204B)

Variations

White Outdoor 687-02204-0637

Front Bracket Assembly Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

9

White Outdoor 731-05470

Clip Spacer

$5.49

$

In Stock, Qty 12

0

10

White Outdoor 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 15

0

11

White Outdoor 734-04033

Front Wheel
(Superseded to 753-08091)

$49.99

$

In Stock, Qty 9

0

12

White Outdoor 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 634-04207D

Rear Wheel
(Superseded to 753-08092)

$47.99

$

In Stock, Qty 14

0

14

White Outdoor 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 12

0

15

White Outdoor 717-04192A

Spur Gear, 14T - RH
(Superseded to 917-04192C)

$7.99

$

In Stock, only 2 left!

0

16

White Outdoor 736-3084

Flat Washer

$5.49

$

In Stock, Qty 20+

0

17

White Outdoor 782-7551A

Wheel Dust Cover

$5.49

$

In Stock, Qty 14

0

18

White Outdoor 748-04159

Transmission Bearing Support
(Superseded to 948-04159)

$

$

Not available

19

White Outdoor 750-04317

Clip Spacer

$4.49

$

In Stock, Qty 5

0

20

White Outdoor 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

21

White Outdoor 687-02314

Rear Bracket Assembly
(Superseded to 687-02314A-0637)

Variations

White Outdoor 687-02314-0637

Pivot Bracket Assembly, Rear - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

22

White Outdoor 732-0320

Extension Spring
(Superseded to 932-0320)

$10.99

$

In Stock, only 3 left!

0

23

White Outdoor 756-04237

Pulley, 3.36 OD
(Superseded to 756-04237A)

Note: Double D Hole

$18.99

$

Usually ships in 3-6 days

0

24

White Outdoor 736-0105

Bell Washer, .375 x .870 x .063

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-04063

Hex Lock Nut, 5/16-16

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 687-02205

Handle Bracket Assembly LH
(Superseded to 753-05861)

Note: use with 787-01341A Deck

Variations

White Outdoor 687-02205-0637

KIT-SERVICE REPLAC - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 687-02205-0638

BRACKET ASSY:LH - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

26

White Outdoor 687-02320

Handle Bracket Assembly LH

Note: use with 787-01591 Deck

Variations

White Outdoor 687-02320-0637

Handle Bracket Assembly - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

27

White Outdoor 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 618-04492

Transmission Assembly
(Superseded to 918-04492A)

$170.99

$

Usually ships in 3-6 days

0

29

White Outdoor 687-02206

Handle Bracket Assembly RH
(Superseded to 753-05862)

Note: use with 787-01341A Deck

Variations

White Outdoor 687-02206-0637

BRACKET ASSY - POWDER BLACK (0637)

$

$

Not available

White Outdoor 687-02206-0638

BRACKET ASSY-HANDLE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

White Outdoor 687-02321

Handle Bracket Assembly RH

Note: use with 787-01591 Deck

Variations

White Outdoor 687-02321-0637

BRACKET ASSY-HANDLE - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

30

White Outdoor 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 9

0

31

White Outdoor 736-0504

Washer, Wave, .510 x .750 x .017
(Superseded to 936-0504)

$4.99

$

In Stock, only 2 left!

0
