W (990389) - Simplicity Two-Wheeled Tractor Engine Base & Pulleys Group (3643I01) Parts Diagram

Two-Wheeled Tractor

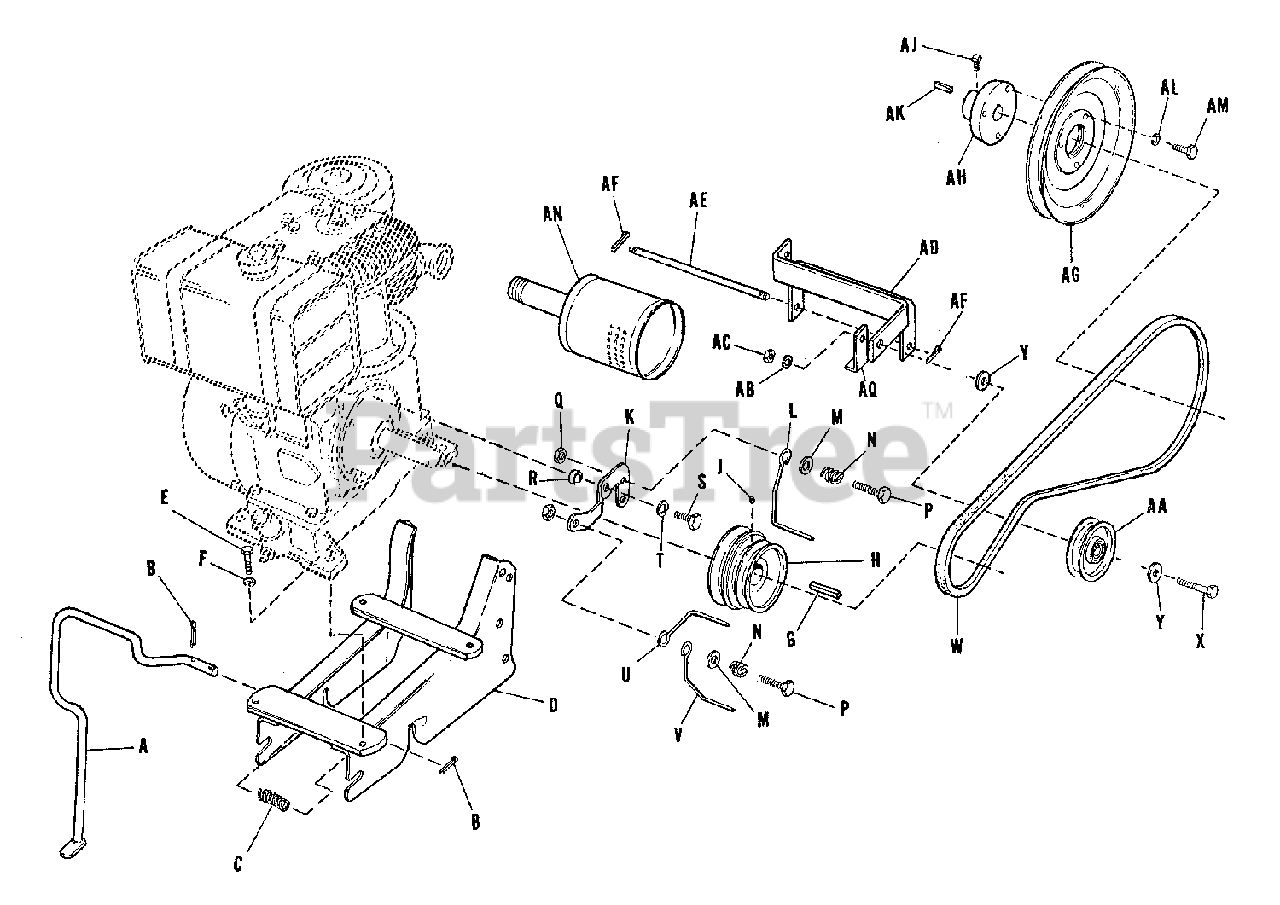

Engine Base & Pulleys Group (3643I01) Parts Diagram

  • Title

A

Simplicity 155025

STAND ASSEMBLY

$

$

Not available

B

Simplicity 2722006

PIN, Cotter, 1/8" Diameter x 1" LG

$

$

Not available

C

Simplicity 2152006SM

SPRING, Stand

$8.49

$

Usually ships in 2-12 days

0

D

Simplicity 155034

BASE ASSEMBLY, Engine

$

$

Not available

E

Simplicity 2705016

CAPSCREW, Hex Head, 3/8"-16 NC x 1-1/4" LG

$

$

Not available

F

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

G

Simplicity 2159129

KEY

$

$

Not available

H

Simplicity 155021

PULLEY, Engine

$

$

Not available

J

Simplicity 2713503

SCREW, Set, Cup Point, 5/16"-18 NC x 5/16" LG

$

$

Not available

K

Simplicity 8061088

HOLDER, Belt Stop

$

$

Not available

L

Simplicity 8021073

STOP, Belt

$

$

Not available

M

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

N

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

P

Simplicity 2705019

CAPSCREW, Hex Head, 5/16"-18 NC x 1-1/4" LG

$

$

Not available

Q

Simplicity 2717011

NUT, Hex, Jam, 5/16"-18 NC

$

$

Not available

R

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 4 left!

0

S

Simplicity 2705007

CAPSCREW, Hex, Head, 5/16"-18 NC x 1" LG

$

$

Not available

T

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

U

Simplicity 8061089

STOP, Belt

$

$

Not available

V

Simplicity 8021073

STOP, Belt

$

$

Not available

W

Simplicity 2155004

BELT, "V" 48"

$

$

Not available

X

Simplicity 2705010

CAPSCRW, Hex Head, 3/8"-16 NC x 1-3/4" LG

$

$

Not available

Y

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

AA

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

AB

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

AC

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

AD

Simplicity 155023

PIVOT ASSEMBLY, idler

$

$

Not available

AE

Simplicity 105140

ROD, Pivot

$

$

Not available

AF

Simplicity 2722005

PIN, Cotter, 3/32" Diamerter x 7/8" LG

$

$

Not available

AG

Simplicity 155017

PULLEY, Transmission 8"

$

$

Not available

AH

Simplicity 105205

HUB, Pulley

$

$

Not available

AJ

Simplicity 2713504

SCREW, Set, Square head, 5/16-18 NC x 3/8" LG

$

$

Not available

AK

Simplicity 2805850SM

KEY, Transmission Pulley

$2.49

$

Usually ships in 2-12 days

0

AL

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

AM

Simplicity 2705001

CAPSCREW, Hex Head, 5/16"-18 NC x 7/8" LG

$

$

Not available

AN

Simplicity 2157634SM

MUFFLER, Exhaust

$

$

Not available

AP

Simplicity 2154378SM

NUT, Lock

$6.99

$

Usually ships in 2-12 days

0

AQ

Simplicity 8021121

STOP

$

$

Not available
